Hangzhou Darhor Technology Co., Limited >> China Acrylic Flow Meter, Variable Area Acrylic Rotameters, Acrylic Meter

China Acrylic Flow Meter, Variable Area Acrylic Rotameters, Acrylic Meter

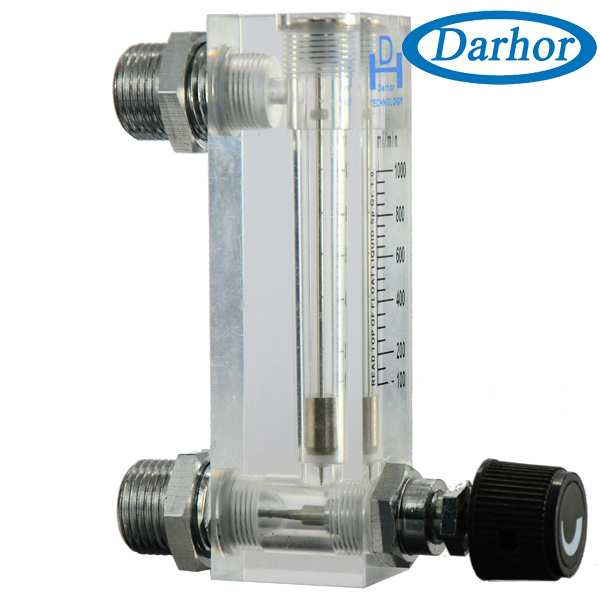

Name: China Acrylic Flow Meter, Variable Area Acrylic Rotameters, Acrylic Meter
Brand: china-manufacturer-directory.com
SKU: 686151282
Availability: InStock
Rating: 4.3 (106 reviews)

Supplier:	Hangzhou Darhor Technology Co., Limited
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DFG-4T6T8T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Material:	Acrylic
Installation:	Panel Mount
O-Ring:	Silicon Rubber or Fluorin Rubber
Float Material:	Ss
Sensor:	Tube/Flange
Type:	Variable Area Flow Meter
Accuracy:	>?à1%
Measuring Media:	Gas
Principle:	Variable Area Type
Measuring Principle:	Mechanics
Size:	DN10-50

Product Description

One piece machined and polished acrylic meter body.
Annealed for added strength and chemical resistance.
Acceptable for outdoor installations (direct sunlight okay)
Bulkhead nuts attach directly to inside panel.
Available adjustable valve (flow control) easy to assemble.

With value	Value	Fitting	Float	O-ring
T- with O- No	Brass Ss	1 ABS 2.PP 3.PVC 4.Brass 5.Brass chromeplate 6.SS	Ss Acrylic Agate ball PTFE	1-Silicon rubber 2-Fluorin rubber 3-Butyl

Model	Measure Range		Screw thread	Accuracy
	ml/min (Liquid)	l/min (Gas)
DFG-4T	6-60 8-80 40-400	0.2-2 1-12	direct6	+4%
DFG-6T	25-250 16-160 80-400 100-500 100-600 200-800 100-1000	0.1-0.8 0.1-1.5 0.3-3 0.4-4 0.5-8 1-5 1-12 2-10 2-20 3-15 3-30 4-20 5-25 6-30 10-60 20-70 0.05-0.25M3/H	G1/4" 1/4"BSP
		0.04-0.4M3/H	tube
DFG-8T	2.5-25LPH 4-40LPH 6-60LPH	0.16-1.6M3/H 0.1-1M3/H 0.2-2M3/H	G1/4" 1/4"BSP

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
