Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
High Strength Lab Jaw Crusher |
| Object: |
Coal |
| Tongs' Features: |
Adjustable Tongs |
| Drive: |
Electric |
| Application: |
Laboratory, Nonferrous Metal, Metallurgy |
| Crushing Degree: |
Intermediate Crusher |
| Type: |
Jaw Crusher |
| Crushing Style: |
Grinding and Impact |
Product Description

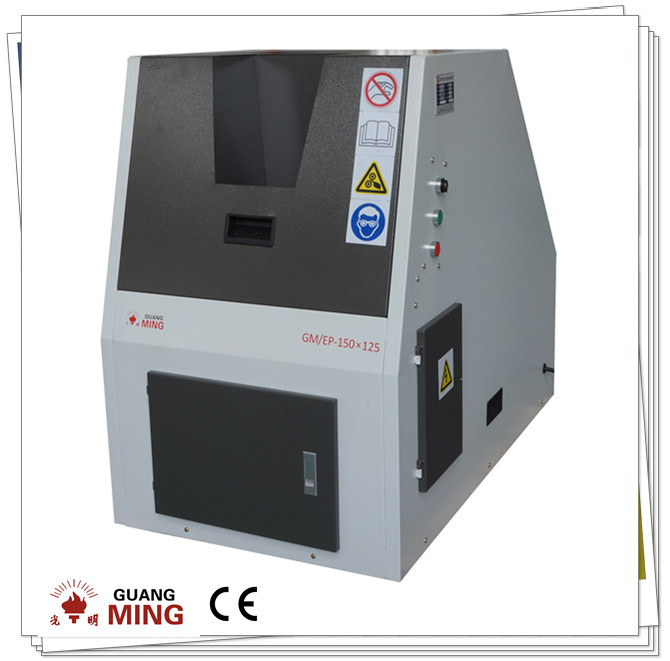

China CE certificate jaw crusher used in laboratory for sample preparation
Highlight of the Jaw Crusher:
*Safe enclosed frame, reduce dust greatly;
*Special made high strength jaw plat not pollution to sample;
*Compact laboratory sizede sign;
*Uniform discharge size, stable performance;
TYPICAL APPLICATIONS:
This machine is used for crushing high hardness ores or other solid material for component analysis continuously or intermittently.
The unit is especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
ADVANTAGES:
1. Adopting special technology and material, it especially suitable for crushing high strength alloy material.
2. The jaw plate is made of high strength material which has good abrasive resistance and will not pollute the sample.
3. The crusher has the advantages such as: Even discharging size, smooth running, easy adjustment and long service life.
4. The machine frame is made of the cast steel after heating treatment.
5. Removable shell which is convenient for daily maintenance and inspection of the machine.
6. Mechanical-electrical integrated controlling makes the machine is easy to operate.
7. Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.
8. Total electro-static coating surface which makes good appearance and easy to clean.
9. It can work normally on the flat ground without fixing any base.
Working principle:
After starting the motor, triangle belt and motor belt wheel will drive the belt wheel and eccentric shaft to rotate, the movable jaw and movable jaw plate will do periodic movement, when the material passes through the no-rebound hopper and enters into crushing chamber, then the movable jaw plate and fixed jaw plate crush the material by friction.
Product structure:
Machine Frame, Motor, Belt wheel of motor, Triangle belt, Belt wheel, Bearing pedestal, Eccentric shaft, Oil nipple, Bearing cover, Bearing, Weight wheel, Side plate, Movable jaw, Movable jaw plate, Fixed jaw plate, Reserved sample drawer, Supporting plate, Adjusting wedge, Wedge, Adjusting screw rod, Spring, Adjusting bolt.
Usage and maintenance:
Before starting the machine
*Check the lubrication status of the bearings, and make sure the driving parts and the joints of support parts are applied enough grease;
*Make sure all fasteners are properly tightened;
*Check whether the triangle belt is good, please replace it if any damage. And make sure both the belt and belt wheel are clean without any grease dirt;
*Make sure the crushing chamber is clean without any mineral or other material;
*Make sure all protective device are in good condition, and eliminate the unsafe hidden dangers;
Trial running of crusher:
*Start the equipment only if the whole machine are confirmed in good condition after inspection;
*The equipment is only allowed to be started without loading;
*Make trial start, and make sure the belt wheel rotation direction as the same as the signs on the shell;
*Till the equipment is running smooth, then feed the material to start crushing;
*After starting, if there is any abnormal situation, please stop the machine immediately; find out the cause and repair, then restart the machine;
Other picture of the jaw crusher:
|
Environment friendly high strength jaw crusher |
|
Model No. |
GM/EP-100× 60H |
GM/SP-100× 60H |
GM/SP-100× 100H |
GM/EP-150× 125H |
GM/EP-250× 150H |
|
Feeding entrance size(mm) |
100× 60 |
100× 60 |
100× 100 |
150× 125 |
250× 150 |
|
Feeding size(mm) |
≤ 45 |
≤ 48 |
≤ 80 |
≤ 100 |
≤ 200 |
|
Discharging size (mm) |
3-10 |
0.2-15 |
0.2-20 |
6-38 |
10-40 |
|
Handling capacity(kg/h) |
500 |
12-720 |
20-1030 |
50-1200 |
1000-3000 |
|
Working power supply (V) |
380 |
380 |
380 |
380 |
380 |
|
Dimension (mm) |
1000× 550× 740 |
981× 530× 750 |
981× 530× 830 |
1150× 710× 985 |
1670× 800× 1050 |
|
Motor power(kw) |
2.2 |
2.2 |
3 |
5.5 |
11 |
|
Total weight (kg) |
186 |
330 |
400 |
585 |
950 |
GUANGMING has more than 30 years experience of seeking for the development of sample analysis equipments, and we are specializing in design, research and manufacture the sample preparation and testing machine and always in the lead of technology and market. Our main products are crushing machines, combined sample preparation machines, screening machines, dusters, electrical heating machines, calorimeters and analyzers.
GUANGMING occupies more than 60ares, which includes 18, 000 square meters of production workshops, 3800 square meters of technical center, and 2300 square meters of staff dining room, basketball playground and entertainment place and so on. We have hundreds of employees, and most of them are professional technicians.
To strengthen our industrial advantages, GUANGMING insists on the business concept of "Independent Innovation, Prospering the company through science and technology" and invests lots of money for developing the new products. To satisfy our customers, we pay attention to every details and every process, at the same time, our company also keeps close contact with several scientific research departments, who will take response and give advice to the improvement of products in time.
We also carry out a strict quality management system which is in accordance with ISO9001: 2000. Most of our products have gained the unit recommendation of China Coal Department and Coal Science College. Our General Manager, Ms. Wenli He, has been employed as the technical member of National Standard Technical Committee.
Our products have covered each provinces of China and exported to many other countries like Australia, India, Philippe and Indonesia and so on and received high reputation both at home and abroad.
