China Diesel Genset With Weichai Engine
Weichai diesel genset consist of Weichai diesel generator and engine. Small volume, strong power, safe and reliable. It's can provide perfect after-sales service and sufficient spare parts. Our company is a professional manufacture of generator set. We can provide our customer diesel generator set, gas genset, power generator, mobile trailer genset, silent generator set, biogas genset. We also support all kings of genset brands such as Cummins diesel genset, mtu genset, perkins diesel generator set

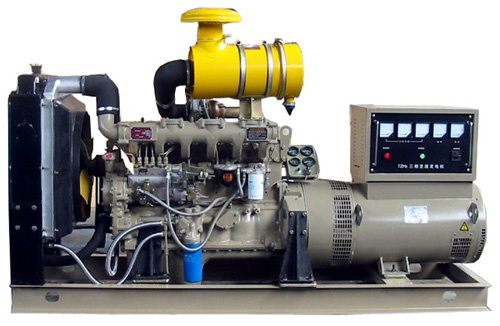

Weichai (275kVA) Diesel Generator Set
Genset Model: BWX275
1. Diesel Generator Set
Prime Output: 200KW / 250kVA
Standby Output: 220KW / 275kVA
Rated Speed: 1500rpm
Rated Currant: 361A
Rated Voltage: 400V/230V
Dimension (mm): 2887*965*1566
Genset Weight (KG): 2500
Standard: GB/T2820-1997
2. Egine Specification
Brand: Weichai
Model No.: WD618.42D
Type: 4-Stroke, in Line, Water-Cooled
Cylinder No.: 6
Bore*Stroke: 126*155
Displacement (L): 11.596
Min Fuel Consumption(g/kwh): ≤ 197
Min Oil Consumption(g/kwh): ≤ 0.5
3. Alternator
Brand: Engga
Model No.: EG280L-200N
Exciting Way: Brushless, AVR
Short-circuit Current: 300%(3In): 10s
Rated Power/Capacity: 200KW / 250kVA
Insulation Class: H
Protection Class: IP21
THF: <2%
Rated Temperature-rise: 125º F
4. Control System
Brand: Deepsea
Model: DSE5110
Capacity: Over-speed, high water temperature, low oil pressure, start failure, hand start control, distal start control and ect.
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
