Product Specifications
| Prod Model: |
FV40C/3-320S |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gray |
| Protection Mode: |
L1, L2, L3-PE |
| Speed: |
<25ns |
| Function: |
Surge Protection for Power System in AC Side |
| No. Of Poles: |
3poles |
| OEM&ODM: |
Welcome |
| Uc: |
320V AC |
| Imax: |
80ka |
| In: |
40ka |
Product Description

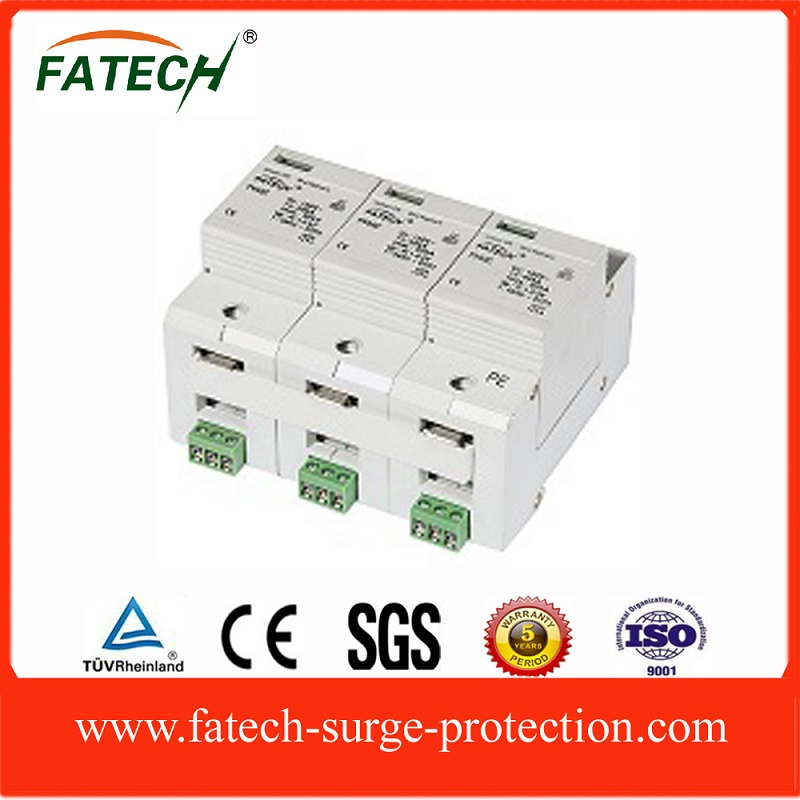

AC SPD FV40C/3-320S is for low-voltage power supply 320V, Imax 80kA, 3poles.
1. Surge protective device for low-voltage power system Characteristic FV40C/3-320S
-Class II / Type 2 surge protective device.
-Consisting of a base part and 3 MOV plug-in protection modules.
-For using in the lightning protection zones concept at boundary 1-2.
-The core parts are metal oxide vristor components with high discharge capacity.
-Low residual voltage and quick response
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L1, L2, L3-PE
2. FV40C/3-320S surge protective device are suitable for lightning and surge protection in AC 50/60Hz, 220/380V.
3. APPLICATION of surge protective device FV40C/3-320S:
AC power line of house, bank, telecom tower and so on.
4. Surge protective device for low-voltage power system Certificate:
CE-LVD
We also can supply more of product for low--voltage power system lightning protection, surge protective device with Imax=60kA, 100kA. And type B SPD with spark gap.
If you are interested in, please feel free contact to me!
| Model No.: FV40C/3-320S | | | |
| Max. continuous AC voltage | Uc | V | 320 |
| Requirement class to DIN EN 61643-1: 2005 | | | Class C |
| Nominal Discharge current(8/20μ s) | In | kA | 40 |
| Max. discharge current (8/20μ s) | Imax | kA | 80 |
| Voltage protection level (at In) | Up | kV | <=2.0 |
| Response time | tA | ns | 25 |
| Operation temperature range | | | -40 ~ +85degree |
| Degree of protection | | | IP20 |
| Remote control contacts | | | Yes |
