Shenzhen Arronna Telecom Co., Ltd. >> China Factory-2014 New Product 1800-2600MHz 11dBi Huawei B593 Router External 4G Lte Antenna

China Factory-2014 New Product 1800-2600MHz 11dBi Huawei B593 Router External 4G Lte Antenna

Name: China Factory-2014 New Product 1800-2600MHz 11dBi Huawei B593 Router External 4G Lte Antenna
Brand: china-manufacturer-directory.com
SKU: 732522465
Availability: InStock
Rating: 4.6 (24 reviews)

Supplier:	Shenzhen Arronna Telecom Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ARP-DP(1800-2600)-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM/MOQ:	500PCS
Type:	2014 New Product
Packing Size:	53X38X47cm
Packing Type:	12PCS/Carton
Usage:	Communication Antenna
Directionality:	Directional Antenna
Operating Wavelength:	Microwave
VSWR:	<1.5
Material:	Steel Plate

Product Description

ARW-DP(1800-2600)-11, microwave LTE Antenna is specially designed for 1800-2600MHz, dual frequency cellular mobile communication and WLAN wireless network indoor bestrew system. It features wide bendwidth, share with GSM, CDMA and WLAN system.

1. Designed for wireless access system, Point-to-point sent and receive signal
2. Good standing wave performance
3. Big F/B ratio, 1800-2600
4. OEM and ODM antenna are available

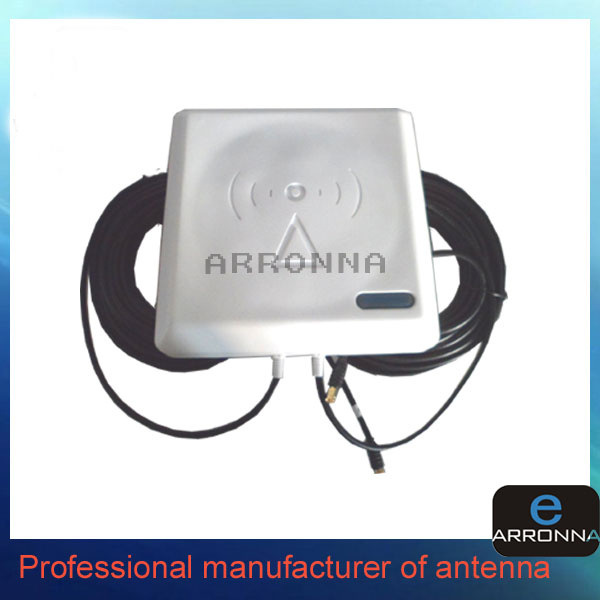

Product Name	LTE 1800-2600MHZ MIMO Panel antenna
Description	ARW-DP(1800-2600)-11: The LTE Panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation.
Electric Specification
Model NO	ARW-DP(1800-2600)-11
Frequency Range-MHz	1800-2600
Bandwidth-MHz	800
Gain-dBi	11
Horizontal Bear width-°	65
Vertical Bear width -°	30
F/B-DB	≥20
VSWR	≤1.5
Input Impedance -Ω	50
Polarization	Vertical and horizontal
Maximum Power -W	50
Connector	2*SMA male or customized
Mechanical Specifications
Weight-kg	1.5
Antenna Dimensions-mm	21021050

Shenzhen Arronna Telecom Co., Ltd. was founded in 2007, mainly offer antenna OEM & ODM service for clients, mainly sector antenna, panel antenna, yagi antenna, fiberglass omni antenna at MIMO / LTE / WIMAX / WiFi / 3G / DECT / WLAN/ CDMA antennas. Shenzhen Arronna Antennas Co., Limited is an integrated high-tech company owning strong ability on R&D, production and selling. Welcome you to learn more about us.

Now ARRONNA owns more than 3, 000 square meters production area, about 80 staff (tech dept 6people, QC 6, the 40% staff has college background), 6 production line, more than 100 types of products covering frequency from 88MHz to 5.8GHz and these products has covered the following field such as WiFi / WIMAX wireless communication system, wireless data transmitting system, global position system, digital TV system and civil use. Now our products already work with 3G Telecom System, WiFi/WiMAX Telecom System, HUAWEI CPE and successfully worked with China MOBILE, GLOBE TELECOM and defeated many competitors to enter EU market, South-east Asia market and Asian Market.

Since founded, ARRONNA has developed fast by the clients' support! We strictly follow ISO9001: 2008 quality system to improve the architect and management style, and also use ISO14001: 2004 system to regulate and arrange production process. If we promise, you have my word! That is ARRONNA's motto! Hereby, ARRONNA sincerely welcome you visit our factory and give us your precious opinion, ARRONNA look forward to working with you soon!
