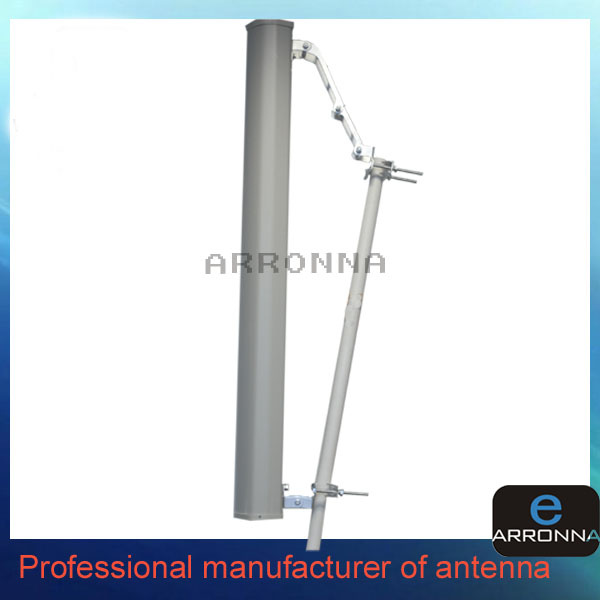

China Factory-698-2700MHz Long Rang Base Station Lte Vertical Polarization Antenna

Name: China Factory-698-2700MHz Long Rang Base Station Lte Vertical Polarization Antenna
Brand: china-manufacturer-directory.com
SKU: 732365805
Availability: InStock
Rating: 4.9 (62 reviews)

Supplier:	Shenzhen Arronna Telecom Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ARP-DF(698-2700)-11/14
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1000289132
Cover Material:	PVC
Usage:	Communication Antenna
Directionality:	Directional Antenna
Operating Wavelength:	Ultra-short Wave
VSWR:	<1.5
Material:	Steel Plate

Product Description

1. Frequency rang-MHz: 698-960/1710-2700MHz
2. Bandwidth-MHz: 262/990
3. Gain: 11/14DBI
4. Horizontal Bear width-° 65/75
5. Vertical Bear width -° 35/18
6. F/B Ratio 17
7. VSWR ≤ 1.8

Product Name	698-960/1710-2700MHz single polarization LTE antenna
Description	ARP-DF(698-960/1710-2700)-11/14: The LTE panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof.
Electric Specification
Model NO	ARP-DF(698-960/1710-2700)-11/14
Frequency Range-MHz	698-960/1710-2700
Bandwidth-MHz	262/990
Gain-dBi	11/14
Horizontal Bear width-°	65/70
Vertical Bear width -°	35/18
F/B Ratio	17
VSWR	≤1.8
Input Impedance -Ω	50
Polarization	Vertical
Maximum Power -W	100
Connector	N
Mechanical Specifications
Dimensions-mm	1000289132
