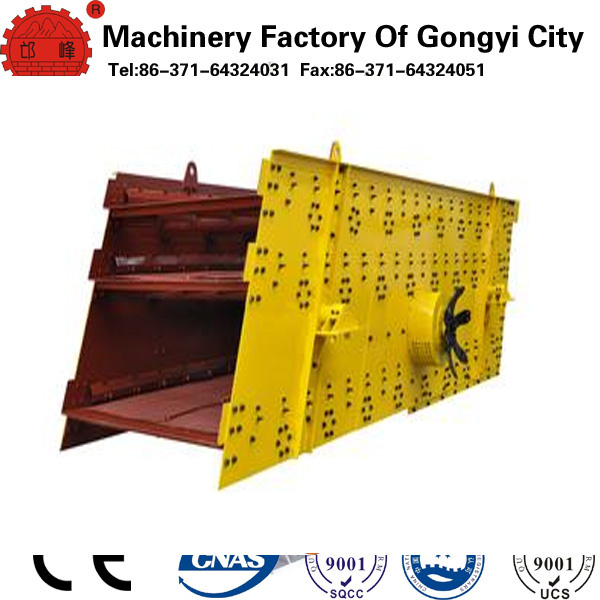

Circular Vibrating Screen
It is used to separate the different sizes of the final products in a crushing and screening plant. When the material is fed to the screen the undersizes passes through the screening surface while it moves on the screen by the vibration generated by vibration mechanism. The vibrating screens are avilable with two, three or four decks and in different sizes and capacities.
The vibration mechanism is located at centre of screen body or above the screen body. The vibration is created by the eccentric weights rotating on a shaft held in the screen frame. The screen body is supported on the stationary or mobile main chassis by heavy duty suspension springs which assist vibrating.
Advantage:
High availability and operational reliability is the result of a highly developed design and quality standard
Low noise level with grease lubricated circular drive units which run extremely quiet and are of a stable design with low harmonic oscillation
Quick changing of screen mats and of the specially developed removable names, to allow lengthwise tensioning using simple screw connections
Dust seals are available as a options for all screens
High acceleration rate to ensure optimum screening
Technical Parameters of Circular Vibrating Screen
Model | Layer | Screening surface area (m2) | Screening pore size (mm) | Feeeding grain size (mm) | Capacity (t/h) | Double Amplitude (mm) | Motor |
| Model | Power (kw) | Rev (r/min) |
| YK1236 | 1 | 4.3 | 1-100 | 300 | 240 | 8 | Y160L-8 | 7.5 | 720 |
| 2YK1236 | 2 |
| YK1536 | 1 | 5.4 | 1-100 | 300 | 300 | 8 | Y180L-8 | 11 | 730 |
| 2YK1536 | 2 |
| YK1542 | 1 | 6.3 | 1-100 | 300 | 360 | 8 | Y180L-8 | 11 | 730 |
| 2YK1542 | 2 |
| YK1548 | 1 | 7.2 | 1-100 | 300 | 400 | 8 | Y180L-8 | 11 | 730 |
| 2YK1548 | 2 |
| YK1836 | 1 | 6.5 | 1-100 | 300 | 360 | 8 | Y180L-8 | 11 | 730 |
| 2YK1836 | 2 |
| YK1842 | 1 | 7.6 | 1-100 | 300 | 440 | 8 | Y200L-8 | 15 | 730 |
| 2YK1842 | 2 |
| YK1848 | 1 | 8.6 | 1-100 | 300 | 500 | 8 | Y200L-8 | 15 | 730 |
| 2YK1848 | 2 |
| YK2148 | 1 | 10 | 1-100 | 300 | 590 | 8 | Y200L-8 | 15 | 730 |
| 2YK2148 | 2 |
| YK2160 | 1 | 12.6 | 1-100 | 300 | 750 | 8 | Y225S-8 | 18.5 | 730 |
| 2YK2160 | 2 |
| YK2448 | 1 | 11.5 | 1-100 | 300 | 620 | 8 | Y225M-8 | 22 | 740 |
| 2YK2448 | 2 |
| YK2460 | 1 | 14.4 | 1-100 | 300 | 790 | 8 | Y225M-8 | 30 | 740 |
Gongyi City Machinery Factory (original Kangdian machinery factory, Gong County Machinery Factory) has large and medium-sized equipment 365 sets, 384 employees, consists of six department: Tachnical department, production department, sales department, domestic trade department, international trade department, service department. There are 240 high-intermediate grade technical personnel. It covers an area of 38, 600 square meters, building area is 18, 000 square meters, fixed assets is 28 million yuan. Gongyi City Machinery Factory is locaded in Kangdian town. One kilometer to south of Kang million eatate Scenic and Kangzhuang road. It is in the east of the provincial capital of Zhengzhou city, there is Hulaoguan Three Kingdoms Battlefield Site; West of Luoyang which is ancient capital of nine dynasties, there is longmen Grottoes which is one of China four famous cave; South of the songshan mountain, there are shaolin Temple and songyang Scademy; North of the Yellow River, there is Sihe yanliu scenic district; Lianhuo Expressway, the Longhai Railway zhengzhou-Xi′ An high-speed rail pass through from east to west, Yellow River bridge line pass through south to nouth. Location is good and transportation is convenient.
Since the factory is established in 1958, it first past the ISO9001 2000 international certification, and obtained import and export license eligibility. Now the leading product are beneficiation series, sandstone series, drying series, milling series eqipment. The products sell well in more than 20 provinces, municipalities and autonomous regions, famous in China, and exporten to many countries southeast Asia, Africa. Quality is enterprise′ S life, we will achieved recognition and satisfaction of the customer through excellent products and quality service. AN oeder is positive, one hopes is a responsibility. No matter it is in the before-sales, during sales or after -sales, we always offer the most attentive service to make you comfortable, let you succeed, also make you satisfied. Cooperating with Gongyi City Machinery Factory will make you no regrets!
Make friends all over the world, invite world content. Gongyi City Machinery Factory sincerely welcome friends from all walks of life to visit and guide, putting forward valuable advice, dicussing cooperation intention, joining hands to creating a better tomorrow.
