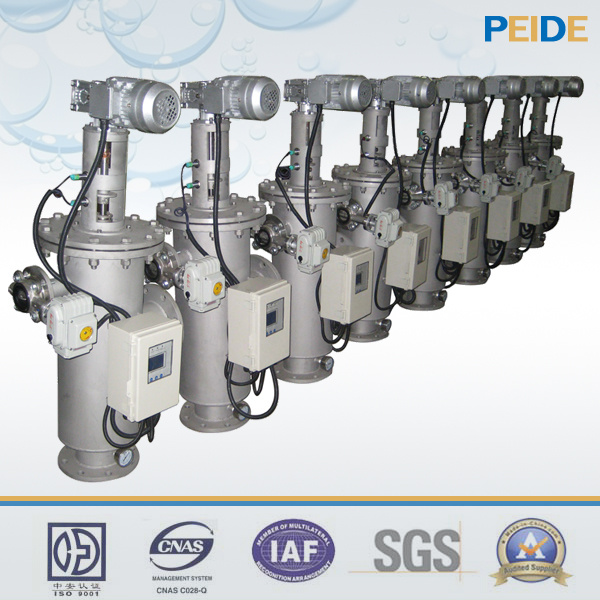

China Filter Manufactures Water Filter for HVAC System

Product Specifications

Prod Model:	XLQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Carbon Steel, 304ss or 316L
Filter Precision:	50-500microns
Pressure Loss:	0.01-0.08MPa
Backwahs Time:	60-120 Seconds
Power:	380,50Hz,3 Phase,Controller 220V
Motor:	14-20 Round Every Minute
Max Pressure:	1.0MPa,1.6MPa
Backwash Water Consumption:	About 500 Kg
Filter Rating:	30-3000 Um
Filter Area:	1500-13500 Cm2
Usage:	Chemical Industry
Motive Force:	Electric power
Certification:	SGS, ISO

Product Description

                           China Filter Manufactures Water Filter for HVAC System

How It Works

The unit consists of two stages of filtration, a coarse pre-filter and a stainless steel fine screen.
The unwanted solids accumulate on the inner surface of the fine screen, building up a filtercake,which filters out even finer particles, creating a pressure differential. Once the pressuredropreaches a preset level, a rinse cycle is activated by the factory supplied control system.

The solids are removed from the fine screen using a spot backwashing method, whichaggressivelysucks the dirt off the screen, similar to a vacuum cleaner, and are carried tothe drain via the rinsenvalve. The dirt collector rotates, ensuring the entire screen is cleanedeach cycle. The process takesa matter of seconds, without interruption of system flow.

Control method

Filter has differential switch and integrator. Once the pressure drop reaches a preset level, a rinse cycle is activated by the PLC controller.

Feature

Structure compact
Low water consumption
Fine filter degree
Low pressure drop

 Application

1,Chilling water treating: such like cooling tower, water supplement system, air conditioningsystem, heat exchange system.
2,Raw water treating: such like surface water, lake, sea water, tank water, well to removegrind, sand, algae, organism etc.
3,Cycling industry water: cooling tower, polishing process water, ion exchange water, sprayingprocess water, heat exchange plant, rolling plant, casting plant etc.
4,Irrigation: farm, dip field, golf, lawn etc.
5,Recycle water

Filter degree

mm	μm	mesh
1mm	1000μm	14
0.841mm	841μm	20
0.707mm	707μm	25
0.595mm	595μm	30
0.5mm	500μm	35
0.42mm	420μm	40
0.354mm	354μm	45
0.297mm	297μm	50
0.25mm	250μm	60
0.21mm	210μm	70
0.177mm	177μm	80
0.147mm	147μm	100
0.125mm	125μm	120
0.105mm	105μm	140
0.075mm	75μm	200
0.068mm	68μm	230
0.065mm	65μm	270
0.044mm	44μm	325
0.037mm	37μm	400
0.02mm	20μm	500

Model	Pipe	Flow rate T/H	Filter area cm2	Drain	Water consumption(L)	Motor(KW)	Weight(KG)
XLQ-50XM	50	20	1500	50mm	75	0.55	85
XLQ-80XM	80	50	1500	50mm	75	0.55	87
XLQ-100XM	100	80	3000	50mm	150	0.55	210
XLQ-125XM	125	100	3000	50mm	150	0.55	212
XLQ-150XM	150	150	7000	50mm	150	0.55	212
XLQ-200XM	200	300	7000	50mm	150	0.55	220
XLQ-250XM	250	450	11000	80mm	400	0.55	395
XLQ-300XM	300	600	11000	80mm	400	0.55	405
XLQ-350XM	350	900	13500	80mm	400	0.55	625

Install way	Horizontal
Unit capacity	15-900T/H,Achieve parallel install to achieve big capacity
Min work pressure	0.25Mpa
Max work pressure	1.0Mpa,1.6Mpa
Micron	20-500um
Control way	Differential pressure, time and manual
Max temperature	65ºC (reach to 100ºC if required)
Back wash time	50-90S
Rotating speed	14-20rpm
Clean way	Scanning type
Differential pressure in cleaning	0.01-0.08Mpa
Back wash water consumption	Approximate 280-310kg
Voltage	AC220V
	380V,50Hz,3PH,CONTROLLER: 220V
Motor power	0.37Kw
Material	Carbon steel with anti-corrosion painting
Screen	Multi stainless steel mesh + pvc structure
Drain valve	Cast ion with antir-corrosion painting
PLC Control

Install notice

1,One check valve must be installed at filter outlet. Return pressure and back water is forbidden, in case of screen out of shape.
2,If system wok pressure over 0.8MPa, should install break valve at drain pipe to reduce impact to screen.
3,Notice motor rotating direction. Shut off power immediately once back rotating (anti-clock wise )occurs. )
4,Installation each part according to arrow direction.
5,Sudden pressure relief at outlet pipe is forbidden. Take normal work pressure 1.3MPa for example,if suddenly open branch valve at outlet, it will occur instant huge different pressure,which damagescreen.
6,Make sure filter used under correct work pressure, capacity.
7,If alarms, open by-pass valve for temporary back washing solutions.
8,Make sure control box have constant power supply. If power off, users can open by-pass valve,close in and outlet valve and control box switch.


Install requirement

1,Keep space for filter install and maintenance.
2,Drainage pipe length not longer than 20m. Avoid more turns off, keep outlet pipe parallel with ground.

Testing
1,Close inlet outlet valve before testing. Open by-pass valve. Wash dirties staying in pipes.
2,Open inlet valve gradually. Let water into filter till air comes out from filter house.
3,Check leak at joint part, check in/outlet pressure gauge. Connect power when comes to system pressure.
4,Set up drainage time based on system pressure data.
5,Open outlet valve gradually if testing is normal. Close by-pass valve back to normal filtering.
6,Observe several differential pressure changes and drainage. Finish testing if normal.

Notice in using

Equipment can through into operation directly, as already has trial testing. Users can adjust settings based on actual use. Change relay's program and parameter is forbidden.
1st operation notice
Follow below steps in 1st operation
Check drainage pipe connection. No up-inclined angle.
Check connection tighten or not.
Check control box in a dry environment.
Connect power cord, green light means normal. Make sure electrical parts is dry.
Water is forbidden into control box.
