Product Specifications
| Prod Model: |
CHP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO/CE |
| Guarantee: |
1 Year |
| Motor: |
Cummins, Q235A |
| Type: |
Impact Crusher |
| Application: |
Stone Industry |
| Drive: |
Electric |
| Crushing Style: |
Impact |
| Compressive Strength (',For Crushing): |
250-300MPA |
| Crushing Degree: |
Intermediate Crusher |
| Finished Surface: |
Thread Process |
| Color: |
as Required |
Product Description

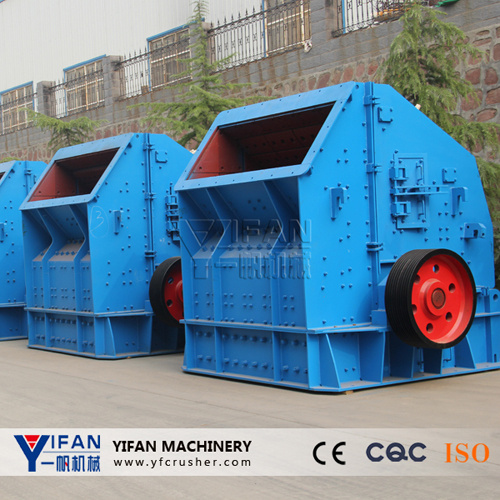

China, Henan leading technology mining machinery
CHP (A)/CHS (A) Series Impact Crushers are built on advanced technology with a combination of domestic applications. More human-oriented with simple design and reasonable structure, bigger and better cavity, higher capacity. CHP (A)/CHS (A) Series Impact Crushers can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical, etc. industries.
Features and Benefits for mining machinery:
1. High qualified raw material, less wear, high productivity under any circumstances. Top manufacturing process is the basis for extraordinary machine.
2. Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.
3. Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.
4. Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor have a smoothly running and long working life.
5. Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.
6. Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.
7. Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.
8. Simple but practical locking device lock the shell 1 and shell 2 together. This device has a easy operation and saves locking time.
9. Unique hydraulic device design is convenient for opening the fame racks to replace wear parts and adjust the discharge size.
10. Simple structure for impact racks and grinding racks. Easy operation, long working life, convenient maintenance and low cost.
| Model | Max Feed edge(mm) | Capacity(t/h) | Motor power(kW) | Weight(Excluding Motor)(t) |
| with grinding cavity | without grinding cavity |
| CHP4939(A) | 500 | 90-160 | 110-132 | 14.696 | 13.596 |
| CHP4955(A) | 500 | 100-260 | 132-200 | 17.43 | 16.12 |
| CHP5159(A) | 600 | 180-300 | 200-250 | 25.64 | 24.2 |
| CHP5559(A) | 650 | 220-450 | 250-315 | 27.046 | 25.438 |
| CHP5979(A) | 700 | 250-550 | 400-440 | 36.45 | 34.3 |
| CHP6379(A) | 800 | 300-600 | 440-560 | 45.3 | 42.3 |
| CHP7179(A) | 1000 | 500-850 | 630 | 84.1 | 78.9 |
| CHP7998(A) | 1200 | 800-1200 | 1250 | 111.5 | 101.2 |
| Model | Max Feed edge(mm) | Capacity(t/h) | Motor power(kW) | Weight(Excluding Motor)(t) |
| with grinding cavity | without grinding cavity |
| CHS4528(A) | 250 | 40-70 | 37-55 | 11.8 | 10.98 |
| CHS4539(A) | 300 | 70-100 | 55-75 | 14.4 | 13.47 |
| CHS4939(A) | 350 | 100-180 | 110-132 | 14.696 | 13.596 |
| CHS4955(A) | 350 | 150-290 | 132-200 | 17.43 | 16.12 |
| CHS5159(A) | 400 | 180-350 | 200-250 | 25.64 | 24.2 |
| CHS5559(A) | 450 | 250-450 | 250-315 | 27.046 | 25.438 |
| CHS5979(A) | 500 | 280-550 | 400-440 | 36.7 | 34.6 |
| CHS6379(A) | 600 | 300-600 | 440-560 | 45.7 | 43.5 |
| CHS7179(A) | 700 | 500-850 | 630 | 84.1 | 78.9 |
| CHS7998(A) | 1000 | 700-1100 | 1250 | 115.6 | 109.5 |
Zhengzhou Yifan Machinery Co., Ltd are the famous manufacturer of crusher and screen equipment for clients, which include mobile crusher (portable crusher), hydraulic cone crusher, jaw crusher, vertical shaft impact crusher(VSI crusher), impact crusher, vibrating screen and portable crushing plant. We not only offer clients the crushing& mining machinery with good capability and competitive price, but also supply top service and solution of the sand and gravel aggregate production line.
We have many technical experts in domestic crushing and screening filed, and possesses the powerful ability in developing the new products. Demands of clients are seen as our motility, we endlessly develop the new products with high performance, which could satisfy the demands of clients and reach the world level.
We highly regard the quality of products, pursue excelsior on the quality of products, and guarantee to produce the high quality product with strict ISO9001: 2000 quality management systems.
We have perfect after-sale service network. After strict training, the after-dale service engineer could offer clients the rapid maintenance service on demand. Moreover, we have our own foundry plant where lots of spare parts of the crushing and screening equipment are manufactured and plenty stored, which could offer clients spare parts conveniently.
In the rapid developing market our competition ability continuously enhances, our products have been broadly applied in the national key projects. In the course of construction of the national expressway network and big-sale hydropower station, we offer the marched crushing plants lots of whole set of crushing and screening product lines which could offer high quality concrete aggregate.
As the occupation ratio in domestic market increases, our products have been exporting to Russia, Mongolia, Chile, Media Asia, East Asia, Africa etc. Country and region.
We insist innovating constantly, keeping improvement of products, enhancing the reliability of products, aspire to be the global brand in the crushing and screening filed, and be deeply aware of our success is based on the success of clients.
