China High Efficiency Spiral Classifier Machine Gold Mining and Processing Equipment

China High Efficiency Spiral Classifier Machine Gold Mining and Processing Equipment
Supplier: Shanghai Shibang Machinery Co., Ltd.
Price: US $ 5000-9999/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 12 Months
Color: Yellow Iron Grey
After Sales Service: The Whole Time
Spare Parts Supply: Will Supply Any Time
Other: Mining,Quarry,Chemical Industry and Construction
The Machines Classification: Spiral Classifier
Other Certification: CE
Test&Installation: Professional Engineer Assigned
Delivery Detail: 30 Days
Details: More Information and Price List Please Send Me
Certification: CE
Type: Spiral Classifier

Product Description

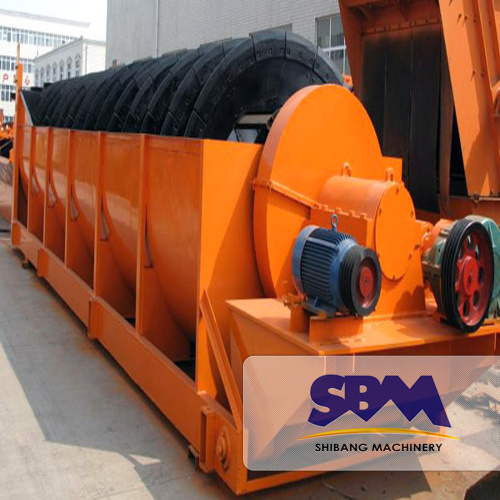

China high efficiency spiral classifier machine gold mining and processing equipment:

As the important part of beneficiation line, spiral classifiers are designed to provide the most effective pool area and overflow velocity requirements. According to the theory that the deposition rates are quite different because of different solid particles' specific gravity, the spiral classifier is not only able to clean the ground mineral ore, but also separate the particles briefly.

China high efficiency spiral classifier machine gold mining and processing equipment advantages:

1. Energy saving
2. Heavy duty, rugged construction
3. Powerful self-contained spiral lifting device
4. Continuous spiral raking

China high efficiency spiral classifier machine gold mining and processing equipment application:

Spiral Classifiers are usually suitable for the following situations:
--Separation of fine particles and liquid from coarse particles
--Separation of light particles from heavy particles
--Separation of the particles into a number of products graded according to size
--Separation of liquid from solid particles

Spiral classifier related knowledge:

Working principle
Two options are provided. A manual hand wheel for raising and lowering of Spiral assembly by a simple positive action, hand wheel operated screw device. Manual lifting arrangement is usually provided with smaller size range. Alternatively, spiral assembly can be raised and lowered by a Hydraulic system. Such an arrangement is common for diameter and larger units. The assembly can be provided with a motorized pump as an option for greater operating convenience.

Tank and Substructure
The tank is rigid and well-supported unit in welded construction. Two large main beams provide the substructure support for the tank and drive mechanism. A minimum of intermediate foundation supports are required

Spiral Construction
Pre-formed sectionalized steel flights form a continuous Spiral helix. SBM Spiral Classifiers utilize an increased lead or helix angle to form the continuous high pitch Spiral for greater raking capacity.
Manual and Hydraulic Spiral Lifting Devices

Two options are provided.
A manual handwheel for raising and lowering of Spiral assembly by a simple positive action, handwheel operated screw device.
Manual lifting arrangement are usually provided with smaller size range.
Alternatively, spiral assembly can be raised and lowered by a Hydraulic system. Such an arrangement is common for 48" diameter and larger units. The assembly can be provided with a motorized pump as an option for greater operating convenience.

ABOUT US

SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.

Inquiry Service

Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.
We are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,

1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?

I hope you can tell me these details, i will give you the best quotation ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
Model Spiral Dia(mm) Rotary speed (r/min) Tank Length (mm ) Motor kw Dimenstion
Drive Adust LxWxH (mm)
HC-3 300 12-30 3000 1.1 ---- 3850 490 1140
HC-5 500 8-12.5 4500 1.1 ---- 5430 680 1480
HC-7 750 6-10 5500 3 ---- 6270 980 1820
HC-10 1000 5-8 6500 5.5 ---- 7590 1240 2380
LC-10 8400 7.5 9600 1240 2680
HC-12 1200 4-6 6500 7.5 2.2 8180 1570 3110
LC-12 8400 7.5 2.2 10370 1540 3920
2HC-12 6500 15 4.4 8230 2790 3110
2LC-12 8400 15 4.4 10370 2790 3920
