Product Specifications
| Prod Model: |
PFL-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Equipment: |
Combination Crusher |
| Size: |
<100 |
| Application: |
Stone Industry |
| Drive: |
Electric |
| Compressive Strength (',For Crushing): |
>300MPA |
| Crushing Degree: |
Ultra-Fine Mill |
| Finished Surface: |
Outer Surface Process |
| Type: |
Comvination Crusher |
| Color: |
as Client Request |
Product Description
Machinery Factory of Gongyi City:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you

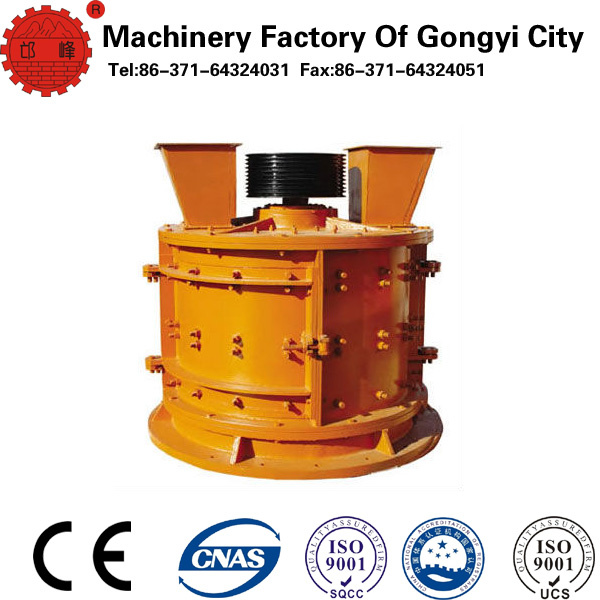

Product Introduction:
This series of composite crusher is based on our company PEL vertical composite crusher (the machine has listed in the national mechanical industry standard), combining with finely crushing technology at home and abroad optimize design becomes the new product, its performance has reached advanced domestic level, used in crushing various medium harden ore, can be widely used in mining,metallurgy,refractories,cement, coal,glass,ceramics, electric power industries.
Principles of composite crusher:
The motor drives the rotor that fixed on the main bearing to run quickly toward certain direction when the machine works.The materials are fallen into the throw-up disc and impacted
By the high speed strips of the throw-up disc, and then strikes with the impact board under
The effect of Centrifugal Force.
Because the impact board is bevel and the gravitation, the materials are threw to the taper crushing room and impacted by the high-rotating up hammerhead.After gaining sufficient energy,
The materials are thrown to the impact board again and action repeats.The materials strike
With each other in the crushing room and then are down to the column-shape rotor room.
Then crushed, pressed, and ground and action repeats.In this way, the materials go through
Up, middle, and down rotor crushing rooms and crushed, pressed, and ground by the
Hammers and the impact boards, and finally the materials are gradually crushed into needed
Sizes and come out.
Technical Parameters:
Type |
800 |
1000 |
1250 |
Rotor diameter(mm) |
650 |
800 |
1000 |
Cylinder body height (mm) |
800 |
850 |
850 |
Spindle speed(r/min) |
1180 |
980 |
780 |
Feeding granularity(mm) |
50 |
70 |
50 |
Grain size(mm) |
0.5-5 |
0.5-5 |
0.5-5 |
Production capacity(t/h) |
10-20 |
25-40 |
45-70 |
Type |
Y set-4 |
Y set-6 |
Y set-6 |
Motor |
Power(kw) |
15-22 |
30-55 |
75-90 |
Rotate speed(r/min) |
1440 |
980 |
980 |
Overall dimension |
2000×900×1800 |
2000×900×1800 |
2000×900×1800 |
In order to recommend suitable design for you, please kindly tell me:
1.What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?
2.What is the maximum feed size of your raw material?
3.What are output sizes you want?Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm.
4.What is capacity you want?How many tons per hour?
Gongyi City Machinery Factory (original Kangdian machinery factory, Gong County Machinery Factory) has large and medium-sized equipment 365 sets, 384 employees, consists of six department: Tachnical department, production department, sales department, domestic trade department, international trade department, service department. There are 240 high-intermediate grade technical personnel. It covers an area of 38, 600 square meters, building area is 18, 000 square meters, fixed assets is 28 million yuan. Gongyi City Machinery Factory is locaded in Kangdian town. One kilometer to south of Kang million eatate Scenic and Kangzhuang road. It is in the east of the provincial capital of Zhengzhou city, there is Hulaoguan Three Kingdoms Battlefield Site; West of Luoyang which is ancient capital of nine dynasties, there is longmen Grottoes which is one of China four famous cave; South of the songshan mountain, there are shaolin Temple and songyang Scademy; North of the Yellow River, there is Sihe yanliu scenic district; Lianhuo Expressway, the Longhai Railway zhengzhou-Xi′ An high-speed rail pass through from east to west, Yellow River bridge line pass through south to nouth. Location is good and transportation is convenient.
Since the factory is established in 1958, it first past the ISO9001 2000 international certification, and obtained import and export license eligibility. Now the leading product are beneficiation series, sandstone series, drying series, milling series eqipment. The products sell well in more than 20 provinces, municipalities and autonomous regions, famous in China, and exporten to many countries southeast Asia, Africa. Quality is enterprise′ S life, we will achieved recognition and satisfaction of the customer through excellent products and quality service. AN oeder is positive, one hopes is a responsibility. No matter it is in the before-sales, during sales or after -sales, we always offer the most attentive service to make you comfortable, let you succeed, also make you satisfied. Cooperating with Gongyi City Machinery Factory will make you no regrets!
Make friends all over the world, invite world content. Gongyi City Machinery Factory sincerely welcome friends from all walks of life to visit and guide, putting forward valuable advice, dicussing cooperation intention, joining hands to creating a better tomorrow.
