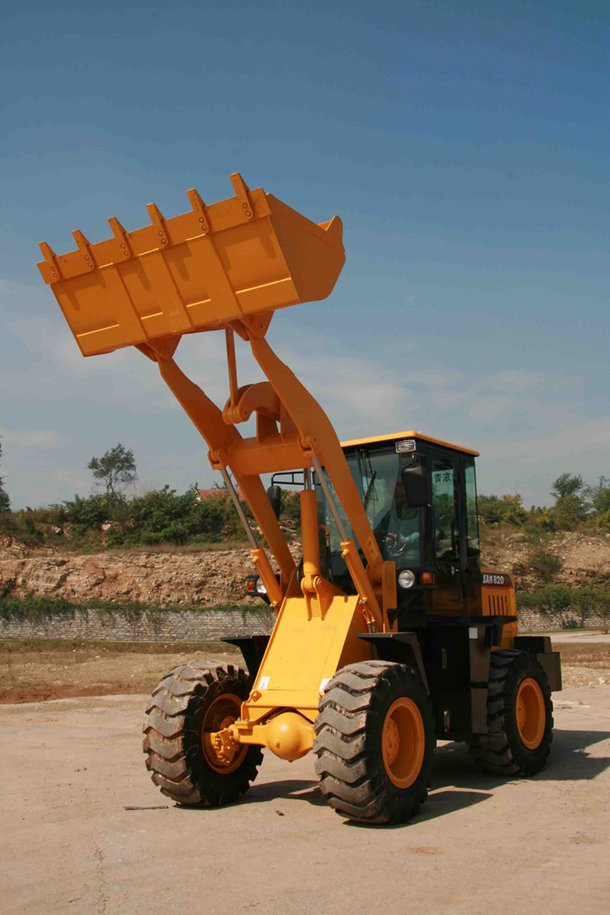

China Loader New Model 2t Wheel Loader

Product Specifications

Prod Model:	WS20F
Markets:	Southeast Asia,Africa,Mid East
Overall Dimension (L×w×h):	5853×2000×2750mm
Rated Loading:	2000kg
Overall Weight:	6000kg
Type:	Small Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New

Product Description

Performance:
rated loading:2000kg
overall weight:6000kg
Rated bucket capacity:1.2m3
Maximum tractive force:≥54KN
Maximum breakout force:≥45.4KN
Maximum grade ability:30ºC
Maximum dump height:2630mm
Maximum dump reach:863mm
Minimum turning radius:4759mm
Engine:
Model:YT4B2-G53Q
type:Vertical, in-line, water cooled, 4-stroke diesel engine
Rated power:55kw-2400r/min
Min fuel-consume ratio:≤242g/kw.h
Transmission:
Gearbox mode:Countershaft power-shift
Maximum speed:24km/h
Axel :
Decelerating mode:Single stage planetary type
Ground clearance:310mm
Fuel tank capacity:80L
parking brake:flexible shaft operated external drum
Service brake:air assist disc brake on 4 wheels
