Product Specifications
| Prod Model: |
FS1325D-4 axis |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
China Supplier 4 Axis CNC Router Engraver Machine |
| Controller: |
Syntec |
| Spindle: |
9kw Hsd |
| Motor: |
Yaskawa From Japan |
| Drives: |
Yaskawa Drives |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

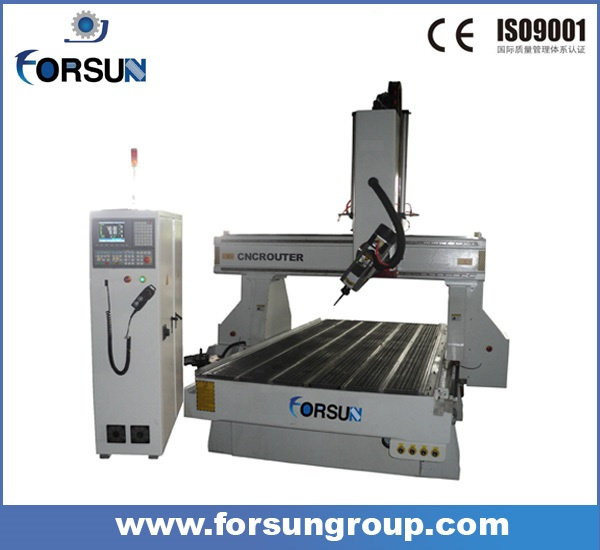

China new product 4axis cnc router machine
Applicable Industry and materials:
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
1.HSD spindle original famoue brand from Italian,also can choose Kolumb spindle
2.SYNTEC control system from Taiwan with high performance and competitive price
3.Yaskawa servo motor and drives from Japan with high precision and long life
4.HIWIN linear guide - made from Taiwan,used for linear reciprocating stadium
5.Working area:1300*2500*400mm
C Rotary Axis:360o
6.Whole cast steel structure thicken to 8mm
7.Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw
8.Automatic Tool Calibration - To guide rail and slide block , make it run better
10.Schneider electrical components - original brand from France
11.Japanese Omron Switch with long life
12.APEX Reudcer from Taiwan
13. T-Slot table with Aluminum sheel - Use clamp fixed materials
14.380V/3ph/50 or 60Hz
NO | Description | Parameter |
| 1 | X,Y,Z, Working Area | 1300x2500x500mm B axis is with 360 degree |
| 2 | Table Size | 1300×2500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03mm/300mm |
| 5 | Table Surface | Vacuum and T-slot Combined |
| 6 | Frame | Heavy Steel Tube Structure |
| 7 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 35000mm/min |
| 12 | Spindle Power | 6.0KW HSD Spindle |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | 850W YASKAWA AC Servo motors |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | USB / Ethernet |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 4280*2290*2050mm |
| 26 | N.W. | 1700KG |
| 27 | G.W. | 1800KG |
| 28 | Optional Parts | Siemens Control system |
| Colombo Spindle |
| Siemens Servo system |
| Dust Collector System |
| Vacuum Pump |
| Rotary System |
Mist-cooling System
|
Remark:
1. Pkg: suitable package for sea
2. Terms: FOB ,C&F,CIF
3. From Tianjin, China To_______,
4. Delivery Time: within 15-20 working days after received payment
5. Payment term: T/T,30% prepaid,,the balance paid before the delivery
More details, pls contact with us.
