Product Specifications
| Prod Model: |
GM/EP Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Jaw Crusher for Lab Sample Crushing |
| Crushing Material: |
Coal, Coke, Ore, Mineral |
| Feeding Size: |
100mm |
| Discharge Size: |
6-38mm |
| Crusher Handling Capacity: |
500-1200kg |
| Power Supply: |
380V/50Hz/3phase or as Request |
| Safety Protect Device: |
Interlock Device |
| Structure Feature: |
Hermetic Design with Openable Cover |
| Package Weight: |
About 600kg |
| Volume Of Package: |
About 1.2cbm |
| Motor Type: |
DC Motor |
| Type: |
Jaw Crusher |
| Condition: |
New |
| Materials: |
Ore, Mineral, Rock, Stone, Coal |
| Application: |
Laboratory, Scientific Research |
| Motor Power: |
4kw |
| Inlet Size: |
100mm |
| Outlet Size: |
6-38mm |
Product Description

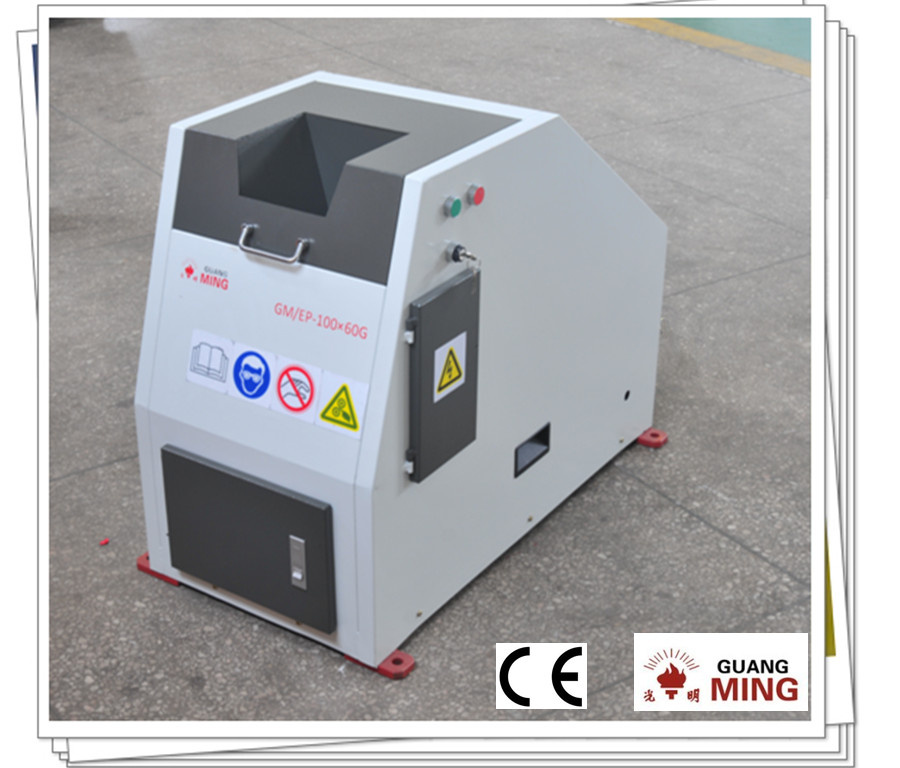

China Optimal Laboratory Jaw Crusher For Crushing Ore,Mineral
Highlignt of the laboratory jaw crusher equipment
*Lab use, compact design;
*Crush ore, mineral for sample preparation;
*Durable jaw plate,uniform discharge size, no blocking up;
*CE Certificate;
Typical Application:
This laboratory mineral jaw crusher is used for crushing high hardness ores, mineral or other solid material for component analysis continuously or intermittently.
Such as:
Coal industry: coal, coke, blind coal, clean coal,brown coal;
Ore:copper ore, chrome iron ore,chalcopyrite, dolomite, calcspar, galena;
Nonferrous metal: Plumbum, Zinc, Aluminum, Magnesium, Gold, Silver, Platinum, Tungsten, Lithium;
Other:Slag, Kaolin, Gypsum, Rock,Sandstone, Cement, Limestone;
Especially Suitable for:
The laboratory ore jaw crusher is especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
Working principle:
After starting the motor, triangle belt and motor belt wheel will drive the belt wheel and eccentric shaft to rotate, the movable jaw and movable jaw plate will do periodic movement, when the material passes through the no-rebound hopper and enters into crushing chamber, then the movable jaw plate and fixed jaw plate crush the material by friction.
Product Features of laboratory aw crusher equipment :
1. The crusher has the advantages such as: Even discharging size, smooth running, easy adjustment and long service life.
2. Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.
3. Removable shell which is convenient for daily maintenance and inspection of the machine.
4. Mechanical-electrical integrated controlling and it is easy to operate.
5. Total electro-static coating surface which makes good appearance and easy to clean.
6. It can work normally on the flat ground without fixing any base.
More details of the jaw crusher equipment:
Technical parameter of lab jaw crusher
China Optimal Laboratory Jaw Crusher For Crushing Mineral, Ore
Jaw Crusher Model No.
GM/EP-100×60
GM/EP-100×60X
(patent)
GM/EP-150×125X
(patent)
GM/EP-150×125
GM/EP-250×150
Feeding entrance size(mm)
100×60
100×60
150×125
150×125
250×150
Feeding size(mm)
≤45
≤45
≤100
≤100
≤200
Discharging size (mm)
3-10
0.2-3
3-38
6-38
10-40
Handling capacity(kg/h)
500
60-250
500-1000
500-1200
1000-3000
Working power supply (V)
380
380
380
380
380
Dimension (mm)
1000×550×740
981×550×750
1150×710×985
1150×710×985
1670×800×1050
Motor power(kw)
1.5
1.5
4
4
7.5
Total weight (kg)
186
330
585
585
950
Packaging and shipping way
Packaging way: plywood case, each mineral crusher equipment is packaged in a customized plywood case, which can protect the roll crusher well during transportation process;
Shipping way: by sea, by air or by DHL as per customer's requirement.
Our Serives:
-Within 24hours prompt reply;
-15-30day on time delivery;
-Quality assurance, the disc mill has 12months warranty time;
-High qualified engineer and sales provide good service for each customer;
-Experienced cooperation forwarder satisfies customer's various shipping arrangement.
FAQ:
1. What's material of jaw plates of lab jaw crusher equipment?
=>The jaw plates are made of durable chrome steel .
2. How to adjust output size?
=>Customers can enlarge or reduce the distance between moveable jaw plate and fixed jaw plate to adjust output size accordingly.
3. What's power supply of the lab jaw crusher?
=> The standard is 380V, 50Hz, customized motor is also available if customer's local power supply is differnt.
