Product Specifications
| Prod Model: |
GM/SP-100X100H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Description: |
High Strength Lab Jaw Crusher |
| Object: |
Coal |
| Tongs' Features: |
Adjustable Tongs |
| Feeding Entrance Size: |
100X100mm |
| Feeding Size: |
<80mm |
| Discharge Size: |
0.2-20mm |
| Handling Capacity: |
200-1000kg/H |
| Drive: |
Electric |
| Application: |
Coal, Electricity, Laboratory |
| Crushing Degree: |
Fine Grinding Machine |
| Type: |
Jaw Crusher |
| Crushing Style: |
Grinding and Impact |
Product Description

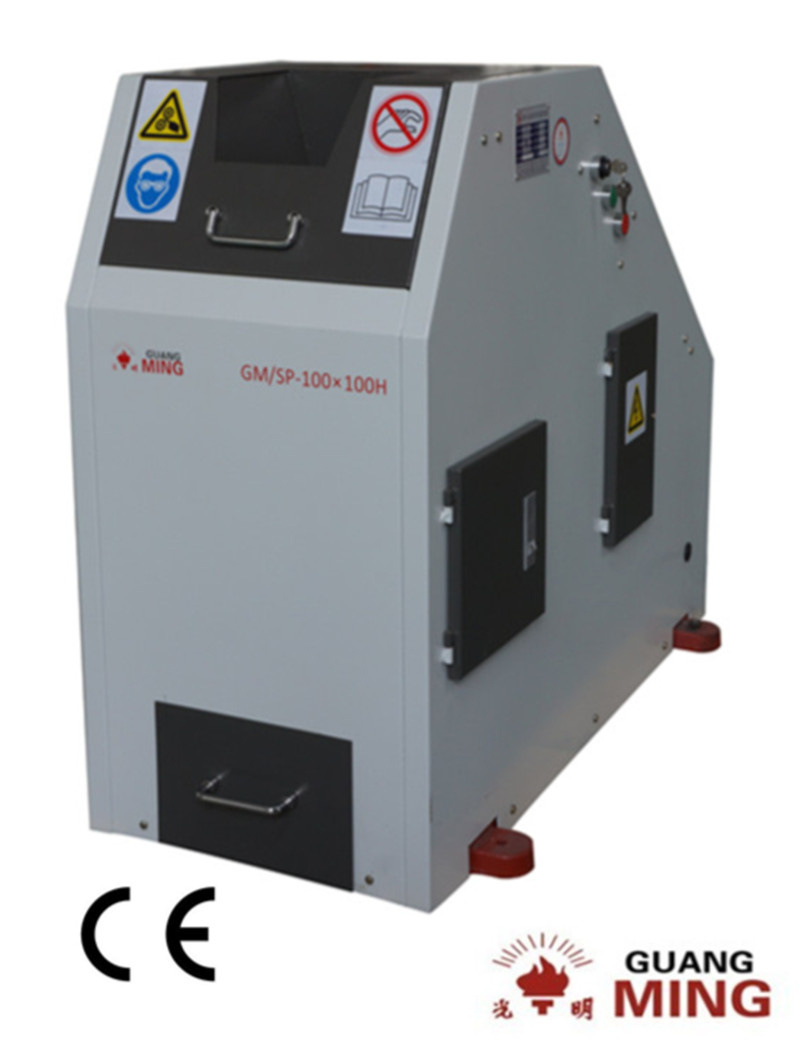

China Professional Mineral Crusher Guangming Jaw Crusher Used For Laboratory Sample Crushing
High light of this model mineral jaw crusher:
* Special made with special alloy material, the service life jaw plates of this model jaw crusher can be three times of the normal jaw plates even for the hard material.
* Full sealed with dust extracting outlet, greatly protect the service life of the lab evironment.
* Interlocking device, protect the safety of the operator and the maintenance staffs.
1. Typical application
This machine is suitable for crushing material with any kind of hardness continuously or intermittently.
Mining and Metallurgy: Coal, minerals, coke, vanadium, titanium slag, carbonized tungsten, niobium and vanadium chromium manganese chromium.
Chemistry: raw materials.
Non-metal minerals: alumina, cement clinker, quartz.
Geology and mineral: all kinds of rock.
Glass: frit, raw material, glass.
Ceramic: talc, refractory mud, ceramic, sintering porcelain.
2. Advantages
1.It is especially suitable for crushing material of high hardness.
2.Conservative design and long service life.
3.It can work normally on the flat ground without fixing any base.
4.Mechanical-electrical controlling and it is easy to operate.
5.Full-sealed design and no dust pollution which meet environmental protection requirements and easy for collecting samples.
6.Total electro-static coating surface which makes good appearance and easy to clean.
7. Removable shell which is convenient for daily maintenance and inspection of the machine.
8.The jaw crusher is environment-friendly.
The operation of this kind of mineral jaw crusher is very simple, and you can use it directly on the ground, and jaw crusher is also equipped with dust collect device, enviroment friendly. There are also various kinds of jaw plate for your chooice.
3. Guangming lab mineral jaw crusher details
inside jaw plate
Back side
Our mineral jaw crusher series had inspected by SGS, and was approved CE certification. We are warmly welcome you to visit our factory or contact us for more details.
|
Environment friendly high strength jaw crusher |
|
Model No. |
GM/EP-100× 60H |
GM/SP-100× 60H |
GM/SP-100× 100H |
GM/EP-150× 125H |
GM/EP-250× 150H |
|
Feeding entrance size(mm) |
100× 60 |
100× 60 |
100× 100 |
150× 125 |
250× 150 |
|
Feeding size(mm) |
≤ 45 |
≤ 48 |
≤ 80 |
≤ 100 |
≤ 200 |
|
Discharging size (mm) |
3-10 |
0.2-15 |
0.2-20 |
6-38 |
10-40 |
|
Handling capacity(kg/h) |
500 |
12-720 |
20-1030 |
50-1200 |
1000-3000 |
|
Working power supply (V) |
380 |
380 |
380 |
380 |
380 |
|
Dimension (mm) |
1000× 550× 740 |
981× 530× 750 |
981× 530× 830 |
1150× 710× 985 |
1670× 800× 1050 |
|
Motor power(kw) |
2.2 |
2.2 |
3 |
5.5 |
11 |
|
Total weight (kg) |
186 |
330 |
400 |
585 |
950 |
GUANGMING has more than 30 years experience of seeking for the development of sample analysis equipments, and we are specializing in design, research and manufacture the sample preparation and testing machine and always in the lead of technology and market. Our main products are crushing machines, combined sample preparation machines, screening machines, dusters, electrical heating machines, calorimeters and analyzers.
GUANGMING occupies more than 60ares, which includes 18, 000 square meters of production workshops, 3800 square meters of technical center, and 2300 square meters of staff dining room, basketball playground and entertainment place and so on. We have hundreds of employees, and most of them are professional technicians.
To strengthen our industrial advantages, GUANGMING insists on the business concept of "Independent Innovation, Prospering the company through science and technology" and invests lots of money for developing the new products. To satisfy our customers, we pay attention to every details and every process, at the same time, our company also keeps close contact with several scientific research departments, who will take response and give advice to the improvement of products in time.
We also carry out a strict quality management system which is in accordance with ISO9001: 2000. Most of our products have gained the unit recommendation of China Coal Department and Coal Science College. Our General Manager, Ms. Wenli He, has been employed as the technical member of National Standard Technical Committee.
Our products have covered each provinces of China and exported to many other countries like Australia, India, Philippe and Indonesia and so on and received high reputation both at home and abroad.
