Product Specifications
| Prod Model: |
GRT-T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Leather Cutting Machine |
| Certification: |
CE |
Product Description

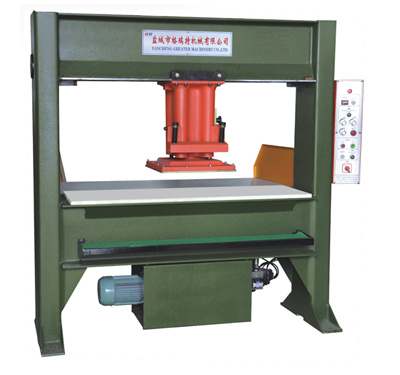

China Supplier Easy Operation 50T Hydraulic travelling head cutting machine with safety device
The working table of 50T Hydraulic Travelling head cutting machine can be designed 1600*550mm, 1800*550mm, 2000*550mm, head size can be 550*550mm, 650*650mm, 750*750mm
Many Nike and Adidas shoes factory produce BIG SIZE shoes need BIG SIZE head.
Features:
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized.
Main Technical specification
|
Model
|
GRT-T 500
|
Maximum cutting force
|
50 T
|
Working table(mm)
|
1600*550
|
Cutting head size(mm)
|
550*550
|
Adjustable stroke (mm)
|
5-150
|
Motor power
|
4.0KW
|
Electric Supply Voltage
|
3x440/415/400/380/220/200V, 50/60 Hz
|
Machine dimensions(mm)
|
2200*720*2000
|
G. W
|
3000kg
|
The Greater machinery is absorbed in the automatic equipment of Hydraulic cutting machine and shoe-making machinery. Systematic design of high-accuracy blanking and made. It centralized domain front and most advanced technology, the cutting machine series researched and developed, hold the lead all the time on the market. Our company is active in implementation of brand strategy to promote the technological progress and sticks to the tenet of creating Greater brand, developing national machinery industry and has realized the fast development by legal operation with high-effective management, high product quality and complete after-sale services. Its products sell well in China and have been sold as far as to twenty foreign countries and regions, such as UK, USA, Japan, Russia, Italy and Southeast Asia.
At present our company has formed a whole complete supporting supply system of cutting, mould cutting machinery. Our company can supply the Hydraulic Cutting Machine from 20T to 300T, either single-side or double-side auto infeeding is available. It is applied to leather processing industry, shoe-making industry, case and bag industry, package industry, toys industry, stationery industry, automobile industry, polyurethane processing industry to cut materials such as leather, rubber, plastics, cardboard, cloth, foam, nylon, leatheret, and PVC with mold cutting die. Our company senior technical staff is with abundant experience, in order to help users in the selecting type of the machine and dispose, depend on different blanking technological requirements, seek the most advanced, most suitable solution. Impel users' product quality and profit to get the abundant assurance.
Friends both at home and abroad are welcome to visit us and cooperate with us!
