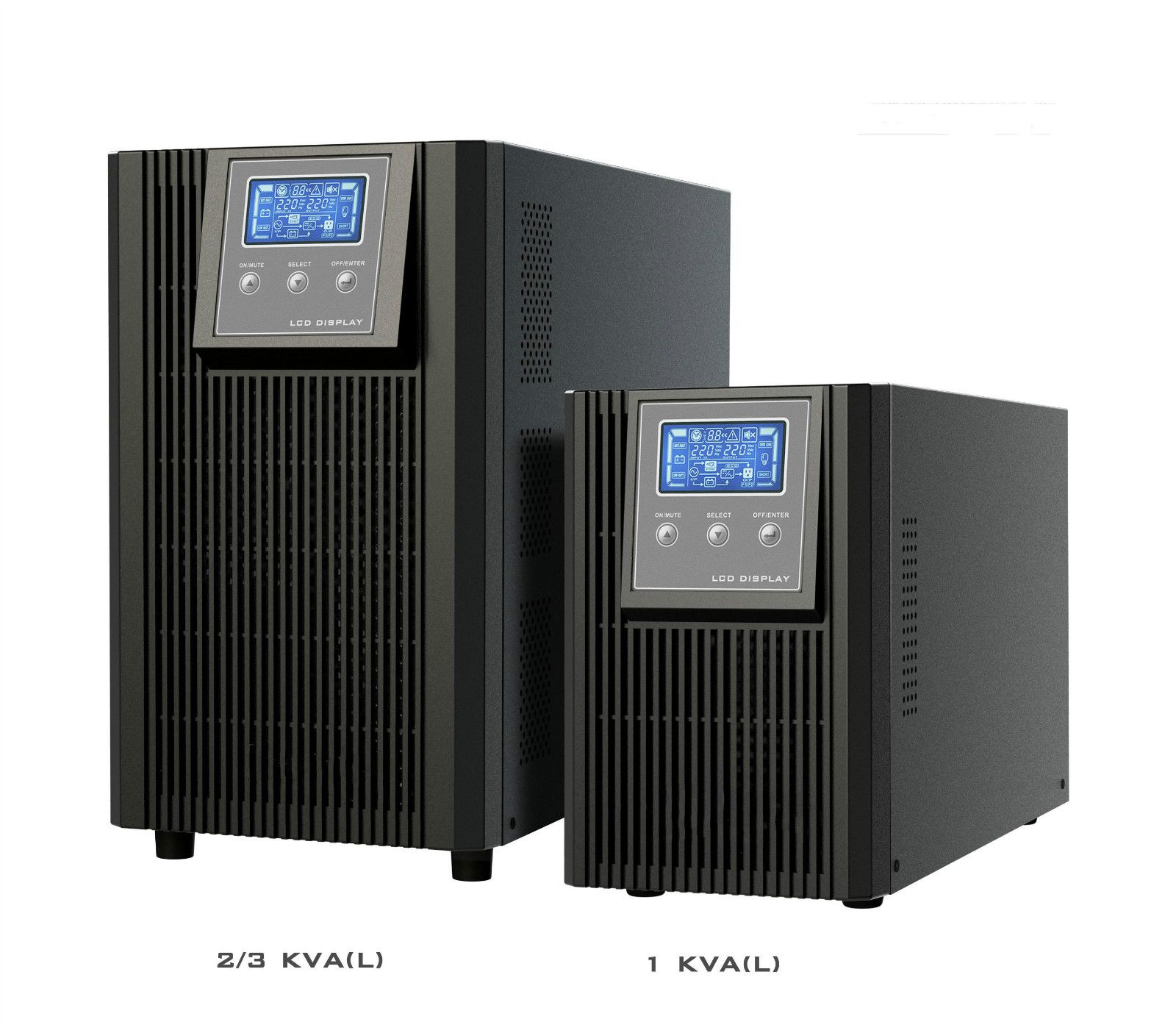

P1K(L)-P3K(L) ONLINE HIGH FREQUENCY UPS
Function Features
True double-conversion online UPS
Microprocessor control optimizes reliability
Output power factor0.8
Wide Input voltage range(110V - 300VAC)
Input power factor correction
Converter mode available
ECO mode for energy saving
Generator compatible
Smart SNMP works well with either USB or RS-232 together
Comprehensive display allows easy monitoring and access of UPS status
Specification
MODEL | P1K(L) | P2K(L) | P3K(L) |
PHASE | Single phase with ground |
CAPACITY | 1000VA/ 800W | 2000VA/ 1600W | 3000VA / 2400W |
INPUT |
Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
Input Voltage Range | 55~150 VAC or 110-300VAC at 50% load 85-140 VAC or 160-280VAC at 100% load |
Frequency Range | 40Hz ~ 70Hz |
Power Factor | >=0.99@ Nominal voltage(100% load) |
OUTPUT |
Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
Voltage Regulation | ±1% |
Frequency Range(Synchronized Range) | 47-53 Hz or 57~63 Hz |
Frequency Range(Batt. Mode) | 50 Hz±0.25Hz or 60Hz±0.3 Hz |
Current Crest Ratio | 3 : 1 |
Harmonic Distortion | <=3% THD(Linear Load), <=6% THD(Non-linear Load) |
Transfer Time | AC to DC | Zero |
Inverter to Bypass | 4ms(Typical) |
Waveform(Batt. Mode) | Pure Sine wave |
EFFICIENCY |
To AC Mode | 88% | 88% | 90% |
To Battery Mode | 83% | 85% | 88% |
BATTERY |
Standard Model | Battery Type | 12V/7Ah | 12V/7Ah | 12V/7Ah |
Numbers | 2 | 4 | 6 |
Typical Recharge Time | 4 hours recover to 90% capacity |
Charging Current(max.) | 1.0A |
Charging Voltage | 27.4VDC±1% | 54.7VDC±1% | 82.1VDC±1% |
Long-run Model | Battery Numbers | Depending on the capacity of external batteries |
Charging Current(max.) | 1A-6A(Adjustable) |
Charging Voltage | 41.0VDC±1% | 82.1VDC±1% | 109.4VDC±1% |
INDICATORS |
LCD | Load level, Battery level, AC mode, Bypass mode, and Fault indicators |
PHYSICAL |
Standard Model | Dimension, D×W×H(mm) | 397×145×220 | 419×190×318 |
Net Weight(kgs) | 9.8 | 17 | 23 |
Long-run Model | Dimension ,D×W×H(mm) | 282×145×220 | 397×145×220 |
Net Weight(kgs) | 3.97 | 6.7 | 7.24 |
ENVIRONMENT |
Humidity | 20-90% RH@ 0-40ºC(Non-condensing) |
Noise Level | Less than 50dBA@ 1 Meter |
MANAGMENT |
Smart RS-232/USB | Support Windows@2000/2003/XP/Vista/2008, Windows@7/8, Linux, Unix, and MAC |
Optional SNMP | Power management from SNMP manager and web browser |
P6K(L)/P10K(L) ONLINE HIGH FREQUENCY UPS
Function Features
True double-conversion online UPS
DSP technology guarantees high performance
Output power factor 0.8
Standard backup UPS and long backup UPS in one integrated unit
Adjustable charging current via LCD or software(0.5A-6A)
Wide input voltage range(110-300VAC)
Active Input power factor correction 0.99
Emergency power off function(EPO)
Specification
MODEL | P6K(L) | P10K(L) |
PHASE | Single phase with ground |
CAPACITY | 6000VA/ 4800W | 10000VA / 8000W |
INPUT |
Nominal Voltage | 208/220/230/240VAC |
Input Voltage Range | 110-300 VAC at 50% load ,178-300 VAC at 100% load |
Frequency Range | 46~54Hz or 56~64Hz |
Power Factor | >=0.99@ Nominal voltage(100% load) |
OUTPUT |
Output Voltage | 208/220/230/240VAC |
Voltage Regulation | ±1% |
Frequency Range(Synchronized Range) | 46~54 Hz or 56-64 Hz |
Frequency Range(Batt. Mode) | 50 Hz or 60Hz ±0.1 Hz |
Current Crest Ratio | 3 : 1 |
Harmonic Distortion | <=3% THD(Linear Load), <=5% THD(Non-linear Load) |
Transfer Time | AC to DC | Zero |
Inverter to Bypass | Zero |
Waveform(Batt. Mode) | Pure Sine wave |
EFFICIENCY |
To AC Mode | 92% | 90% |
To Battery Mode | 90% | 89% |
BATTERY |
Standard Model | Battery Type | 12V/7Ah |
Numbers | 16 |
Typical Recharge Time | 9 hours recover to 90% capacity |
Charging Current(max.) | 1.0A |
Charging Voltage | 218.4VDC±1% |
Long-run Model | Battery Numbers | Depending on the capacity of external batteries |
Charging Current(max.) | 1A, 2A, 4A, 6A(Adjustable) | Default:4.0A± 10% |
Charging Voltage | 218.4VDC±1% |
INDICATORS |
LCD | Load level, Battery level, AC mode, Bypass mode, and Fault indicators |
PHYSICAL |
Standard Model | Dimension,D×W×H(mm) | 369×190×688 | 442×190×688 |
Net Weight(kgs) | 60 | 66 |
Long-run Model | Dimension,D×W×H(mm) | 369×190×318 | 442×190×318 |
Net Weight(kgs) | 12 | 16 |
ENVIRONMENT |
Humidity | 0-95% RH@ 0-50ºC(Non-condensing) |
Noise Level | Less than 58dBA@1 Meter |
MANAGMENT |
Smart RS-232/USB | Support Windows@2000/2003/XP/Vista/2008, Windows@7/8, Linux, Unix, and MAC |
Optional SNMP | Power management from SNMP manager and web browser |
P10K(L)(3/1)-P20K(L)(3/1) ONLINE HIGH FREQUENCY UPS
Function Features
True double-conversion online UPS
DSP technology guarantees high performance
Output power factor0.8
Wide Input voltage range(110V - 300VAC)
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
ECO mode for energy saving
Generator compatible
Programmable power management outlets
Emergency power off function(EPO)
Charger capacity expansion to 8A for long-run models
3-stage extendable charging design for optimized battery performance
SNMP+USB+RS-232 multiple communications
Maintenance bypass available
Optional N+X parallel redundancy
Specification
MODEL | 3P10KL | 3P15KL | 3P20KL |
PHASE | 3- phase in/ 1-phase out |
CAPACITY | 10000VA/ 8000W | 15000VA/ 12000W | 20000VA / 16000W |
INPUT |
Input Voltage Range | 305~478 VAC (3-phase) at 100% load 190-520 VAC ( 3-phase) at 50% load |
Frequency Range | 46-54Hz or 56-64Hz |
Power Factor | >=0.99@ Nominal voltage(100% load) |
OUTPUT |
Output Voltage | 208/220/230/240VAC |
Voltage Regulation | ±1% |
Frequency Range(Synchronized Range) | 46-54 Hz or 56~64 Hz |
Frequency Range(Batt. Mode) | 50 Hz±0.1Hz or 60Hz±0.1 Hz |
Current Crest Ratio | 3 : 1 |
Harmonic Distortion | <=2% THD(Linear Load), <=5% THD(Non-linear Load) |
Transfer Time | AC to DC | Zero |
Inverter to Bypass | Zero |
Waveform(Batt. Mode) | Pure Sine wave |
EFFICIENCY |
To AC Mode | 89% | 89% | 89% |
To Battery Mode | 86% | 88% | 87% |
BATTERY |
Long-run Model | Battery Numbers | Depending on the capacity of external batteries |
Charging Current(max.) | 4A | 4A |
Charging Voltage | 218.4VDC±1% |
INDICATORS |
LCD | UPS status, Load level, Battery level, Input / Output voltage, Discharge timer, and Fault indicators |
PHYSICAL |
Long-run Model | Dimension ,D×W×H(mm) | 592×250×576 | 592×250×576 |
Net Weight(kgs) | 28 | 40 | 40 |
ENVIRONMENT |
Humidity | 20-90% RH@ 0-40ºC(Non-condensing) |
Noise Level | Less than 50dBA@ 1 Meter |
MANAGMENT |
Smart RS-232/USB | Support Windows@2000/2003/XP/Vista/2008, Windows@7/8, Linux, Unix, and MAC |
Optional SNMP | Power management from SNMP manager and web browser |
*Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC. |
FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap
