China Top Brand Shantui Large 320HP Crawler Bulldozer (SD32)
Price: |
US $ 63000Unit |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1Unit |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
Prod Model: |
SD32 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operating Weight(Not Including Ripper): |
372000kg |
Bulldozer Blade (W*;H): |
3725*1200mm |
Engine Flywheel Power: |
235kw |
Overall Dimensions(Lxwxh): |
6880*4130*3725mm |
Engine Model: |
Cumminsnta855-C360s10 |
Max. Digging Depth (Mm): |
590mm |
Dozing Capacity: |
Straight Tilt Blade6.4 |
Number Of Carriers (Each Side): |
2 |
Number Of Track Rollers (Each Side): |
7 |
Number Of Track Shoes (Each Side): |
41 |
Type: |
Medium-sized Loader |
Walking Mode: |
Crawler |
Load And Unload Method: |
Front Discharge |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Product Description

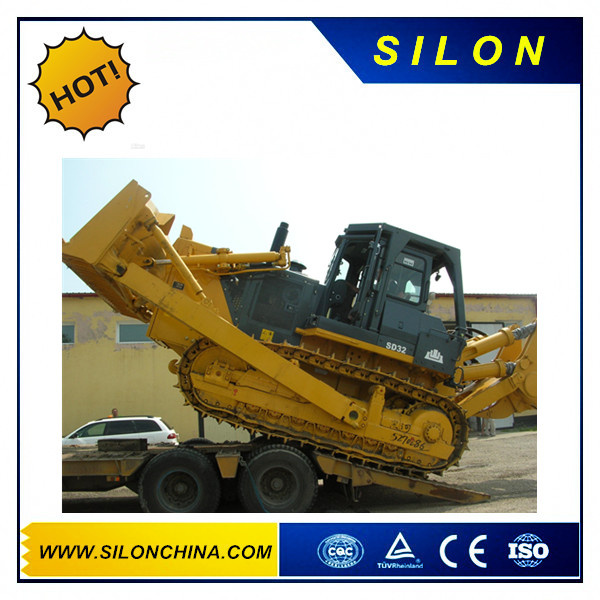

Based on the Shantui TY320B, the SD32 bulldozer was developed by Shantui for operation in earth moving projects with tough conditions. Equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provides reliable performance and convenient and flexible operation, the SD32 is the ideal medium size construction machine for earth moving projects.
Technical Parameters
Trade terms:
1. Shipping method: RORO or Bulk ship
2. Best delivery: In 7-20 working days after deposit
3. Payment terms: T/T(30% as deposit, 70% paid before delivery) or L/C
4. Packing: Nude, spare parts and tools into standard export cases
5. Guarantee: One year service after delivery.
Technical Parameters
ITEM | UNIT | SD32 |
L×W×H (Ripper not included) | mm | 6880×4130×3725 |
Operating weight (Ripper not included) | t | 37.2 |
Engine | - | CumminsNTA855-C360S10 |
Rated power | kW/rpm | 235/2000 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt bladeSemi-U bladeAngle blade |
Blade width | mm | Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 |
Dozing capacity | m3 | Straight tilt blade 10Semi-U blade 11.9Angle blade 6 |
Ma× drop below ground of blade | mm | 560 |
Lift height of blade | mm | 1560 |
Ripper type | - | Single ripperThree-shank ripper |
Ripping depth of ripper | mm | Single ripper 1250Three-shank ripper 842 |
Lifting height of ripper | mm | Single ripper 955Three-shank ripper 883 |
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 7 |
Number of track shoes (each side) | - | 41 |
Width of track shoe | mm | 560 |
Track gauge | mm | 2140 |
Ground length and ground pressure | mm/MPa | 3150-0.105 |
Pitch | mm | 228.6 |
Forward speed | km/h | 0-3.6 |
0-6.6 |
0-11.5 |
Reverse speed | km/h | 0-4.4 |
0-7.8 |
0-13.5 |
