Shenzhen OBTPA Technology Co., Ltd. >> China Wholesale 60W Programmable Timer for Public Address System

China Wholesale 60W Programmable Timer for Public Address System

Name: China Wholesale 60W Programmable Timer for Public Address System
Brand: china-manufacturer-directory.com
SKU: 753516835
Availability: InStock
Rating: 4.5 (60 reviews)

Supplier:	Shenzhen OBTPA Technology Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	OBT-9100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Timer Format:	24 Hours
Fir Control Voltage Input:	1 Channel 24V
Power Supply:	220V/50Hz
Output Voltage:	220V/50Hz
Power Consumption:	60W
Standby Power Consumption:	10W
Protection:	AC Fuse Times 1A
Color:	Black
Dimensions:	48445088mm
Weight:	7.5kg
Certification:	CCC
Application:	Public Place
Usage:	Public Place

Product Description

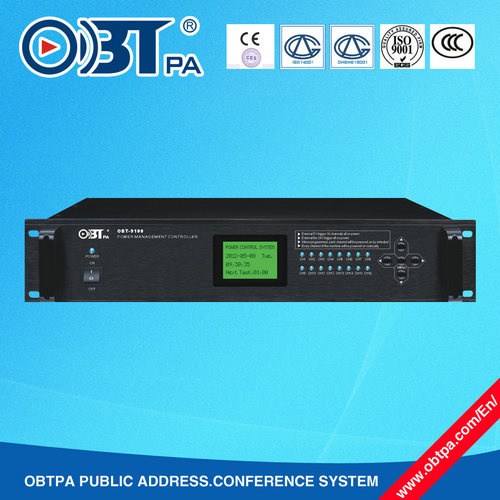

China wholesale 60W Programmable timer for public address system

Features:
1. Standard Rack Design (2U), black brushed aluminum faceplate, humane pumping hands, sophisticated technology, filling the high-grade temperament;
2. Large LCD display, graphical interface, easy to operate;
3. Program won't lost when the power is cut off, run automatically once the power is on again ,
4. Sixteen editable timing control power, the whole power can reach 6KVA, four kinds of power-on mode;
5. a short circuit trigger output interface, you can control sixteen power timing switches, extend regular power socket;
6. Big storage capacity, can be multi-step programming timing control power;
7. 0V trigger 16 channels all on Power, 0V is controlled by the central controller OBT-9000 and OBT-9300USB , achieve automatic control;
8. Fire 0V/24V trigger 16 channels all on Power ;

Technical parameters:

Model	OBT-9100
Time Format	24 hours
Fir Control Voltage Input	1 channel 24V
Upper Control Voltage Input	1 short circuit signal(0V)
Power Control Voltage Input	1 short circuit signal(0V)
Power Supply	~220V/50Hz
Programmable Output Quantity	16 channels
Output Power Consumption	Total Power Consumption≤40KW,Single Channel Power Consumption≤20KW
Power Consumption	60W
Standby Power Consumption	10W
Protection	AC FUSE×1A
Dimensions	525×475×170mm
Weight	7.5Kg

Lead time:

Sample: In stock

Mass production: 5 working days

Service:

Good Service:

1. Professional sales reply you enquiry in 24Hrs

2. Feedback of complaint in 24Hrs

3. OEM/ODM are welcomed

4. 2 years Warranty

Warranty:

1. All products have been strictly Quality Checked before packing.

2. All products have been well packed before shipping.

3. All products with 2 years warranty.

After Sales Service:

1. We are always online to solve all your request.

2. Any faulty product, we can send replacement to you freely

3. To ensure your receive the order tax free upon import, we are willing to declare lower value.

Shenzen OBTPA Technology Co., Ltd is a collecton Research and Development, production, sales, public addess series products of the high-tech industry type company, which was located at Shenzhen, Guangdong. Since the company was founded in 1999, adhering to the consant innovation and creat value for the customer.
