Product Specifications
| Prod Model: |
ALF-P127 |
| Markets: |
South America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Description: |

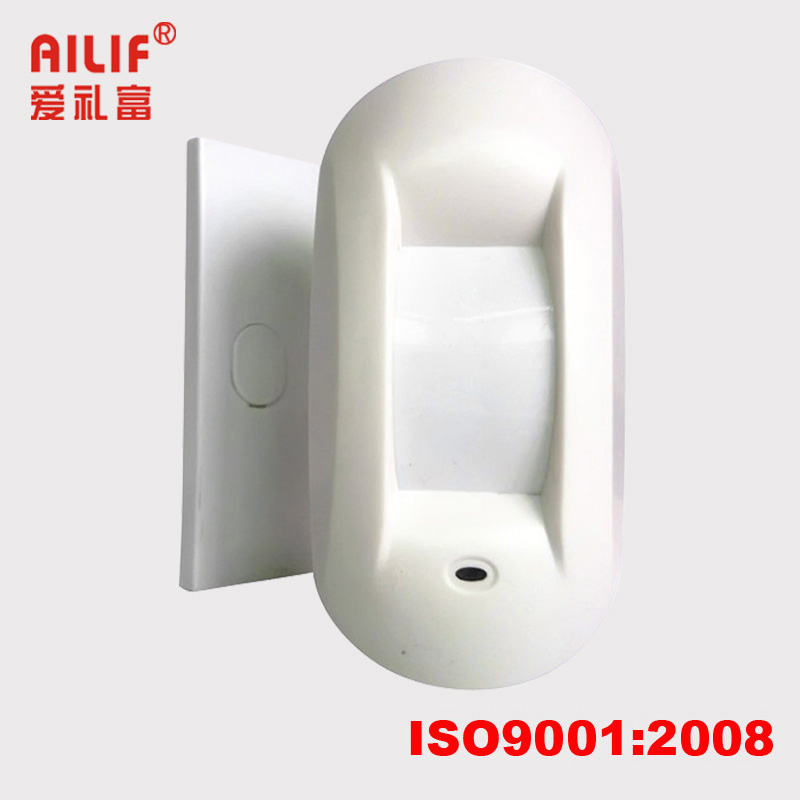

China Wired Small PIR Motion Sensor Alf-P127 |
| Working Voltage: |
DC10V~16V |
| Working Current: |
≤20mA (DC12V) |
| Detection Distance: |
6m/11m Optional |
| Detection Angle: |
15 Degree |
| Mounting Heigh: |
1.8m~2.5m( Suggest 2m ) |
| Demension: |
94mm*49mm*35mm |
| Sensor Type: |
Pyroelectric PIR Sensor |
| Product Certificate: |
CE, FCC, RoHS, IP55 |
| Company Certificate: |
ISO9001:2008 |
| Installation Mode: |
Wall Mounted |
| Usage: |
Anti-theft |
Product Description
Description of wired small pir motion sensor:
The product is a wired curtain PIR detector. It adopts advanced technology in signal processing, and
Provides an excellent detection ability. When an intruder enter into the detecting area, an infrared
Heating signal, received by the Fresnel lens, would be sent out and focused on the infrared sensor.
After compare, analysis and calculation by a microprocessor, it would output an accurate alarm signal.
It is used for safety protection in the dwelling houses, villas, plant warehouses, shopping malls offices
And so on.
Features of wired small pir motion sensor:
1. Adopting MCU control
2. Auto temperature compensation
3. Resisting white light strength>6500LUX
4. Alarm output: NC/NO optional
5. LED ON/OFF optional
6. Adopt SMT design, enhance the ability of diamagnetic
Technical Specification of wired small pir motion sensor:
1. Working voltage: DC10V~16V
2. Working current: ≤ 20mA (DC12V)
3. Detection distance: 6m/11m optional
4. Detection angle: 15 degree
5. Mounting: Wall mounted
6. Mounting height: 1.8m~2.5m ( suggest 2m )
7. Type of sensor: Dual low noise pyroelectric infrared sensor
8. Operating temperature: -10~+50 centigrade
9. Environment humidity: ≤ 95%RH(no condensation)
10. Alarm switch: Electromagnetic relay or solid state optronics relay optional
11. Alarm output: NC/NO optional, contact capacity: 28VDC, 100mA
12. Anti-dismantle switch: NC, no voltage output, contact capacity: 28VDC, 100mA
13. Demension: 94mm*49mm*35mm
14. Sensor type: Curtain PIR detector
Advantage of wired small pir motion sensor:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality for wired small pir motion sensor is our long term target.
Company Introduction:
(1)Having our own factory which provides you the most competitive price for wired small pir motion sensor.
(2CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information for wired small pir motion sensor.
|
Model |
China Wired Small PIR Motion Sensor (ALF-P127) |
|
Working voltage |
DC10V~16V |
|
Working current |
≤ 20mA (DC12V) |
|
Detection distance |
6m/11m optional |
|
Detection angle |
15 degree |
|
Mounting |
Wall mounted |
|
Mounting height |
1.8m~2.5m ( suggest 2m ) |
|
Type of sensor |
Dual low noise pyroelectric infrared sensor |
|
Operating temperature |
-10~+50 centigrade |
|
Environment humidity |
≤ 95%RH(no condensation) |
|
Alarm switch |
Electromagnetic relay or solid state optronics relay optional |
|
Alarm output |
NC/NO optional, contact capacity: 28VDC, 100mA |
|
Anti-dismantle switch |
NC, no voltage output, contact capacity: 28VDC, 100mA |
|
Demension |
94mm*49mm*35mm |
|
Sensor type |
Curtain PIR detector |
