Product Specifications
| Prod Model: |
TF-2012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Furniture Manufacture Equipment |
| Certification: |
CE |
Product Description
Feature of particle board:
Particle board is made of such wood material as undersized tree, slash wood, surplusage of wood processing and etc., the board has good performance in sound insulation, and oth-proof, and widely applied for furniture, construction, packing, inner fixture of vehicle and ship, etc.
Complete set of Particle board machinery with various kinds of capacity.
Particle board is made from small-diameter wood, branches, wood residues and non-wood agricultural residues via Chip preparation, drying, spreading and hot press section. Finished boards can be used for furniture, building, packing, vehicle and decoration and lamination.
1. Chip preparation section
Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knife-ring flaker by which the chips are turned to flakes, then the flake stored in wet flake bin.
2. Drying and sifting section
The flakes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; Oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.
3. Glue regulating and applying section
After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue independently in their glue mixers respectively.

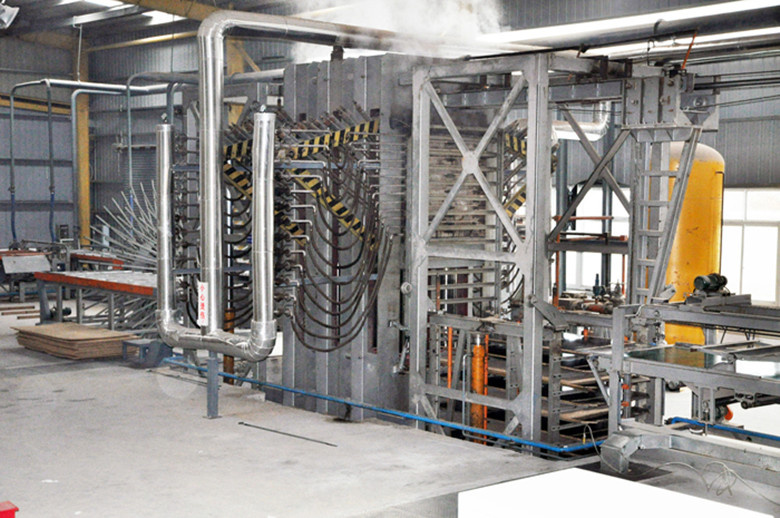

4. Forming and hot-pressing section
The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.
5. Cooling and sizing section
The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.
6. Sanding Section
The board are sanded, checked and stored
PLC control is used in mat-forming section.
Flow chart of particle board production:
Shandong Tengfei Mechanical and Electrical Technology Co., Ltd. is specialized in the designing, development, manufacture and installation of gypsum machinery, including gypsum board production line, gypsum powder production line, gypsum block production line and gypsum board ceiling tile machine.
The company has been adhering to the principle of "Quality First" and "Customer First", the first-class quality product has been approved by our domestic and foreign customers. The product has been sold to more than 20 provinces in China, and exported to many areas and countries in the world, such as Turkey, Georgia, Russia, Ethiopia, Egypt, MID-east, Thailand, Columbia, Mexico, America and so on.
We welcome friends from all over the world for further progress and mutual development.
