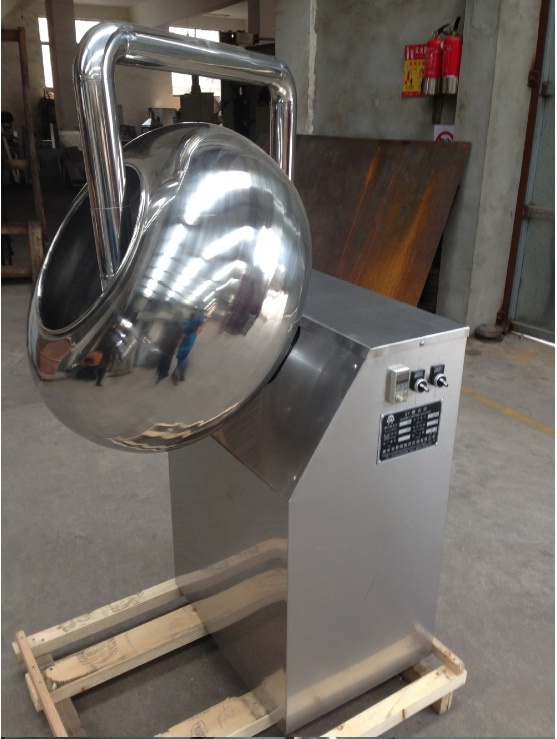

Chocolate Coating Pan Machine

Name: Chocolate Coating Pan Machine
Brand: china-manufacturer-directory.com
SKU: 767115005
Availability: InStock
Rating: 4.4 (132 reviews)

Price:	US $ 1000-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

BY-600 Chocolate Coating Pan Machine

1. Introduction:
This machine is mainly used for making pellet, coating film on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.
Such as:chocolate polishing, peanut coating, coating sugar, adding flavor, producing pearl dumplings, and pelletizing the desiccant&aluminium hydroxide, porcelain ball making, etc.
This machine consist of main body, worm wheel box, coating pan, heating device, blower, blower, electrical equipment, etc. The transmission process that the motor drive the worm wheel and worm via triangle belt make the coating pan rotate.Then the material revolves up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.

2. Technical Parameter:

Model	BY200	BY400	BY600	BY800	BY1000	BY1250	BY1500
Dia sugarcoating dish(mm)	200	400	600	800	1000	1250	1500
Capacity(kg/time)	1	5	15	30-50	50-70	80-150	300-400
Rotation Speed(r/min)	46	46	36	36	32	28	26
Power of motor(KW)	0.37	0.37	0.75	1.5	1.5	3	5.5
Power of fan(KW)	0.075	0.075	0.06	0.12	0.12	0.18	0.37
Power of heat(KW)	1.2	1.2	2	2	3	5	6
Overall size(mm)	500350 700	550400 800	800600 900	1000800 1430	11001000 1560	12501200 1820	15001500 1980
Weight(kg)	36	38	85	205	220	350	600

Prod Model:	BY-600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Tablet Coating Machine
Style:	Automatic
Business Type:	Machine Manufacturer
Delivery:	20 Days
Certificate:	CE SGS
Type:	Electrostatic Spraying Equipment
Certification:	SGS
Method Type:	Automatic
Application:	Tablet Coating
Coating:	Liquid
