Supplier: | Jiangxi Province County Mining Machinery Factory |
---|---|
Price: | Negotiable/Set |
Min Order: | 1/Set |
Quantity:: | |
Trade Terms: | FOB,CFR,EXW |
![]() |
Prod Model: | CM-02 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: | for Chrome Ore Separating |
Engineer Installation: | Provided |
Certificate: | ISO9001-2000 |
Spare Part: | Provided |
Sample Test: | Provided |
OEM: | Acceptable |
Mining Object: | Preparation Equipment |
Type: | Mineral Processing & Screening Equipment |
Jiangxi Shicheng Mine Machinery Factory is a metallurgical mineral processing machinery enterprise which has been specialized in researching, manufacturing, sales and tracking service especially in the gold, tin, wolfram, chrome, iron separting plant since 1985.

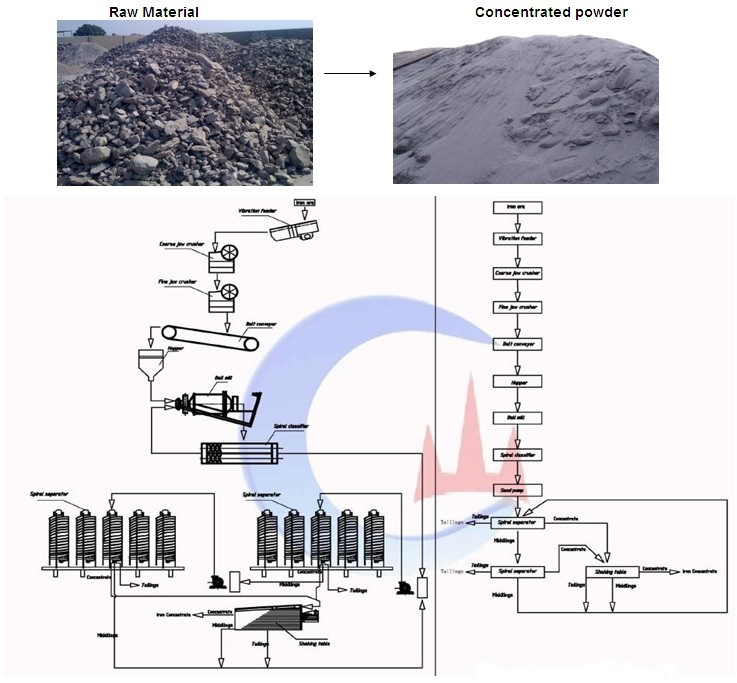

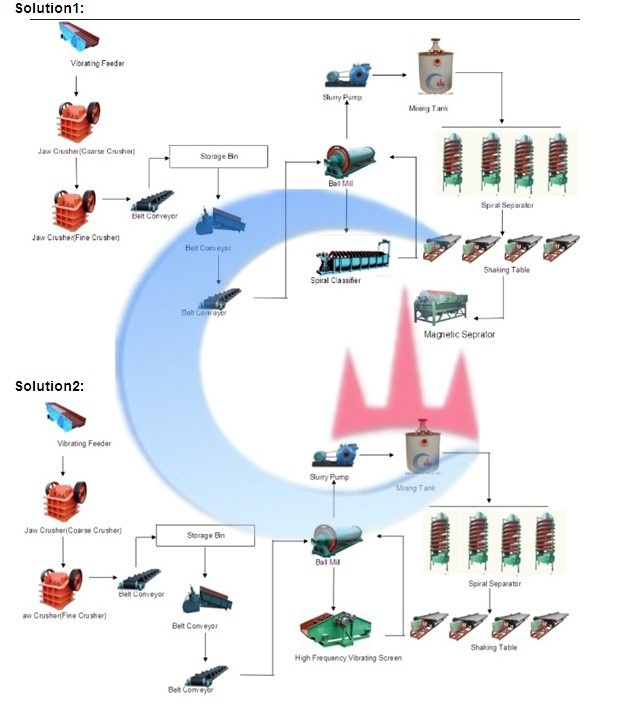

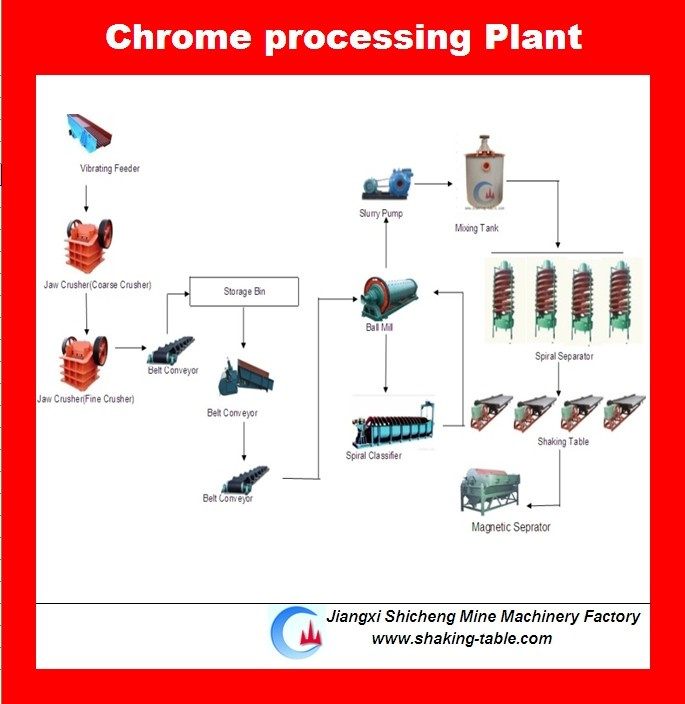

OEM is acceptable in our factory. And our professional engineer will help you design the flowchart of chrome separating plant.
For more details, welcome to contact us as bellowing directly:
Bella
JXSC Mine Machinery Factory
Mob: +86-15779860835
Model | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
Outside dia (mm) | 1500 | 1200 | 900 | 600 | 400 | |
pitch (mm) | 540, 720 | 900, 720, 540 | 675, 540, 405 | 450, 360, 270 | 240, 180 | |
Pitch Dia Ratio | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.6, 0.45 | |
Lateral slope | 9° | 9° | 9° | 9° | 9° | |
Maximum starts per column | 4-2 | 4-2 | 4-2 | 2 | 2 | |
Feeding Size (mm) | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
Feeding Density(%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 | |
Capacity (T/H) | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
External Size |
Length (mm) | 1560 | 1360 | 1060 | 700 | 460 |
Width (mm) | 1560 | 1360 | 1060 | 700 | 460 | |
Height (mm) | 5230 | 5230 | 4000 | 2600 | 1500 | |
Weight (Kg) | 800 | 600 | 400 | 150 | 50 |
