Product Specifications
| Prod Model: |
Many model |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel ,SUS304,316 |
| Working Pressure: |
0.05-0.6mpa |
| Working Remperature: |
Normal Temperature |
| Inlet\Outlet: |
Flange Connection |
| Surface Treatment: |
Machanical Polishing |
| Diameter: |
325-2200mm |
| Filter Media: |
Quartz Sand ,Activated Carbon,Manganese Sand |
| Type: |
Reverse Osmosis |
| Usage: |
Chemical Industry |
| Motive Force: |
Electric power |
| Certification: |
CE |

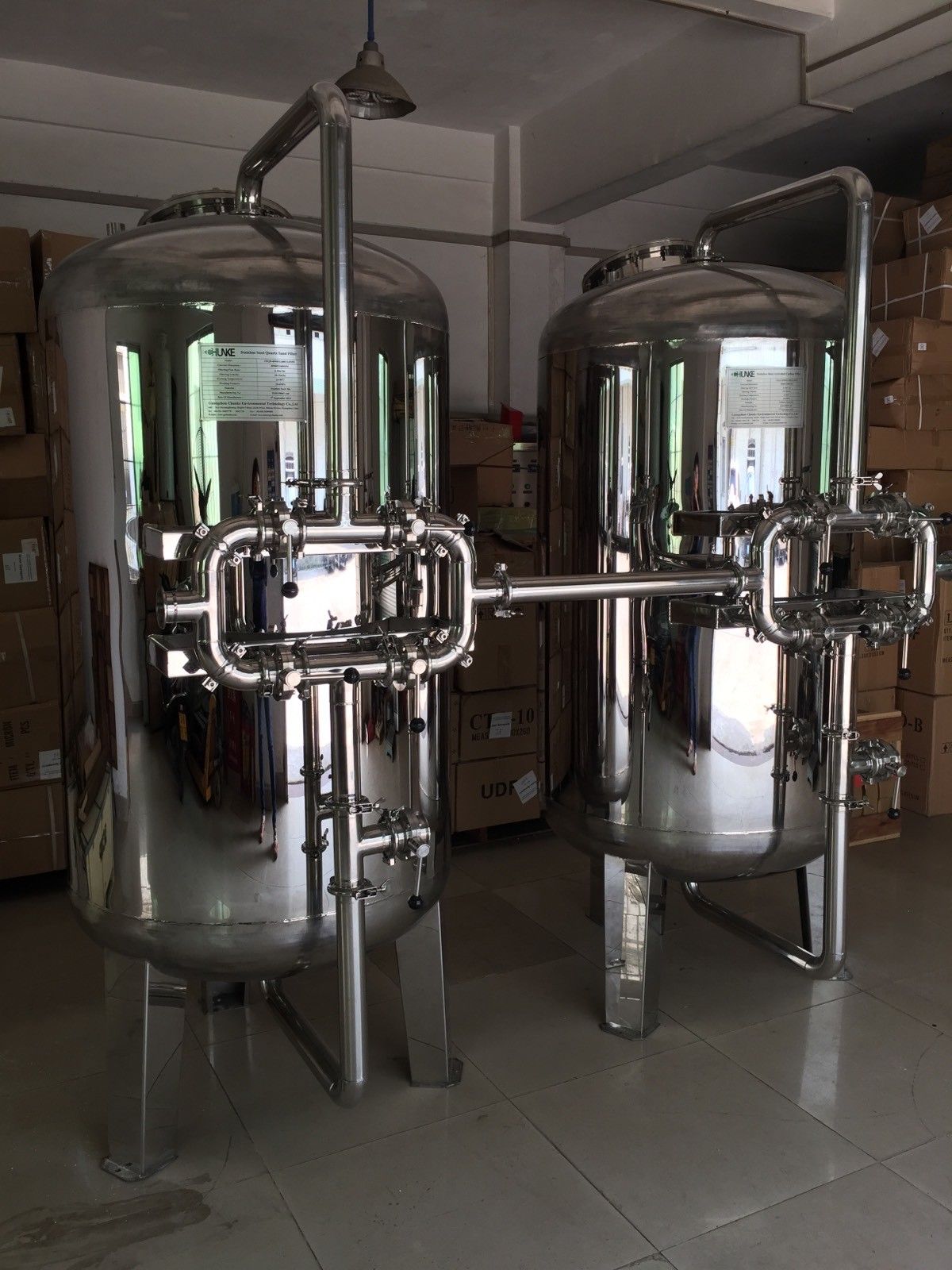

Product Description
Working principle
Machine filtering is to use one or several filter medium, under the pressure of certain, make through the medium, bioburden remove impurities, get filtrate, so as to achieve the purpose of filter. Inside pack packing is commonly: Quartz sand, anthracite, particle porous ceramics, manganese sand etc, user can choose according to the actual situation of use
Application:
Machine filtering is widely applied in water treatment process, mainly used in water treatment except turbid, reverse osmosis and ion exchange soften the desalination system preamp pretreatment, also can used for surface water and groundwater except sediment. Fill turbidity requirements less than 20 degrees, effluent turbidity up to 3 degrees Celsius.
Technical parameters:
Diameter: 300*2800mm
Height: 1200*4200mm
Flow: 0.5-150m3/h
Work pressure: Less than 0.4Mpa
Working temperature: Normal temperature
Surface treatment: Mirror polishing, matt, carbon steel spray paint
Material: SUS304, SUS316, SUS316L, carbon steel anticorrosive
Packing: Quartz sand, manganese sand, carbon, resin
| Model | Filter | Softener | Diameter | Total height | Inlet port | Outlet port | Feed port | Discharge port | Vent valve |
| CK-Φ325*1700*1.5 | 0.8-1.2T/H | 2-2.4T/H | 325mm | 1800mm | DN25 | 1'' | Φ105mm | Φ105mm | 3/4'' |
| CK-Φ350*1760*1.5 | 0.9-1.4 | 2.4-2.8 | 350mm | 1760mm | DN25 | 1'' | Φ105mm | Φ105mm | 3/4'' |
| CK-Φ400*1800*2.0 | 1.2-1.8 | 3.1-3.7 | 400mm | 1800mm | DN32 | 1.2'' | Φ150mm | Φ105mm | 3/4'' |
| CK-Φ500*1900*2.0 | 1.9-2.9 | 4.9-5.8 | 500mm | 1900mm | DN40 | 1.5'' | Φ219mm | Φ150mm | 1'' |
| CK-Φ600*1950*2.0 | 2.8-4.2 | 7-8.4 | 600mm | 1950mm | DN50 | 2'' | Φ300mm | Φ150mm | 1'' |
| CK-Φ700*2015*2.0 | 3.8-5.7 | 9.6-11.5 | 700mm | 2015mm | DN50 | 2'' | Φ300mm | Φ150mm | 1'' |
| CK-Φ800*2050*2.0 | 5.0-7.5 | 12.5-15 | 800mm | 2050mm | DN50 | 2'' | Φ400mm | Φ219mm | 1'' |
| CK-Φ900*2400*2.0 | 6.3-9.5 | 15.9-19 | 900mm | 2400mm | DN50 | 2'' | Φ400mm | Φ219mm | 1'' |
| CK-Φ1000*2500*2.0 | 7.8-11.8 | 19.6-23.5 | 1000mm | 2500mm | DN50 | 2'' | Φ400mm | Φ219mm | 1'' |
Packaging & Shipping
Wooden case or carton box.
Our Services
Technical support and online service.
Company Information
About our company:
Guangzhou Chunke environmental Technology Co., Ltd is specialized in: Cartridge Filter, Ion Exchange, Imitation FRP Barrels, Ozone Mixing Tower, Sterile Water Tank, Stainless steel Membrane shells, Hollow-fiber Membrane, Ultraviolet Radiation Sterilization Device, Ozone Generator, Water Treatment Equipment and so on.
Guangzhou Chunke Environmental Technology Co., Ltd. In the water treatment industry, with its extensive field experience and technical development capabilities, combined with the global industrial water treatment and new materials, new technologies developed on the basis of a series of technologically advanced, affordable, reliable water treatment systems, industrial water treatment systems company dedicated to product development, design and manufacturing, equipment supply, Project installation, technical support, service, etc., and create a leading, high-quality, highly efficient and robust water treatment program, widely used in electricity, electronics, electroplating, chemical, pharmaceutical, food and beverage, building materials, domestic water and other fields.
Services Include:
Electric Power Industry: Boiler feed water.
Electronics industry: Semiconductor industry ultra pure water, clean water circuit.
Food industry: Drinking pure water, water, formula, process water, wash water.
Pharmaceutical industry: Process water, preparation of water, washing water, water for injection, drug concentration and separation.
Chemical industry: Production of process water, wastewater treatment, concentration and separation of valuable substances.
Drinking water: Pure water, drinking water purification.
Desalination: Island address, coastal water areas, ships, water and oil fiel production and living water.
Water Reuse: For electronics factory, PCB, chemical plants and so on.
