Product Specifications
| Prod Model: |
#Ny-Kr-Hm-45120 |
| Markets: |
North America,South America,Southeast Asia,Oceania,Mid East,Western Europe |
| Commodity: |
Circuit Board for LED |
| Item No.: |
#Ny-Kr-Hm-45120 |
| Base Material/Laminate Details: |
1.6mm Fr-4(Tg135+/-5) |
| Board Size: |
312mm*332mm |
| Finished Copper Weight/Thickness: |
1oz |
| Soldermask Details: |
Top Green, Bottom Black(Lacklustre Black) |
| Silkscreen/Legend: |
White |
| Surface Finishing/Treatment: |
HASL Lead Free |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
Product Description

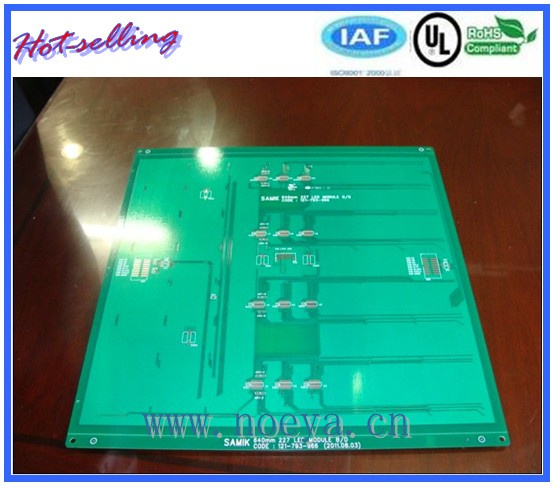

Circuit board for LED lamps:
Technical details:
1)layer count: 2 layer
2)material details: 1.6mmFR-4(TG135), 1oz finished copper weight
3)Min. Board thickness:
0.4mm for 2 layers and 4 layers
0.8mm for 6 layers
4)available finished copper weight: 0.5-4oz,
Available board thickness: 0.4mm-3.2mm
5)Max board size: 600mm*600mm
6)Hot air finishing, lead free
7)Min line width/spacing: 0.22mm
Min, Hole size(aperture): 0.34mm, hole tolerance: +/-0.05mm
Min. Solder bridge: 0.10mm, Dimension tolerance: +/-0.1mm
6)Outline/profile/contour: CNC Routing, CNC milling+v-cutting
7)Lead time: 4 days for prototypes, 7-9 days for mass production
8)Certification: RoHS&UL
9)application: LED
Board size details and panelized details:
3)circuit characteristic: Simple; Each PC size: 350mm*380mm
Panel details: Yes, each panel with 1 PCS
Breaking off strips: Yes 2*5mm
Advantages: 1) Best quality and attractive price.
2)Best on time shipping
3)with 100%E-test
4)Customer service
5)Instant quote
6)No minimum lot Requirements
7)Ultra modern manufacturing facility
Main markets:
Korea and Canada
Hot-selling time: Hot selling in Mar. 2012
Capacity: 8, 000sqm/month for 6 layers PCB; 10, 000sqm/month for 4 layers PCB; 12, 000sqm/month for 2 layers PCB; 15, 000sqm/month for 1 layer PCB
|
Bare PCB Delivery Time |
|
Layer |
Prototype |
Mass production (Above 30(Square) |
|
1L |
Quick Sample: 12Hours Usual time: 1-2days |
5-7days |
|
2L |
Quick Sample: 24Hours Usual time: 3-4days |
7-9days |
|
4L |
Quick Sample: 48Hours Usual time: 5-7days |
9-10days |
|
6L |
Quick Sample: 72Hours Usual time: 6-8days |
10-12days |
|
Base material |
FR-1(94v0), FR-4, CEM-1 |
Compliant |
UL, RoHs, ISO9001-2000 |
|
Max Board size |
600*600mm |
Standard |
IPC-A-600F, IPC-D-300G, MIL-STD-105D LEVEL II |
|
Board thickness |
0.4-3.2mm |
Application |
Home appliances, electronics, didital camera, LCD TV sets, medical equipments, telecommunication, LED lightings, street light, mobile phone, computer, laptop test equipment and power meter, electrical weighing scale, desk lamp, microphone, spacer, controller, receiver, transmitter, consumer electronics, etc. |
|
Copper thickness |
0.5-3oz |
Acceptable |
Small quantity and prototypes |
|
Special tech |
BGA, PTH, model punching hole/Outline, filling vias through hot oil perm, Blind and buried vias |
Lead time |
5-7days for prototypes, 9-13days for mass production |
|
Profile/Outline |
V-scoring, V-cutting, model punching, etching, milling, routing |
Available Service |
OEM, 24hrs service for fast prototype |
|
Surface treatment |
HASL, OSP, Immersion gold, gold plated(coating) |
trade terms |
EXW, FOBshenzhen, CIF----------Negotiable |
|
Best price to |
Mid-east(Egypt, Iran, Israel, Syria), USA, South america, India, south Africa and Europ |
shipping terms |
By ocean, By air, By international express(Fedex, DHL, UPS...) |
|
Main markets |
USA, Korea, Mid-east(Egypt, Iran, Isreal, Syria), Europea |
Package |
innerpackage: vacuum+desiccant outerpackage: Carton |
Shenzhen Noeya Technology Co., Ltd. is a professional high-tech PCB manufacturer, which was built in 2003. Over years, our scale has been expanding: More than 300 workers, more than 1, 500m² For day-output, more than 500, 000m² For year-output.
Our main products mainly applied FR-4(TG135-170), CEM-1 and FR-1(94V0). The finished PCB boards including Single and double layer PCB, 4 layers PCB, 6 layer and 8 layer multilayer PCB, High Frequency PCB(HFPCB), HDI PCB, High density PCB with blind and buried-vias. Especially we are strong in single layer, double layer, 4 layers and 6 layers PCB board, which are widely applied in LED lightings, computers, Telecommunications, Auto, digital, home appliance and consumer electronics. Selling well both at home and abroad.
We've got a contingent of producing and sales team. With advanced processed devices and checking and testing technology. We are cooperating with much domestic and abroad branded business, like Gree, FOSS, BYD Auto and Gospell etc. We abide by the national laws and regulations, pay emphasis on environment and environmental production. We have already got ISO9001: 2000. Our products quality can meet IPC-A-600F \IPC-D-600G, MIL-STD-105D LEVEL II \and UL STANDARD. With strictly quality checking and strictly following-up the goods, supply exact lead time and quality products.
We will take a series of special training to improve our staff's professional skills and service quality and speed so that our management system can be enter into normalization and informationization.
