Sograce International Corporation Limited >> Circuit Board with Assembly Service

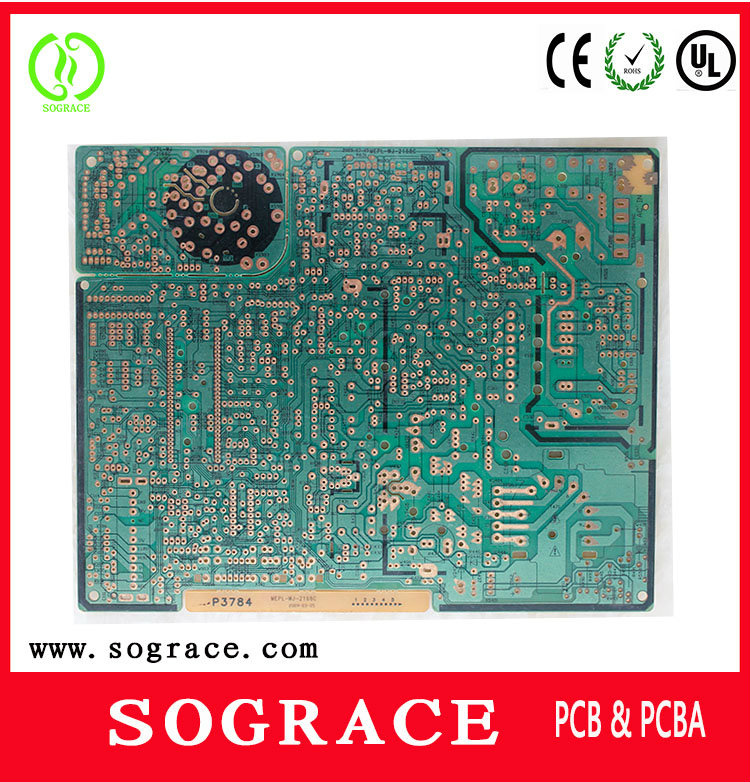

Circuit Board with Assembly Service

Name: Circuit Board with Assembly Service
Brand: china-manufacturer-directory.com
SKU: 744827975
Availability: InStock
Rating: 4.8 (149 reviews)

Supplier:	Sograce International Corporation Limited
Price:	US $ 1peice
Min Order:	1peice
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	sograce
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Board Size:	457 X 610 Mm
Layers:	2-24(Layers)
Min Line Width:	0.10mm
Min Hole Width:	0.20mm
Min Line Space:	0.10mm
Pth Wall Thickness:	0.020mm
Mask Ink Color:	Green, Red, Black, Blue Ect
Silkscreen Color:	White
Surface Treatment:	Immersion Gold, HASL
PCB Testing:	E-Testing; Flying Probe Testing
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Base Material:	Fr4
Brand:	Sograce

Product Description

Choose Sograce PCB, choose your perfect pcb board!

Product Feature:

1. OEM&ODM are availble, different shape for your choice

2. Programmable, it can change different colors and lighting ways

3. Green and Energy saving, best for your project

Why choose us?

1. Your inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM, we can help you to design and put into product.

4. Distributorship are offered for your unique design and some our current models

5. Protection of your sales area, ideas of design and all your private information

Trade Terms:

1. Payment: T/T in advance (Western Union , payple is welcomed)

2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.

3. Sample can be delivered in 3days

4. Shipping freight are quoted under your requests

5. Shipping port: Shen zhen,Mainland China

6. Discounts are offered based on order quantities

7. MOQ: 1PCS

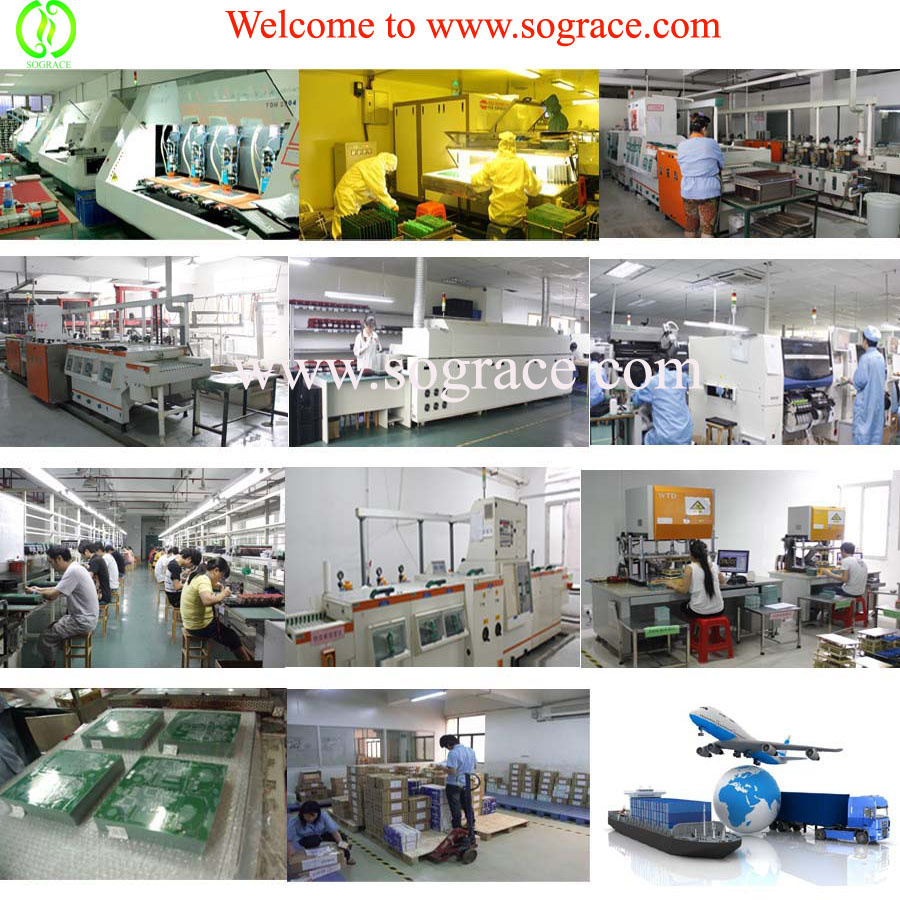

Our Factory:

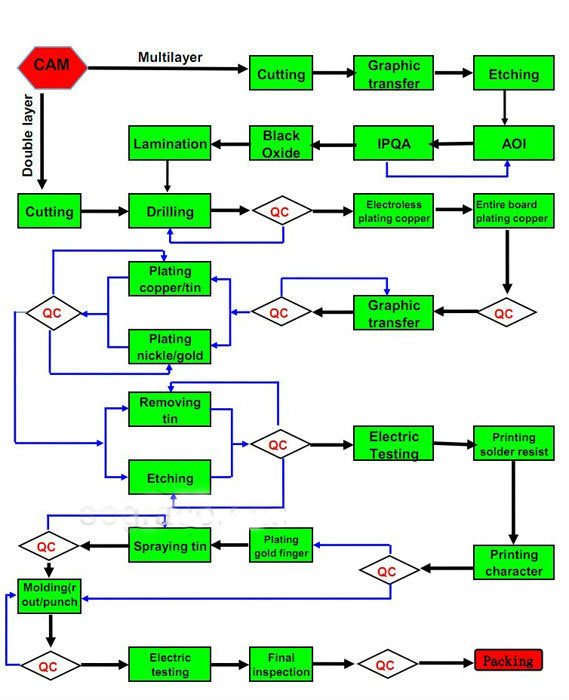

Manufacture progress:

Package & Shipping Methods:

1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement

Payment method:

1. T/T
2. Paypal
3. Western Union

We have a variety of advanced production equipments, excellent engineering and technical personnels, accompany with the mature management and service system.

1	Layers	Single Sided,2 to 24 Layer
2	Board material type	FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more
3	Compound material lamination	4 to 6 layers
4	Maximum dimension	610 x 600
5	Dimension tolerance	±0.13mm
6	Board thickness coverage	0.2 to 6.00mm
7	Board thickness tolerance	Board thickness≤1.0mm: +/-0.1mm 1 Board thickness>2.0mm: +/-8%
8	DK thickness	0.076 to 6.00mm
9	Minimum line width	0.10mm
10	Minimum line space	0.10mm
11	Outer layer copper thickness	8.75 to 175µm
12	Inner layer copper thickness	17.5 to 175µm
13	Drilling hole diameter (mechanical drill)	0.25 to 6.00mm
14	Finished hole diameter (mechanical drill)	0.20 to 6.00mm
15	Hole diameter tolerance (mechanical drill)	0.05mm
16	Hole position tolerance (mechanical drill)	0.075mm
17	Laser drill hole size	0.10mm
18	Board thickness and hole diameter ratio	10:01
19	Solder mask type	Green, Yellow, Black, Purple, Blue, White and Red
20	Minimum solder mask	Ø0.10mm
21	Minimum size of solder mask separation ring	0.05mm
22	Solder mask oil plug hole diameter	0.25 to 0.60mm
23	Impedance control tolerance	±10%
24	Surface finish	Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger
25	Certificate	ROHS, ISO9001:2008, SGS, UL certificate
26	Acceptable file format	Gerber file,PROTEL series,PADS series,POWER PCB series,AutoCAD

Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer PCB, and as well as assembly service.

Established in June, 2006, our factory is located in Wanxia Industrial zone, Xinhe Road, Shajing Town, Baoan district, Shenzhen, China. We have a variety of advanced production equipment, excellent engineering and technical personnel, accompanying with the mature management and service system. Since 2006, we have successfully serviced customers in the United States, Canada, Western Europe and other regions of the world spanning many applications, business lines, and industry sectors.

Since establishment, we have been constantly improving all kinds of equipments and advanced techniques, striving to develop and produce PCB and PCBA which are used for high-tech products, such as LED, communication, network, electric power, industrial control, medical treatment, instrumentation, military projects and computer peripheral products ect.

Our products meet IEC\IPC\DIN\MIN standard, and behave ISO-9001 quality system, UL and RoHS certificate. Fast lead time and competitive price with high quality are our advantages. Production capacity is 20, 000M2 per month, the PCB lead time is within 10days, and most can be within 7days. We also established a prototype team to meet customer' S prototype needs, and the prototype lead time often can be within 3days.

With our hard work, we always satisfy the customers' High quality demand in a fast lead time under our strict management...Following the principle of "be sincere with every customer", we treat the product quality as our life. We are glad to provide you one-stop services from schematic capture and routing, PCB producing to SMT.

"High quality, Competitive price and Excellent service" is our mission which also wins the customers' Trust. Our purpose is to produce the most effective product under the advisable cost. All our consideration is built on customers' Benefit, and we benefit mutually from the business cooperation. Basing on this point, we have built a long term business relationship with lots of customers around the world, just like a blooming flowers. Warmly welcome more customers to visit and cooperate with us!
