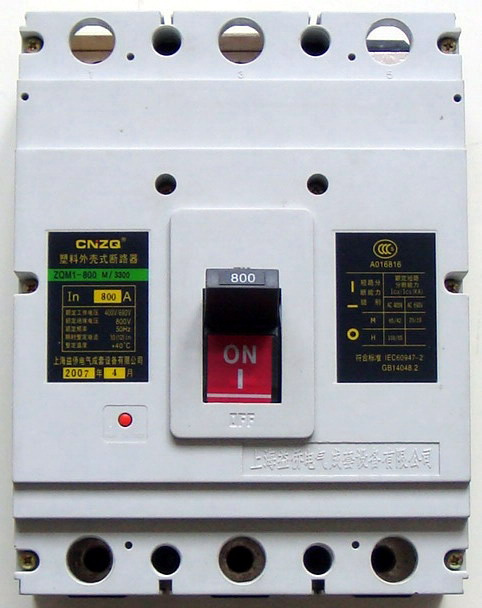

Circuit Breaker

Product Specifications

Prod Model:	ZQM1 MCCB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White, Black, etc
Rated Current:	up to 800A
Rated Voltage:	up to 690V
Rated Insulating Voltage:	up to 800V
Type:	Circuit Breaker
Function:	Circuit-Breaker Failure Protection
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Moulded Case
Structure:	Moulded Case Circuit Breaker

Product Description

Circuit breaker

The following are details about MCCB(moulded case circuit breaker)
1. Rated Current: Up to 800A
2. Rated Voltage: Up to 690V
3. Suitable AC: 50Hz
4. Color: White, black, yellow, etc
5. Usage: Protecing electrical equipment from overload, shot circuit, it also can be used for infrequently operating and isolating
6. We can design for each customer's demands
7. Price are competive and quality and first class
8. Rated Isolating Voltage: 800V

WORKING CONDITION
1. Not over altitude 2000m
2. Ambient temperature is between -5 degree to +45 degree
3. Withstand the influence of moist air
4. Withstand the influence of smoke fog, salt mist.
5. Withsand the influence of fungus
6. The max gradient is? 22.5 degree
7. Working reliably under the condition of normal vibration in ship
8. Working reliably under the condition of earthquake(4G)
9. The pole number 1P, 2P, 3P, 4P
