Product Specifications
| Prod Model: |
HL-225-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Hl-225-E |
| Internal Dimensions W*H*D (Mm): |
600*750*500 |
| External Dimensions W*H*D (Mm): |
1200*1900*1150 |
| High Temperature: |
150 Degree |
| Low Temperature: |
-60 Degree |
| After-Sale Service: |
Feedback Within 2 Hours |
| Temperature Rising Approx: |
0.1~3.0 Degree/Min |
| Temperature Falling Approx: |
0.1~1.5 Degree/Min; |
| Approx. Weight (Kg): |
250 |
| Power: |
AC 220V, 1 3 Lines,50/60Hz |
| Type: |
Measurement Type |
Product Description

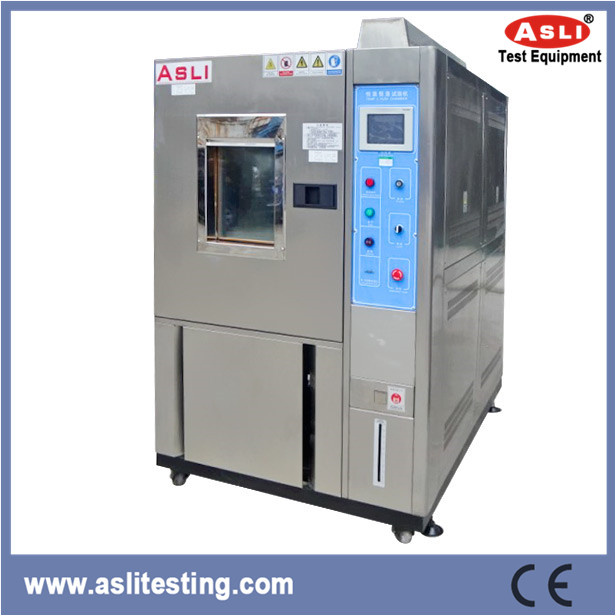

Circulation Temperature Test Instrument
Application:
High low Temperature Cycling Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Inner door with operation hole (optional)
Entrance hole for test wire, Dia. 50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication Interface
Circulation Temperature Test Instrument features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for observation of sample under test, with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time.
7. The control unit has the functions of multiples segment program editing function.
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.
Short introduction about ASLi factory:
ASLI, as a leading environmental test chamber supplier from china, has more than 25 year's experience in environmental test chamber manufacture. ASLI boost his own technical team in environmental test chamber R&D, and it also introduces the advance quality control method in environmental test chamber production. Our environmental test chamber series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN. Circulation Temperature Test Instrument is our star products, and we had obtained the CE certification for this machine
Warranty: One year free warranty for whole set machine, lifelong time maintainance.
After-sale service: Feedback within 2 hours after get the call.
Service: OEM service, Design service, Buyer lable service.
If you want to learn more Circulation Temperature Test Instrument knowledge, welcome to contact us at any time
|
technical parameters: |
|
Model |
HL-225-E |
|
Internal Dimensions W*H*D (mm) |
600*750*500 |
|
External Dimensions W*H*D (mm) |
1200*1900*1150 |
|
Temperature Range |
Low Temperature : -60 degree
High Temperature 150 degree |
|
Analytic Accuracy / Distribution Uniformity of Temperature |
0.1 degree / +/-2.0 degree |
|
Control Accuracy of Temperature |
+/-0.5 degree |
|
Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1~3.0 degree/min ;
temperature falling approx. 0.1~1.5 degree/min;
( The Falling Speed Rate Min.1.5 degree per minute is a special optional condition) |
|
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. |
|
Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
|
Cooling System |
Wind cooled or water cooled,single segment compressor for -40 degree, double segment compressor for -70 degree |
|
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system |
|
Optional Accessories |
Inner door with operation hole(Optional), Recorder(optional),Dehumidifier |
|
Compressor |
French Tecumseh Brand,Germany Bizer Brand |
|
Power |
AC 220V, 1 3 Lines,50/60HZ |
|
Approx. Weight (Kg) |
250 |
