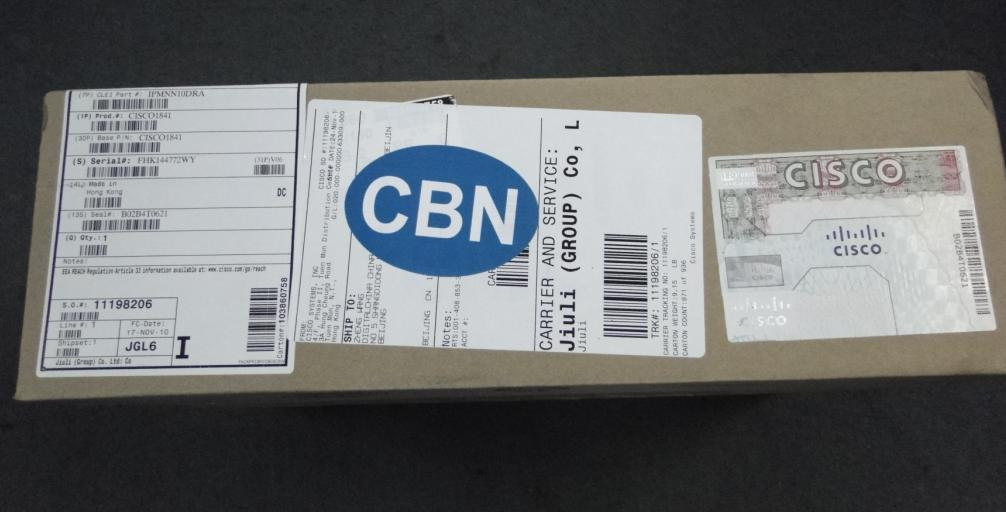

Cisco Router (2801/2811/2821) Cisco Original

Product Specifications

Prod Model:	2801/2811/2821 2900 series 3900 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Wired
Network Site:	Border Router
Transfer Rate:	10/100/1000Mbps
Firewall:	Without Firewall
Ports:	24
Port Structure:	Modular
Application:	SOHO
Network:	WCDMA
Performance:	Line-Rate Router
Architecture:	Crossbar System

Product Description

CISCO Router types	CISCO SWITCH types	4500 6500 series types.	CISCO Module	CISCO Firewall
CISCO1841	WS-C2918-24TC-C	WS-C4510R-E	GLC-LH-SM	ASA5505-K8
CISCO1921/K9	WS-C2918-48TC-C	WS-C4506-E	GLC-SX-MM	ASA5512-SSD120-K8
CISCO1921-SEC/K9	WS-C2918-48TT-C	WS-C4507R+E	GLC-LH-SMD	ASA5515-SSD120-K8
CISCO1941/K9	WS-C2960-48TC-L	PWR-C45-2800AC	GLC-SX-MMD	ASA5515-K8
CISCO1941-SEC/K9	WS-C2960S-48TS-L	PWR-C45-1000AC	GLC-SX-MMD	ASA5512-K8
CISCO2901/K9	WS-C2960S-24TD-L	PWR-C45-1400AC	GLC-ZX-SM	ASA5512-K9
CISCO2901-SEC/K9	WS-C2960X-24TD-L	PWR-C45-1300ACV	GLC-T	ASA5520-BUN-K9*
CISCO2911/K9	WS-C2960-24PC-S	WS-X4748-RJ45-E	X2-10GB-LX4	ASA5520-K8
CISCO2911-SEC/K9	WS-C2960X-48TS-LL	WS-X4648-RJ45V+E	X2-10GB-LRM	ASA5550-K8
CISCO2921/K9	WS-C2960S-48FPS-L	WS-X4624-SFP-E	SFP-0C3-IR1	ASA5555-K9
CISCO2921-SEC/K9	WS-C2960S-48LPS-L	WS-X4232-GB-RJ	SFP-10G-LR	ASA5545-K8
CISCO2951/K9	WS-C2960-48PST-L	WS-X45-SUP7L-E=	SFP-GE-Z	ASA5545-K9
CISCO2951-SEC/K9	WS-C2960-48PST-S-RF	WS-X45-SUP6L-E=	SFP-GE-T	ASA5515-K8
CISCO3925/K9	WS-C2960+24TC-S	WS-X4418-GB		ASA5515-K9
CISCO3925-SEC/K9	WS-C2960+48TC-S	WS-C4948	HWIC-2FE	ASA5512-K8
	C2960X-STACK=	PWR-C49-300AC	VWIC2-1MFT-T1/E1	ASA5525-K8
		PWR-C49E-300AC	VWIC2-2MFT-T1/E1	ASA5505-K8
	3560 Series	6500 series	EHWIC-4ESG
	WS-C3560V2-24TS-S	WS-C6506-E	EHWIC-IGE-SFP-CU
	WS-C3560X-24T-L	WS-6506-E-FAN	SFP-10G-LR
	WS-C3560X-48T-S	WS-6509-E-FAN	C3KX-NM-10G
	WS-C3560X-48T-L	VS-S2T-10G	GLC-SX-MMD
	WS-C3560X-24T-S	WS-X6848-SFP-2T	GLC-LH-SMD*
	WS-C3560X-24T-S	WS-X6724-SFP	GLC-LH-SMD
	WS-C3560X-24T-S-RF	WS-X6748-SFP	SFP-10G-LRM
	WS-C3560X-48P-L	WS-X6716-10-3C	C3KX-NM-1G
		WS-X6748-GE-TX	C3KX-PWR-715WAC
	37 series	WS-X6824-SFP-2T	EHWIC-4ESG
	WS-C3750G-24T-S	WS-CAC-3000W	HWIC-1T
	WS-C3750V2-48TS-S-RF		HWIC-1T-C
	WS-C3750V2-48PS-S		HWIC-2T
	WS-C3750E-24TD-E		HWIC-2T-C
	WS-C3750E-48TD-E		HWIC-2FE
	WS-C3750E-48TD-S		C2960X-STACK
	WS-C3750E-24TD-S		VWIC3-2MFT-G703
	WS-C3750X-24S-S		VWIC3-2MFT-T1/E1
	WS-C3750X-48T-L		EHWIC-1GE-SFP-CU
	WS-C3750X-24P-L		WS-CAC-3000W
	WS-C3750X-48P-L		C3KX-PWR-1100WAC
	WS-C3750X-12S-S

The Cisco 2800 Series comprises four platforms (refer to Figure 1): The Cisco 2801, 2811, 2821, and2851. The Cisco 2800 Series provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.

The Cisco 2800 Series features the ability to deliver multiple high-quality simultaneous services

At wire speed up to multiple T1/E1/xDSL connections. The routers offer embedded encryption acceleration and on the motherboard voice digital-signal-processor (DSP) slots; Intrusion prevention system (IPS) and firewall functions; Optional integrated call processing and voice mail support; High-density interfaces for a wide range of wired and wireless connectivity requirements; And sufficient performance and slot density for future network expansion requirements and advanced applications.

Secure Network Connectivity for Data, Voice, and Video
Security has become a fundamental building block of any network. Routers play an important role in any network defense strategy because security needs to be embedded throughout the network. The Cisco 2800 Series features advanced, integrated, end-to-end security for the delivery of converged services and applications. With the Cisco IOS® Software Advanced Security feature set, the Cisco 2800 provides a robust array of common security features such as a Cisco IOS Software Firewall, intrusion prevention, IPSec VPN, Secure Socket Layer (SSL) VPN, advanced application inspection and control, Secure Shell (SSH) Protocol Version 2.0, and Simple Network Management Protocol (SNMPv3) in one secure solution set. Additionally, by integrating security functions directly into the router itself, Cisco can provide unique intelligent security solutions other security devices cannot, such as network admissions control (NAC) for antivirus defense; Voice and Video Enabled VPN (V3PN) for quality-of-service (QoS) enforcement when combining voice, video, and VPN; And Dynamic Multipoint VPN (DMVPN), Group Encrypted Transport (GET) VPN, and Easy VPN for enabling more scalable and manageable VPN networks. In addition, Cisco offers a range of security acceleration hardware such as the intrusion-prevention network modules and advanced integration modules (AIM) for encryption, making the Cisco 2800 Series the industry's most robust and adaptable security solution available for branch offices. As Figure 2 demonstrates, using a Cisco 2800 Series uniquely enables customers to deliver concurrent, mission-critical data, voice, and video applications with integrated, end-to-end security at wire-speed performance.

Converged IP Communications
As shown in Figure 2, the Cisco 2800 Series can meet the IP Communications needs of small-to-medium sized business and enterprise branch offices while concurrently delivering an industry-leading level of security within a single routing platform. Cisco CallManager Express (CME) is an optional solution embedded in Cisco IOS Software that provides call processing for Cisco IP phones, including wired and cordless WLAN phones. This solution is for customers with data-connectivity requirements interested in deploying a converged IP telephony solution for up to 96 IP phones. With the Cisco 2800 Series, customers can securely deploy data, voice, and IP telephony on a single platform for their small-to-medium sized branch offices, helping them to streamline their operations and lower theirnetwork costs. The Cisco 2800 Series with optional Cisco CMEsupport offers a core set of phone features that customers require for their everyday business needs and takes advantage of the wide array of voice.

Cisco 2800 Series	Cisco 2801	Cisco 2811	Cisco 2821	Cisco 2851
Product Architecture
DRAM	? Default: 384 MB ? Maximum: 384 MB	? Default: 512 MB ? Maximum: 768 MB	? Default: 512 MB ? Maximum: 1 GB
Compact Flash	? Default: 128 MB ? Maximum: 128MB	? Default: 128 MB ? Maximum: 256 MB
Fixed USB 1.1 Ports	1	2
Onboard LAN Ports	2-10/100		2-10/100/1000
Onboard AIM (Internal) Slot	2
Interface Card Slots	? 4 slots; 2 slots support HWIC, WIC, VIC, or VWIC type modules ? 1 slot supports WIC, VIC, or VWIC type modules ? 1 slot supports VIC or VWIC type modules	4 slots, each slot can support HWIC, WIC, VIC, or VWIC type modules
Network-Module Slot	No	1 slot, supports NM and NME type modules	1 slot, supports NM, NME and NME-X type modules	1 slot, supports NM, NME, NME-X, NMD and NME-XD type modules
Extension Voice Module Slot	0		1
PVDM (DSP) Slots on Motherboard	2		3
Integrated Hardware-Based Encryption	Yes
VPN Hardware Acceleration (on Motherboard)	DES, 3DES, AES 128, AES 192, and AES 256
Optional Integrated In-Line Power (PoE)	Yes, requires AC-IP power supply
Console Port (up to 115.2 kbps)	1
Auxiliary Port (up to 115.2 kbps)	1
Minimum Cisco IOS Software Release	12.3(8)T
Rack Mounting	Yes, 19-inch	Yes, 19- and 23-in. options
Wall Mounting	No	Yes	No	No
Power Requirements
AC Input Voltage	100 to 240 VAC, autoranging
AC Input Frequency	47-63 Hz
AC Input Current	2A (110V) 1A (230V)		3A (110V) 2A (230V)
AC Input Surge Current	50A maximum, one cycle (-48V power included)
AC-IP Maximum In-Line Power Distribution	120W	160W	240W	360W
AC-IP Input Current	4A (110V) 2A (230V)		8A (110V) 4A (230V)
AC-IP Input Surge Current	50A maximum, one cycle (-48V power included)
DC Input Voltage	No DC Power Option available	24 to 60 VDC, autoranging positive or negative
DC Input Current	? No DC Power Option available	? 8A (24V) ? 3A (60V) ? Startup current 50A<10 ms	? 12A (24V) ? 5A (60V) ? Startup current 50A<10 ms
Typical Power Dissipation (No Modules)	42W (143 BTU/hr)	32W (109 BTU/hr)	54W (184 BTU/hr)	58W (197 BTU/hr)
Power Dissipation-AC without IP Phone Support	150W (511 BTU/hr)	170W (580 BTU/hr)	280W (955 BTU/hr)	280W (955 BTU/hr)
Power Dissipation-AC without IP Phone Support	150W (511 BTU/hr)	170W (580 BTU/hr)	280W (955 BTU/hr)	280W (955 BTU/hr)
Power Dissipation-AC with IP Phone Support-System Only	150W (511 BTU/hr)	210W (717 BTU/hr)	310W (1058 BTU/hr)	370W (1262 BTU/hr)
Power Dissipation-AC with IP Phone Support-IP Phones	180W (612 BTU/hr)	160W (546 BTU/hr)	240W (819 BTU/hr)	360W (1128 BTU/hr)
Power Dissipation-DC	Not applicable	180W (614 BTU/hr)	300W (1024 BTU/hr)	300W (1024 BTU/hr)
RPS	No	External only, connector for RPS provided by default
Recommended RPS Unit	No RPS option	Cisco RPS-2300 Redundant Power System
Environmental Specifications
Operating Temperature	32° to 104°F (0° to 40°C)
Non-Operating Temperature	-4° to 149°F (-20° to 65°C)	-40° to 158°F (-40° to 70°C)
Maximum Operating Temperature at Altitude	? 40°C @ sea level ? 31°C @ 6,000 ft (1800 m) ? 25°C @ 10,000 ft (3000 m) Note: Derate 1.5°C per 1000 ft	? 40°C @ sea level ? 40°C @ 6,000 ft (1800 m) ? 30°C @ 13,000 ft (4000 m) ? 27.2°C @ 15,000 ft (4600 m) Note: Derate 1.4°C per 1,000 ft above 6,000 ft
Operating Humidity	10 to 85% non-condensing	5 to 95%, non-condensing
Dimensions (H x W x D)	? 1.72 x 17.5 x 16.5 in. ? (43.7 x 445 x 419 mm)	? 1.75 x 17.25 x 16.4 in. ? (44.5 x 438.2 x 416.6 mm)	? 3.5 x 17.25 x 16.4 in. ? (88.9 x 438.2 x 416.6 mm)
Rack Height	1 rack unit (1RU)		2RU
Weight (Fully Configured)	13.7 lb (6.2 kg)	14 lb (6.4 kg)	25 lb (11.4 kg)
Noise Level (Min/Max)	? 39 dBA for normal operating temperature (<90°F/32.2°C) ? 53.5 dBA (@ maximum fan speed)	? 47 dBA for normal operating temperature (<90°F/32.2°C) ? 57 dBA (@ maximum fan speed)	? 44 dBA for normal operating temperature (<90°F/32.2°C) ? 53 dBA (@ maximum fan speed)
Regulatory Compliance
NEBS	No	Yes	Yes
Safety	? UL 60950 ? CAN/CSA C22.2 No. 60950 ? IEC 60950 ? EN 60950-1 ? AS/NZS 60950
Immunity	? EN300386 ? EN55024/CISPR24 ? EN50082-1 ? EN61000-6-2
EMC	? FCC Part 15 ? ICES-003 Class A ? EN55022 Class A ? CISPR22 Class A ? AS/NZS 3548 Class A ? VCCI Class A ? EN 300386 ? EN61000-3-3 ? EN61000-3-2
FIPS-2	FIPS 140-2 Certification for 2801, 2811, 2821, 2851
TELCOM**	? For all four platforms, Telecom compliance standards depend upon country and interface type. Interfaces comply with FCC Part 68, CS-03, JATE Technical Conditions, European Directive 99/5/EC and relevant TBR's. For specific information see the datasheet for the specific interface card. ? Homologation requirements vary by country and interface type. For specific country information, see the on-line approvals data base
