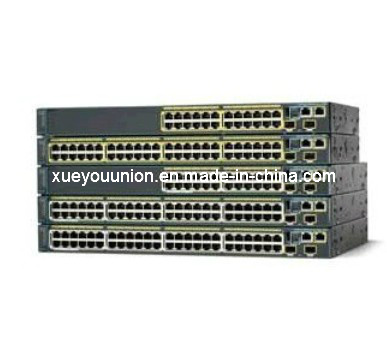

Cisco WS-C2960S-48TS-S Cisco Catalyst 2960S

Product Specifications

Prod Model:	WS-C2960S-48TS-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Products Status: StockPorts: ≥ 48Transmission Rate: 10/100/1000Mbps
Function:
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode: Full-DuplexCertification: ISO9001; CE
Brand Name: CiscoModel Number: WS-C2960S-48TS-SPlace of Origin: China (Mainland)
Packaging & Delivery
Packaging Detail: Original Cisco Box
Delivery Detail: Within 1-2 working days after payment confirmed.
Specifications
1)100%original new
2)Great quality and Price;
3)New sealed, 1 year warranty;
4)Fast delivery via UPS, FedEx etc;

General
Device TypeSwitch - 48 ports - Managed
Enclosure TypeRack-mountable - 1U
Ports48 x 10/100/1000 + 2 x SFP
PerformanceSwitching capacity: 50 Gbps ¦ Forwarding performance (64-byte packet size): 74.4 mpps
MAC Address Table Size8K entries
Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2
Encryption AlgorithmSSL
Authentication MethodRADIUS, TACACS+, Secure Shell v. 2 (SSH2)
FeaturesLayer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1W, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
RAM128 MB
Flash Memory64 MB Flash
Status IndicatorsPort status, link activity, port transmission speed, port duplex mode, power, system
Expansion / Connectivity
Interfaces48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 1 x console - mini-USB Type B - management ¦ 1 x console - RJ-45 - management ¦ 1 x 10Base-T/100Base-TX - RJ-45 - management ¦ USB: 1 x 4 PIN USB Type A
Power
Power DevicePower supply - internal
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Power Consumption Operational53 Watt
FeaturesRedundant Power System (RPS) connector
Miscellaneous
Width44.5 cm
Depth29.9 cm
Height4.5 cm
Weight4.77 kg
Rack Mounting KitOptional
MTBF357, 740 hour(s)
Compliant StandardsTUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
Software / System Requirements
Software IncludedCisco IOS LAN Lite
Manufacturer Warranty
Service & SupportLimited lifetime warranty
Service & Support DetailsLimited warranty - replacement - lifetime - response time: Next business day ¦ Limited warranty - power supply and fans - 5 years ¦ New releases update
Environmental Parameters
Min Operating Temperature-5 ° C
Max Operating Temperature40 ° C
Humidity Range Operating10 - 95% (non-condensing)
Min Storage Temperature-25 ° C
Max Storage Temperature70 ° C
Humidity Range Storage10 - 95% (non-condensing)
