Product Specifications
| Prod Model: |
MICROceL CF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

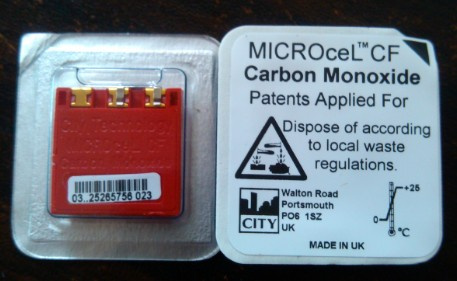

MICROceL CF - Carbon Monoxide
Performance Characteristics:
Nominal Range: 0-500ppm
Maximum Overload: 1500ppm
Expected Operating Life: Two years in Air
Output Signal: 0.045 ± 0.01 µA/ppm
Inboard Filter: To remove TLV levels of interfering gases
Resolution: 1ppm
Temperature Range: -40°C to +50°C
Pressure Range: Atmospheric ± 10%
T50 Response Time: <10 seconds
T90 Response Time: 15 to 20 seconds typically
Relative Humidity Range: 15 to 90% non-condensing
Typical Baseline Range (pure air): 4 to +2ppm equivalent
Maximum Zero Shift (+20°C to +40°C): 2ppm equivalent
Long Term Output Drift: <5% signal loss/year
Recommended Load Resistor: 10
Bias Voltage: Not required
Repeatability: <2% of signal
Output Linearity: Linear
N.B. All performance data is based on conditions at 20°C,50%RH, and 1013mBar unless otherwise noted.
Physical Characteristics:
Weight: 1.2g (approx.)
Position Sensitivity: None
Storage Life: Six months in CTL container
Recommended Storage Temperature: 0°C to 20°C
