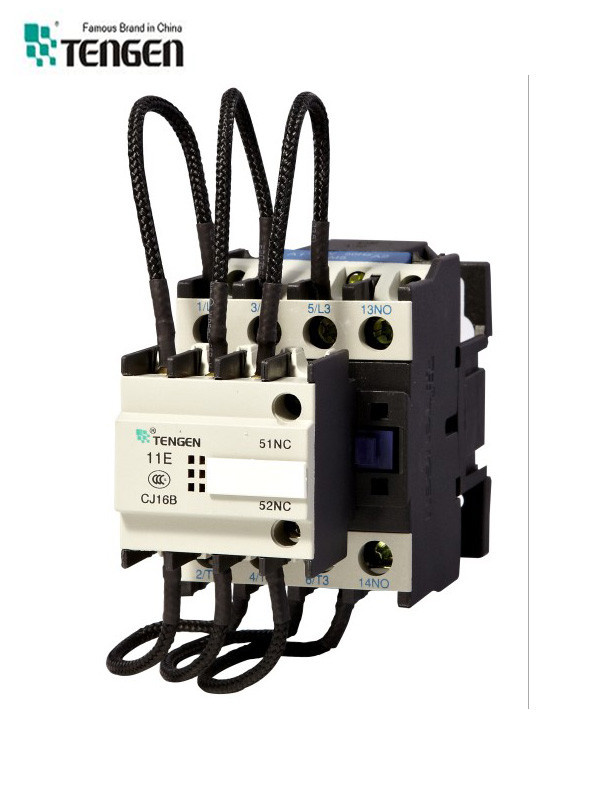

Cj19c Changeover Capacitor Cj19 Switch Over AC Contactor Magnetic AC Contactor Cj16
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
CJ16 |
| Ambient Air Temperature: |
-5~+40 |
| Rated Operation Voltage (V): |
380 |
| Frequence: |
50Hz or 60Hz |
| Altitude: |
2000m |
| Size: |
Miniature |
| Theory: |
Electromagnetic Relay |
| Usage: |
Household Appliances Relay, Communication Relay |
| Protective Characteristics: |
Enclosed Rlay |
| Load: |
Weak Power Relay |
| Action Principle: |
Electronic Type |
Product Description
CJ16 switch capacitor is applied to AC 50Hz, rated operating voltage up to 380V power line, and used for low-voltage reactive power compensation equipment or switch off low-voltage parallel capacitors.
They are provided with surge-restrained devices to reduce impulsion of capacitor when switching off surge.
1) CJ16 s developed by our company in the base of LC1-D capacitor
Contactor.
2) lt's structure is compact, mail circuit composed with resistance on-off switch
3) Joint the main circuit is convenrence
4) Widely used as a contactor in controlling small electric capacitor
CJ16-25 Cotrol power: 220/230V: 6.5KVA 400/415V: 12.5KVA
CJ16-32 Cotrol power: 220/230V: 8.5KVA 400/415V: 16.7KVA
CJ16-43 Cotrol power: 220/230V: 10KVA 400/415V: 20KVA
CJ16-50 Cotrol power: 220/230V: 16KVA 400/415V: 28KVA
CJ16-65 Cotrol power: 220/230V: 20KVA 400/415V: 32KVA
CJ16-80 Cotrol power: 220/230V: 25KVA 400/415V: 40KVA
CJ16-95 Cotrol power: 220/230V: 30KVA 400/415V: 48KVA
Type designation
Item | Type | CJ19C-25 | CJ19C-32 | CJ19C-43 | CJ19C-63 |
Controllable capacitor
capacity (kvar) | 230V | 6 | 9 | 10 | 15 |
| 400V | 12 | 18 | 20 | 30 |
| Rated insulation voltage (V) | 500 |
| Rated operation voltage (V) | 380 |
Conventional thermal
current (A) | 25 | 32 | 43 | 63 |
AC-6b rated working
current (A) | 17 | 23 | 29 | 43 |
Restrained surge capacity/
Capacitor rated current | 20Ie |
Controlled power
voltage (V) | 48, 110, 127, 220, 380 |
Conventional thermal current
of auxiliary contacts (A) | 6 | 10 |
Operating frequency
(cycles/h) | 120 |
Electrical life(×100000 time) | 1 |
| Mechanical life(×100000 time) | 10 |
