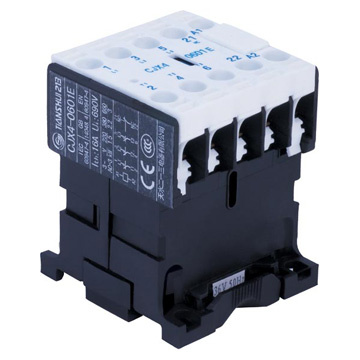

CJX4-E range AC contactor

Name: CJX4-E range AC contactor
Brand: China-Manufacturer-Directory.com
SKU: 672400895
Availability: InStock
Rating: 4.4 (21 reviews)

Supplier:	Tianshui 213 Electrical Apparatus Co., Ltd.
Price:	Negotiable
Min Order:	50/Piece
Quantity::
Trade Terms:	Shanghai Port

Product Specifications

Prod Model:	CJX4-E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Electromagnetic Relay
Size:	Miniature

Product Description

CJX4-E range AC contactor is used in AC 50Hz(or 60Hz), rated isolation voltage is up to 690V, and rated current is up to 9A under rated voltage 380V and AC-3, for long-distance frequent startermaking and breaking circuit and control AC motor. It can be added auxiliary contact arrangement and hot relay arrangement, protecting potential overload circuit.

parameters & type				CJX4-06E	CJX4-09E
standard				IEC60947-4 GB14048.4
rated working current under AC-3 le(A)			380 (V)	6	9
			660 (V)	5	7.5
conventional thermal current lth (A)				16	16
rated working voltage Ue (V)				380 660
rated insulation voltage Ui (V)				690
AC-3(6le,le)		electrical life span 10 4 times		0.5×10 6	0.5×10 6
		operation frequency Hz		1200	1200
AC-4(6le,6le)		electrical life span 10 4 times		10×10 4	10×10 4
		operation frequency Hz		300	300
machinery life span 10 4 times				3×10 6
auxiliary contact	conventional thermal current Ith			6 A
	electrical life span		AC-15 (360VA)	0.5×10 6
			DC-13 (33W)
	connectable minimum load			24V 10mA
coil parameters	rated control voltage Us(V)			AC:12,24,48,110,220,380
	pick-up time			0.85 Us~1.1 Us
	drop-out time			0.2 Us~0.75 Us
	coil power (VA)		pick-up	40
			contain	8
	power consumption			1.2W
	pick-up time			6~18ms
	drop-out time			5~23ms
	power factor			making 0.8, breaking

Tianshui 213 Electrical Apparatus Co., Ltd. is one of leading manufactures in Control Devices, Distributing Devices and Compelete Equipments in China. Main products cover AC contactor, DC contactor, thermal overload relay, electronic overload relay, contactor relay, pneumatic time-delay, MCB, MCCB, ACB.

We have 1300 employees, of whom 420 are technicains. We can supply 5 million pieces of high quality low-voltage apparatus devices and 20000 complete sets equipments per year. We are the supplier of Emerson and Tyco Electrionic. Our products export Europe, Russia, Vietnam, India. Our enterprice and products has been approved by ISO9001, ISO14001, OSHAS 18001; IEC, CCC, CE, UL, TUV and RoHS respectively. "Tianshui 213" awarded as China Well-know Trademark and also win a good reputaion from our customers around the world.
