CJX4-kd Range Contactor for Capacitor Switching

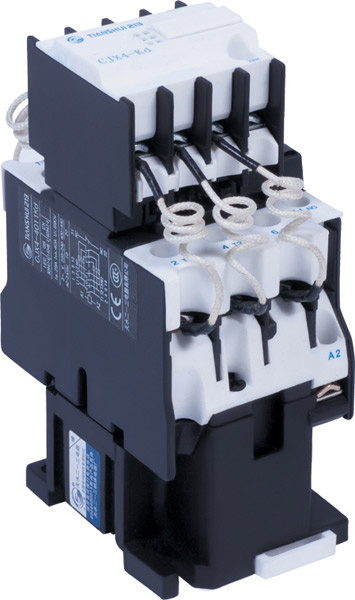

Name: CJX4-kd Range Contactor for Capacitor Switching
Brand: china-manufacturer-directory.com
SKU: 672402605
Availability: InStock
Rating: 5 (37 reviews)

Supplier:	Tianshui 213 Electrical Apparatus Co., Ltd.
Price:	Negotiable
Min Order:	50/Piece
Quantity::
Trade Terms:	Shanghai Port

Product Specifications

Prod Model:	CJX4-Kd
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Electromagnetic Relay
Size:	Miniature

Product Description

CJX4-kd range contactor for capacitor switching is used in AC 50Hz(or 60Hz), rated isolation voltage 690V, rated current is up to 87A under rated voltage 400V and category AC-6b of low-voltage no power compensation device, for adjust power factor COS Φ value of power systems. Contactor attached inhibit flow device that can effectively reduce impact from trip flow and reduce operation over-voltage.

type			CJX4~25kd	CJX4~32kd	CJX4~40kd		CJX4~50kd		CJX4~60kd	CJX4~80kd	CJX4~125kd
conventional thermal current Ith (A)			25	32	40		50		60	80	125
rated work current AC-6b Ie 400V(A)			18	24	29		36		48	58	87
control capacity AC-6b(Kvar)		200-240 V	6.7	8.5	10		15		20	25	40
		400-440 V	12.5	16.7	20		25		33.3	40	60
inhibit flow ability limited flow multiples			15
electrical life span 10 4 times			12			10
machinery life span 10 4			300
maximum operation frequency			300					120
standard			IEC60947-4-1GB14048.1GB14048.4GB14048.5
rated insulation voltage Ue(V)			690
contactor specification			CJX4- 2520kd 2511kd 2502kd	CJX4- 3220kd 3211kd 3202kd	CJX4- 4020kd 4011kd 4002kd		CJX4- 5021kd 5012kd		CJX4- 6021kd 6012kd	CJX4- 8021kd 8012kd	CJX4- 12521kd 12512kd
auxiliary contact	conventional thermal current Ith(A)		10
	electrical life span times	AC-15 360VA	12
		DC-13(33W)
	connectable min load		24V 10mA
limiting resistant operation time(ms)			79

Tianshui 213 Electrical Apparatus Co., Ltd. is one of leading manufactures in Control Devices, Distributing Devices and Compelete Equipments in China. Main products cover AC contactor, DC contactor, thermal overload relay, electronic overload relay, contactor relay, pneumatic time-delay, MCB, MCCB, ACB.

We have 1300 employees, of whom 420 are technicains. We can supply 5 million pieces of high quality low-voltage apparatus devices and 20000 complete sets equipments per year. We are the supplier of Emerson and Tyco Electrionic. Our products export Europe, Russia, Vietnam, India. Our enterprice and products has been approved by ISO9001, ISO14001, OSHAS 18001; IEC, CCC, CE, UL, TUV and RoHS respectively. "Tianshui 213" awarded as China Well-know Trademark and also win a good reputaion from our customers around the world.
