Product Specifications
| Prod Model: |
CK5123 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Turning Diameter: |
2300mm |
| Max Height Of Workpiece: |
1350mm |
| Max Weight Of Workpiece: |
8t |
| Workbench Diameter: |
2000mm |
| Workbench Speed Series: |
16 Step/Two Gears No Step |
| Workbench Speed Range: |
2.5-100r/Min |
| Main Motor Power: |
22 Kw |
| Max Cutting Force Of Knife Rest: |
12 Kn |
| Beam Travel: |
890mm |
| Beam Movement Speed: |
440mm/Min |
| Type: |
Vertical Lathe |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Power Source: |
Hydraulic Pressure |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
Product Description

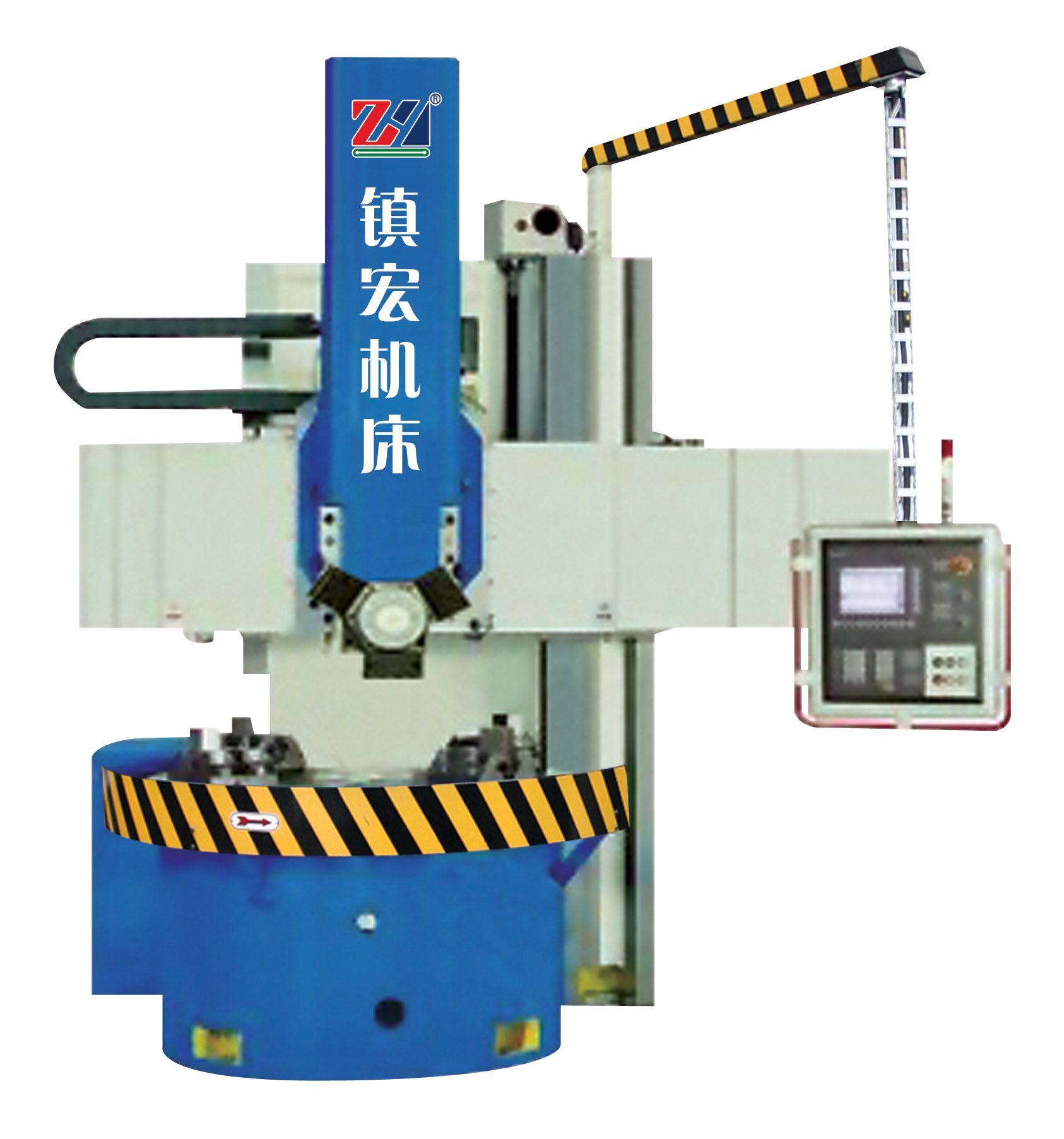

CNC Single-column Vertical Lathe
1. Description
1.1. This series lathe is CNC single-column vertical lathe aimed at processing inner round and outer round of large work piece and plane.
1.2. The lathe is suitable for high-speed steel and hard alloy steel cutter, processing black metal, non-ferrous metal and some non-metallic materials.
1.3. The following process can be finished with the lathe: Rough and fine turning of the inner and outer cylinder, plane and conical surface, grooving, severing and simple surface.
2. Main structure
2.1. Machine tool: The main parts of the machine tool ( lathe bed, base, workbench, beam, vertical slide rest, side tool box, feed box, main drive gear box) are made of high-strength cast iron, casted by resin sand technology.
2.2. Main drive: The rotation of workbench is drove by main electrical machine, gear slowing down and electromagnet speed changing system to implement speed regulation.
2.3. Vertical slide and feed mechanism of the vertical slide: The material quality of RAM is HT250. Its mechanical character is very good.
2.4. Workbench base structure: Workbench adopts long spindle structure. Radial direction adopts high-precision double row cylindrical roller bearings centering.
2.5. Beam: Beam clamps and loosens by a drift. The clamp is implemented by hydraulic pressure.
2.6. The hydraulic pressure system: The main control originals of the hydraulic pressure system come from the products of famous manufactures at home and abroad. The performance is reliable.
2.7. Lubrication of machine tool: The machine tool will offer oil automatically to lubricate the beam and the movement parts concentratedly at specified time.
2.8. Machine tool protection: The movement parts of the machine tool have a full range of security chain and interlock.
2.9. Electrical apparatus control system:
A) Power source: Three phase current 380V± 10%, 50Hz
B) The electrical design of the machine tool is in line with international general design standard.
3. Specification
4. Packing
Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
5. After-sale Service
1. The full machine warranty is 1 year
2. If there is something wrong with the CNC auto lathe, the after-sale service personnel will reach the buyer within the specified time to determine fault, and remove it.
6. Main export market
Asia, Africa, America, Turkey, Middle East, Eastern Europe and Southeast Asia, such as: Iran, India, Canada and some other countries.
7. Certificate
ISO9001&CE
8. Company Brief Introduction
We are a professional manufacturer which researches and produces CNC single and double column vertical lathe, turning & boring mill, common single and double column vertical lathes, heavy-duty horizontal lathes, deep hole machining lathes, bearing grinders and so on.
Our company specializes in the business of automobile making lathes, located in Dalian; We enjoy convenient access to major transportation networks. Our company covers an area of 30000sqm and has around 300 staff members. Furthermore, all of our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality.
Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
|
Name |
Unit |
CK5123 |
Name |
Unit |
CK5123 |
|
Max. turning diameter |
mm |
2300 |
Level travel of vertical slide |
mm |
-20~1150 |
|
Max. height of workpiece |
mm |
1350 |
Feeding series of knife rest(X axis Z axis) |
step |
no step |
|
Max. height of workpiece |
t |
8 |
Feeding range of knife rest(X axis Z axis) |
mm/min |
0.1~2000 |
|
Workbench diameter |
mm |
2000 |
Section height of knife carrier |
mm |
32x32 |
|
Workbench speed series |
step |
16 step/two gears no step |
Feeding alternating servomotor torque |
N@m |
22 |
|
Workbench speed range |
r/min |
2.5~100 |
Beam travel |
mm |
890 |
|
Max. workbench torque |
KN.m |
20 |
Beam movement speed |
mm/min |
440 |
|
Main motor power |
KW |
37 |
Beam lifting motor power |
KW |
2.2 |
|
Max. cutting force of knife rest |
KN |
20 |
Positional precision |
|
0.03/1000mm |
|
RAM travel of vertical slide |
mm |
800 |
Repeat location accuracy(X axis Z axis) |
|
0.015/1000mm |
