Product Specifications
| Prod Model: |
CKL-82UP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
19inches |
| Color: |
Black |
| Material: |
Metal |
| Package: |
Paper Bag |
| Usage: |
Video |
Product Description
1. Introduction

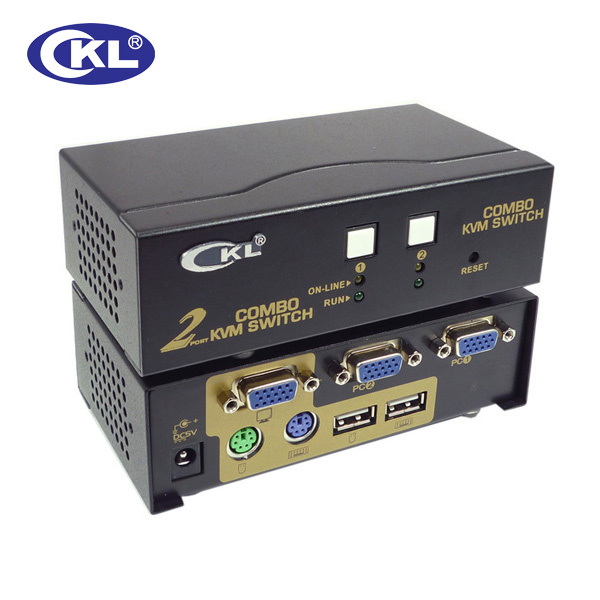

Thanks for your purchase of Combo KVM Switch! You now have a high quality, durable system that will enable you to control 2/4 Host computers and/or servers by using PS/2 and/or USB Connectors from one console (PS/2 & USB Mouse, PS/2 & USB Keyboard, and Monitor).
1. 1 Features
1. Console your Keyboard/Mouse via either way of PS/2 and/or USB arbitrarily.
2. Complex connections with PCS via either way of PS/2 and/or USB arbitrarily.
3. Controls 8/16 computers from a single console (Keyboard/Mouse) over PS/2 and/or USB connections.
4. Supports Windows, Linux, Mac OS9/OSX, Sun Micro systems.
5. On-Screen-Display (OSD) & Cascade Chain functions.
-OSD is intuitive menus driven for quick and efficient navigation.
-3 level cascades: Up to 3 levels; Control up to 64/256/4096PCS, from a single console; Cascaded units don't need special configuration.
6. Emulates a PS/2 or USB keyboard on each PC to allow your computers to boot normally without a keyboard error.
7. Supports hot pluggable. All devices connected to the KVM can be added or removed any time, no need turn off the PC.
8. Supports 3 switch modes:
(1) Push Button, (2) Hot-Keys on the keyboard.
(3) Menu driven OSD (On Screen Display).
9. Supports Auto-Scan function to switch video automatically among computers in preset intervals sequentially by OSD menu driven.
10. Supports LED display for PC and/or server status monitoring.
11. Supports VGA resolutions up to 2048× 1536 @ 60Hz.
12. Supports Beeper during switching enabled.
13. Powered with external power adaptor connection.
14. Fully compliant with the USB 1.1/2.0 specification.
15. Rack Mountable in 19- (1U).
