Product Specifications
| Prod Model: |
CL014SF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Application:

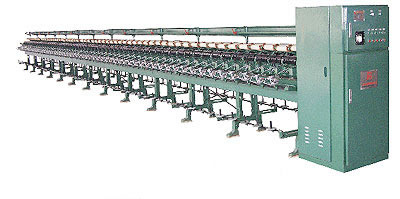

CL014SF Soft winding can winding pure cotton yarn, chemical-fiber and blended yarns with soft package on cones, it's for preparing winding before dyeing.
Main technical data:
*Type: Double sides(Groove Drum)
*Number of spindles: 40, 60, 80, 100 ,120 (100 as the standard spindle number)
*Spindle Gauge: 254mm
*Guide Traverse: 152mm
*Winding speed: 350-400 meters/minute
*Grooved drum: Bakelite grooved drum of φ80mm with 2 circles of the same distance.
*Drum guide travel: 147mm
*Grooved Drum transverse: 2.2mm , 3.2mm, two types.
*Traversing times of grooved drum: 14.2 times/minute.
*Bobbin: 0°, 3° 30′ , 4° 20′or can be make-to-order against offered sample bobbin.
*Take up size: Φ180 (big Dia) ×149mm (length)
*Density of cheese yarn on cones: 0.30-0.40g/cm3
*Yarn-break auto-stop device: Each spindle has an independent set of auto-stop device.
*Tension device: Tension balancing device is set with total 10 kinds of tension spacers (weight balancing can be carried out according to technical requirements).
*Yarn cleaning device: installed Blade for Yarn cleaning.
*Diameter of Drum's belt pulley: Φ110mm
*Blank-bobbin conveyer device: It is equipped at the left and right side of the machine, and it's used to convey blank bobbins from the head to the rear.
*Hold yarn shelf: can use Cylinder bobbin, Conical Cone and etc.
*Anti-ribboning device: it has a intermittent switch in the Electronic box to make the motor rotating turning on and off circularly.
*Traversing gear: it installed grooved-drum traversing gear to remove the hard edges of the cone.
*Waste yarn Cleaning device: it can optional to install GUO13A type to-and-fro blowing cleanser on the machine.
*Machine size: L13795 x W1122 x H1615mm (it's 100 spindles size ).
*Motor Specification: Main Motor, JF0-32A-4, 1.8Kw, 380V, and 1440 RPM, 2 sets.
Auxiliary Motor, FW11A-6, 0.37Kw, 380V, and 960 RPM, 1 set.
*Triangle belt: A1800, 6 pieces
The machine can optional install Electric Cleaner, Length counting device per spindle, time counting device, Frequency Inverter Controller, Air Splicer and etc.
Shanghai Clover CNC Machinery Co., Ltd. founded in Oct, 1990 is the biggest bases of manufacturing metal plate processing facility comprehensive enerprise integrated with research, development, manufacturing, export trading.
So for we have five kinds of production field which are consists of CNC machine, hydraulic facility, mould, heavy machine, all kinds of steel material and so on.
We have been exported to dozens of countries and regions in Europe, America and Southeast Asia.
Our company product passed ISO 9001: 2000 quality system certification and CE certification.
We has been taking the lead for its aggregate annual sales revenues, and has been listed among"the national key new &hi-tech enterprice", "the backbone enterprises in the national-grade CNC metal plate processing machinery manufacturing base" and "the top 500 in China's machinery sector" for many consecutive years.
Today, Clover employee are reseaching and developing highly sophisticated products based on real potential, new vision, bold risk taking, fusion international advanceed technology. Meanwhile we are trying to expand domestic and foreign markets in order to lay a solid foundation for "CLOVER" world famous brand.
