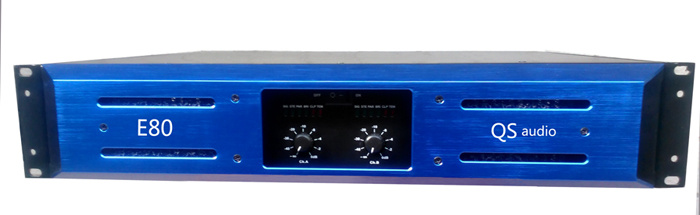

Class Ab + Td Power Amplifier

Name: Class Ab + Td Power Amplifier
Brand: china-manufacturer-directory.com
SKU: 759996515
Availability: InStock
Rating: 5 (105 reviews)

Supplier:	Quansheng Audio Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	E40/E60/E80/E100/E120/E140
Markets:	Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Type:	Professional Amplifier
Function:	Post Amplifier
Usage:	Stage System
Element Number:	Push-Pull Amplifier
Used For:	Professional
Tube Type:	Transistor Amplifier
Voltage:	110V, 220V, 230V
Output Number:	2
Conductive Mode:	H
Sound Channel:	2

Product Description

Specification:

THD+N: 1KHz <0.025%
IMD:60Hz/7kHz-4/1 <0.075%
Frequency response:20Hz-20kHz,<+/-0.25dB
Power frequency response: -3dB,10HZ-50KHZ
Phase response:20Hz-20kHz, <+/- 8 Degree
Signal to noise ratio: 1KHz,0.775V input, A weight,>110dB
Damping factor: 63Hz, >1500
Slew rate: 1KHz Tone burst,40dB Gain >100V/us
Input impedance:1KHz, Balanced input 20kohm
Lowest loaded impedance:
Stereo:>1.6 ohm
Bridge:>3.2 ohm
Parallel: >0.8ohm
Dimensions: H×W×L 88mm × 482mm × 400mm

/MODEL	E40	E60	E80	E100	E120	E140
Stereo 8ohm(RMS)	2X400W	2X600W	2X800W	2X1000W	2X1200W	2X1400W
stereo 4ohm(RMS)	2X600W	2X900W	2X1200W	2X1500W	2X1800W	2X2100W
stereo 2ohm(RMS)	2X800W	2X1200W	2X1600W	2X2000W	2X2400W	2X2800W
Bridge 8ohm	1200W	1800W	2400W	3000W	3600W	4200W
Bridge 4ohm	1600W	2400W	3200W	4000W	4800W	5600W
Parallel 2ohm	1200W	1800W	2400W	3000W	3600W	4200W
Parallel 1ohm	1600W	2400W	3200W	4000W	4800W	5600W
Net weight	13.5Kg	15.0Kg	16.0Kg	17.0Kg	18.0Kg	24.0Kg

Quansheng Audio Co., Ltd. was founded in 2006! We have been involved in every significant area of the PRO business. Our main products include: Digital controller, professional power amplifiers, plastic speaker systems, loudspeaker systems, line array and so on. All the products are exported to Europe, America, south-east Asia and Middle East areas and got a good reputation from all of our customers. We provide both ODM and OEM service.

Quansheng audio was made up by an experienced R&D team, sales team and production team. Our company's motto is "best service, top quality, keeping development". We always focus on developing more perfect products to make your life more colorful.
