Product Specifications
| Prod Model: |
PD97 TRP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Pd97 Trp |
| Install: |
Vertical |
| Nominal Diameter: |
15-50mm |
| Principle: |
Volumetric Meter |
| Level Measurement: |
C |
| Work Environment: |
Dry Water Meter |
| Medium Pressure: |
General Water Meter |
| Application: |
Industrial |
| Counter Instructions: |
Digital and Analogue |
| Medium Temperature: |
Cold Water |
Product Description

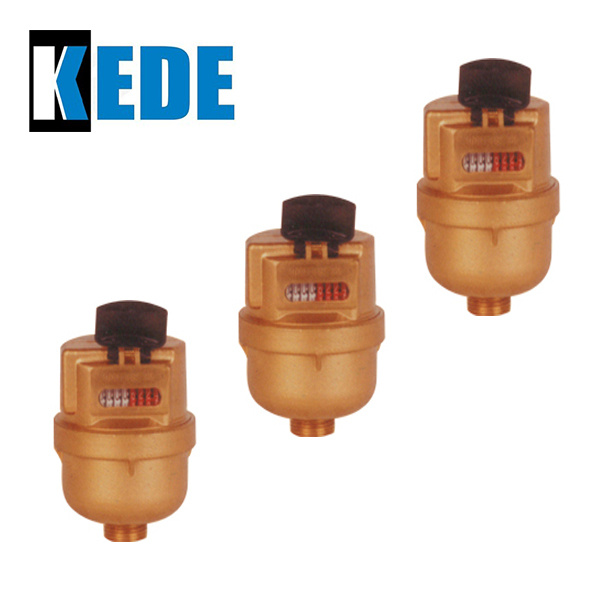

VOLUMETRIC WATER METER ,CLASS C
MODEL: PD97 TRP
·Application:
measuring the total volume of cold potable water passing through the meter.
It's suitable for domestic use.
·Operating condition:
water temperature up to 50C,the max admissible water pressure 1.6Mpa
·Special feature:
semi-positive oscilating piston type straight reading.
Liquid capsulized register high accuracy negligible head loss at working
flow-rate instacllation in any position diect transmisson, with reliable
performance
·Robust construction
·the technical datas conform to ISO 4064 standard class C and uality accreditation
standard of ISO 9002
Packaging & Shipping
1. Price terms: EXW/FOB/CNF/CIF.
2. Payment: 30% by T/T, balance by T/T before shipment. Other payment way can be negotiated for big order.
3. Package: one pc in a bos,,then in export carton,then in pallet All packings are export standard package suitable for tough handling and sea transport.
4. Delivery: Goods to be ready within 10~30 days depending on order quantity.
Company Information
Established in 2004, our company is a manufacturer and trader specialized in the research, development and production of manometers, thermometers, flowmeters, water meters, controls, switches and valves. We are located in a seaside city - Lianyungang, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Establish friendly relationship with Customers
Over the years, Kede keep efforts to research ,develop ,produce and send manometers, thermometers, flowmeters, water meters, controls, switches and valves, we have established more and more good relatioship with our customers and have friendly communications with each other....
|
DESCRIPTION |
UNIT |
TECHNICAL DATA |
|
Nominal Size |
|
DN15(1/2") |
DN20(3/4") |
|
Qs |
m3/h |
3 |
5 |
|
qp(Error Limit ±2% ) |
m3/h |
1.5 |
2.5 |
|
qt(Error Limit ±2% ) |
l/h |
22.5 |
37.5 |
|
qmin(Error Limit ±2% ) |
l/h |
15 |
25 |
|
Min. Reading |
1 |
0.05 |
0.05 |
|
Max. Reading |
m3 |
99999,9999 |
99999,9999 |
|
Max. Reading Pressure |
Mpa |
1.6 |
1.6 |
|
P at qs |
Mpa |
0.1 |
0.1 |
|
L |
mm |
195 |
254 |
290 |
|
I |
mm |
115 |
154 |
190 |
|
B |
mm |
43 |
43 |
|
B |
mm |
43 |
43 |
|
Weight (without connections) |
kg |
0.97 |
1.18 |
1.30 |
|
Weight(with connections) |
kg |
1.14 |
1.44 |
1.56 |
