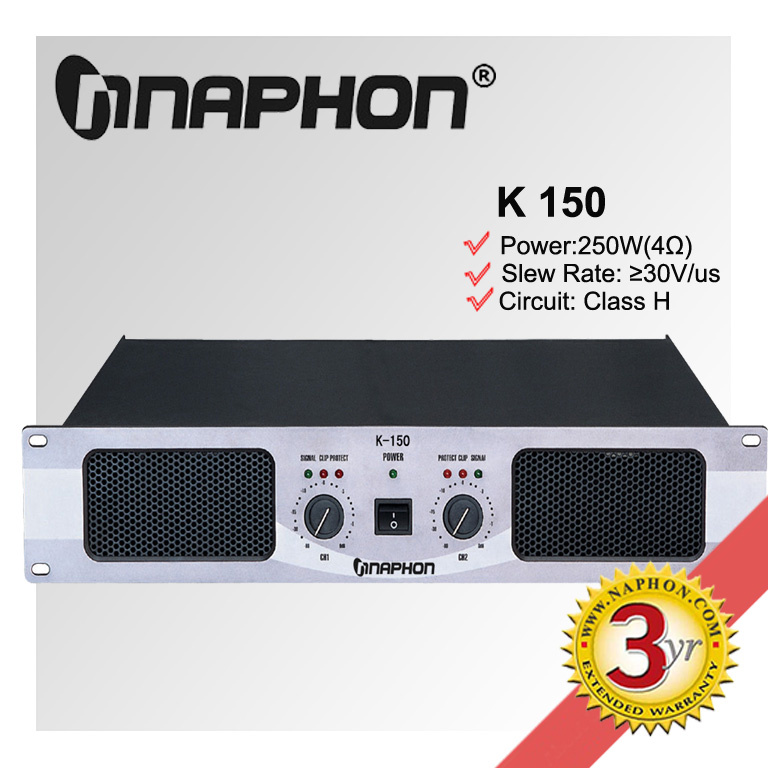

Class H Power Amplifier (K 150)

Name: Class H Power Amplifier (K 150)
Brand: China-Manufacturer-Directory.com
SKU: 678603265
Availability: InStock
Rating: 4.9 (110 reviews)

Supplier:	Shenzhen Naphon Music Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::
Trade Terms:	CFR

Product Specifications

Prod Model:	K 150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Number:	4
Function:	Post Amplifier
Tube Type:	Tube Amplifier
Element Number:	Push-Pull Amplifier
Conductive Mode:	AB
Sound Channel:	2.0
Voltage:	110v-220v

Product Description

Power amplifier
1. Working modes: Stereo/bridge/mono
2. Cooling Mode: 2-Speed Fan
3. Indicators: Power/Signal/Clip
4. Standard XLR and 1/4" TRS sockets
5. Load Protection: DC Safeguard/Output Overloading/Startup/Boot-strap Short Test
6. Adopt bulky power supply, effectively reduce the intermodulation distortion and noise

Model	K-150	K-300			K-500	K-750
(8Ω)/Rated Power Output	2x150W	2x300W			2x500W	2x750W
(4Ω)/Rated Power Output	2x250W	2x450W			2x750W	2x1200W
(8Ω)/Bridged Output	300W	600W			1000W	1500W
Output Circuit Type	Class H
Separation	>70dB
Frequency Response	20Hz ~ 20KHz: +0.5dB at Rated Output
Damping Factor	300:1(@1KHz/8Ω)
Slew Rate	≥30V/us
Input Sensitivity	-4dB,0dB,+4dB
Signal Noise Ratio	>100dB
Power Supply	AC110V-240V 50~60Hz
Net Weight(KGS)	13.50		14.50	22.00			24.20
Dimension(MM)	480x450x90

NAPHON MUSIC, based in Shenzhen, is a company specialized in the design and production of quality professional audio equipments. Its package of products are widely used in music venues, theatres, houses of worship, sporting events and much more.

NAPHON MUSIC has a major commitment to produce the most accurate & reliable product available. It maintains an extensive research and development division which is constantly looking for ways to improve the performance, value and reliability of products, introduced the Surface Mounting Technology, proudly launched its new MC series of DSP Mixers and SA series of Amplifiers. With a stringent quality control in production, it can arrive at an ever higher standard of quality for full range of products. NAPHON MUSIC had got ISO9001: 2000 International Standard Approval and CE approval.

NAPHON MUSIC always focus on tomorrow, embracing severe construction standards and the on-going aim to provide the best sound and most outstanding customer service you've ever experienced.
