Clay Brick Mixing Equipment for Brick Making

clay brick mixing equipment for brick making

Ibrick China double shaft mixer for clay brick making factory machinery

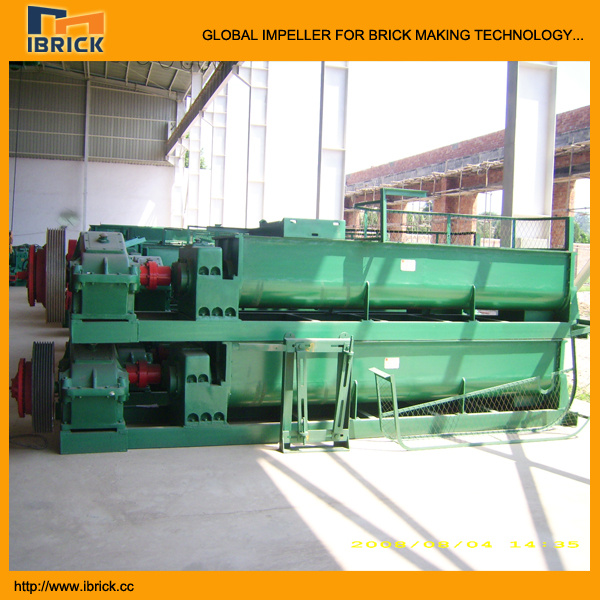

Double shaft mixer
Application and Features
1. This machine is the raw materials homogenizing equipment in the brick making production line
2. This machine uses two symmetrical spirals that rotate synchronously, it adds water and mixes the raw materials during the transportation in order to evenly mix the raw materials, so that the mixed raw materials are neither too dry (with the ash existing) nor too moist (with water drop infiltration). It is easy to use and maintain this machine, and it have features such as: high using safety, steady operation and wide application field and so on.
3. This machine is suitable for mixing clay, shale and other raw materials.
4. This machine adopts complicated sealing for gears and bearings, and the mixing blades are cast made from wear resisting materials with its using life 4 times and above of the ordinary mixing blades.


Key Parts Description
The mixing blades are cast made from wear resisting materials with its using life 4 times and above of the ordinary mixing blades, avoiding productivity reducing and uneven mix caused by mixing blades wearing, also avoiding some common problems caused by mixing blades changing, so that the using costs can be reduced and working efficiency can be improved.
Shafts materials: standard #45 carbon steel material, with its hardness of HB220-240 after thermal engineering treatment.

This machine adopts air clutch, starting with big capacity of load to minimize the main motor capacity and motor instant start current to reduce the affection on the grid, and has a protection effect for the machine elements. Its structure is compact with less weight, and can adjust the wearing clearance automatically, saving manpower and costs.

Bearing adopts domestic well-known brands: HRB, ZWZ, LYC.

Notes: The machine usage life is not less than 20 years under normal operation, and maintenance. The overhaul period is more than cumulative production 11000 hours.

Warm Tip: Keep daily maintenance can extend the usage life of the machine by more than 20%.

Brick making equipment clay brick raw material double shaft mixer machine

MD double shaft mixer as necessary raw material treatment equipment in brick and tile production process, this equipments has the function like mixing , agitating homogenizing, etc. the main function is mixing material with water.

MDE double shaft extruding mixer has dual function of homogeneous mixing and extruding mud ,the extruding front end equipped with sheet cutting device to mix and homogenize any kinds of water material ,they can make the materials mix well distributed and remove the impurity in the materials. main wearing part is alloy anti-friction material. the mixing shaft is heat engineering treated. low price but long serving life.

Usage and characteristics
The twin-shaft stirring machine is the stirring equipment of materials and water during raw materials handling. The electric motor of the equipment via reducer can drive stirring long axis and counter gear to let stirring long & short shafts operate relatively. We install stirring vane on the shafts. The long and short shafts rotate relatively. The stirring teeth mix the materials and water in the stirring box.
Adding water into stirring machine, needs add 90% of water. The water needed can decide by materials' water content and characteristics.

This machine has several features as follows:
1. The stirring teeth are designed as an array configuration of teeth bar and teeth plate. When needing to replace the worn teeth plate, only replaces the teeth plate is all right. Via quenching treatment, the teeth plate is duration practicality.
2. All the machinery application shafts (including stirring shaft) are via hardening, tempering and determining nature treatment. In usage process, it is difficult to generate shortage & bending phenomena.
he required reducer gears and stirring counter gear adopt quenching hardening tooth surface handling. For the clutch position, utilize our company's patented product of "Spiral Dental Formula Clutch" with the characters of automatic locking, safety incorporation and thorough separation.
3. The slippage position of clutch shaft is designed as spline device of agile operation and uniformity operation. (Also you can adopt pneumatic clutch) Owing to reasonable design structure and reliable performance of complete machine, the machine is the desirable support equipment of extrusion brick-making machinery.

We supply following brick making machine and brick making equipment
1. Belt type box feeder, plate type box feeder
2.  Primary roller crusher, fine high speed rolling crusher, jaw crusher , hammer crusher
3. Double shaft mixer , double shaft mixer and extruder
4. Energy saving vacuum extruder, double shaft vacuum extruder
5. Automatic brick cutter system
6. Green bricks separation machine
7. belt conveyor
8. Brick dryer
9. Brick tunnel kiln
10. kiln automatic control and monitoring system
11. Brick kiln equipment
12. Automatic brick loading and unloading machine
13. Automatic brick packaging machine
14. Automatic robot brick setting machine
15. Automatic brick stacking machine
16. Brick dryer and tunnel kiln design and construction
17. Technical provide and technical supervision
18. Undertake turn-key project

If you want to set up a new brick plant or plan to purchase automatic brick making machinery and brick equipment, please contact with us at any time .
Welcome to contact with us online :
3. Phone Number: 0086-15991710216

Specification Model	Capacity (m³/hr)	Power Requirement (kw)	Rotate Speed(t/m)	Exterior Dimension (mm)
MD4000M	30-40	Y4-55	40	5800*1100*900
MD3600M	25-35	Y4-55	40	5400*1100*900
MD320M	20-33	Y4-45	40	5500*900*900
MD3000M	15-30	Y4-37	40	4900*900*900
MD2800M	15-28	Y4-30	40	4700*900*900
MD2600M	15-25	Y4-30	40	4500*900*900
MD2400M	15-20	Y4-30	39	3900*900*900
