IBRICK High technical designTunnel kiln for clay bricks fired
China tunnel kiln plant for Clay Red Bricks Fired Kiln
Clay Brick Tunnel Kiln for Full Automatic gas fired brick kiln system
For this production line, raw material is clay with better material performance. So, the raw material be treated carefully by roll type crusher, fine pulverizing grinder, mix and extruder for guarantee the grain size distribution of the material and uniformity can meet the design requirement; This producing line adopts the semi-hard plasticity extruder to forming; double tunnel drying chamber to drying, hoffman kiln , tunnel kiln for firing. This technology is more concise, all adopt the mature technology, which also can meet the design requirement. The equipment selection of this producing line is reasonable, not only can guarantee the producing capacity, but also and guarantee the product's quality.
Clay and Coal Material Prepare and Treatment
By the Bulldozer or Loader to send the raw clay to the box feeder, the box feeder adopted the valve controller, it can control the feeding quantity according to the requirements. Then, the raw clay through the belt conveyor go to double-roll crusher for crushing.
Coal will be crushed by the coal crusher and being piled up. Then by labor vehicle or loading machine send the coal to coal feeder, which adopt valve controller, can control the coal feeding quantity according to requirement. Through the belt conveyor, coal powder will go to normal rolling crusher, together with the clay crushing, coal powder and clay will be mixing completely.
The clay will receive second time mixing by fine pulverizing double roll grinder, in order to get the proper grain size. By water adding again and mix, extrude, cut up, so that to get a better molding quality.
Molding
The vacuum extruder will squeeze material to clean-surface and solid-inside columns, which will be cut into the required adobes by cutter.
Extruding machine is the key equipment among the whole production line, its performance are required as follows:
1) They can meet the need of different specification and hole shapes of the brick;
2) The vacuum degree is -0.092Mpa, the extruding pressure is 2.5-3.0Mpa;
3) The hourly output per set is more than 7000pcs bricks.
Moisture content when molding is controlled to 15%-18%.
Clay Brick Tunnel Kiln for Full Automatic gas fired brick kiln system
Brick Cutting and Stacking

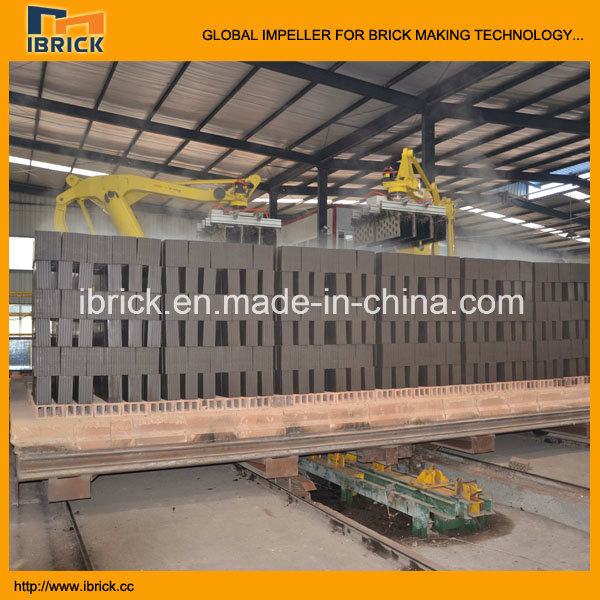

The columns will be cut into the required adobes by cutter, then the green brick be pulled distance by the distributing machine and stacked onto the drying car by labor. The drying cars are transported by labor to hydraulic ferry pusher at the inter end of drying chamber and be sent into the drying chamber.
The green wet brick will become to the requested semi-finished products after adding heat.
The dried car be sent into the hoffman kiln by the trailer what be pulled by the small tractor, stacking the brick into the hoffman kiln by labor.
The brick bodies go through the pre-heat, firing and cooling, then be sent to the storage yard by labor.
Brick Drying
In order to save energy, reduce the CO2 and SO2 emission and take full use of the heat, green bricks are dried by the tunnel drying chamber with small size cross section. Heat resource comes from the remaining heat of the hoffman kiln.
Green bricks come from the cutter then being put on the drying cart by man after bricks distributing and transferring machine, and then it will be sent to the drying chamber by the ferry pusher.
Brick Firing
Dried bricks via the hydraulic ferry pusher are sent to the trail car. Then, the workers push the drying car onto the trail car, then send to the Hoffman kiln / tunnel kiln for unloading, stacking and firing.
| Specification Model | Numbers | Output Capacity (Pcs/day) | Land Covering Required | Outer Size (m) |
| Tunnel Kiln + Dryer | 2.5m Section | 50000 | 140×50m | 110.8×4.3×2.34 |
| 8 Channels | 61×9.6×1.5 |
| 3.6m Section | 80000~100000 | 170×65m | 134.2×5.4×3.6 |
| 12 Channels | 67.6×19.22×1.5 |
| 4.6m Section | 100000~120000 | 180×70m | 143.5×6.4×3.33 |
| 14Channels | 65.5×25.24×3.285 |
| 6.9m Section | 150000~180000 | 200×120m | 153.5×8.7×3.33 |
| 20 Channels | 65.5×25.24×3.285 |
IBRICK is the technology initiator whom firstly professional supply clay brick sintering two-step stacking-firing process in the world. We always implement rigorous, secure, and integrated industrial chain management and provide professional engineering management, technology solutions, equipment purchasing and etc. For the clay sintering hollow bricks, decorative brick, insulating block, paving bricks, western-style tiles; Split brick projects all around the world. Our service include below items.
The inspection of raw materials---raw material industrial test, providing specific and targeted technology solutions according to scientific data tested;
The complete technology design--- material processing, molding, drying, firing, packaging, unloading and etc.
The complete production line equipments------- supply and installation the most economical and high-quality equipments.
The construction of complete set production line-----contracting to build the EPC projects for building materials.
The accurate and timely local services-------- providing the production management service, the lifelong technology service support, make every projects to create more value for each users.
We are willing to make our progress with you hand in hand and become impeller for world-wide brick-making cultural by our constant innovation and non-stop efforts.
