Clear Laminated Tempered Window Glass
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Electromagnetic Shielding |
| Appearance: |
Flat |
| Production: |
Dry Laminated Glass |
| Layer Type: |
Common Laminated Glass |
| Melting Point: |
High Temperature |
| Color: |
Clear |
| Usage: |
Window |
| Shape: |
Flat |
| Structure: |
Solid |
| Type: |
Float Glass |
| Intermediate Film: |
PVB |
Product Description

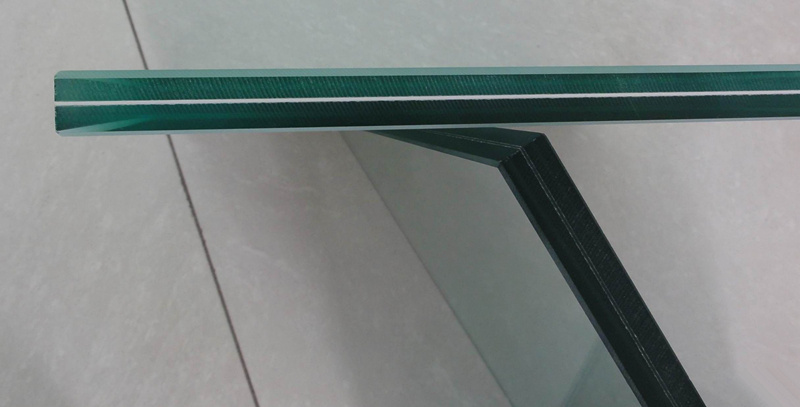

Laminated Glass, Interlayer Glass, Sandwich Glass
Laminated glass is also called Sandwich glass, or Interlayer glass. It is processed with special technology under high temperature and high pressure by adding one or more layers of Polyvinyl Butyral (PVB) with tough and strong binding between or among two or more glass layers. For the great binding performance, laminated glass/sandwich glass/interlayer glass could stop external force attack and the chips will bind with PVB after breakage to avoid making harm to person. And laminated glass/sandwich glass/interlayer glass could still resist attack from wind and rain in breakage status.
In order to guarantee the quality of laminated glass/sandwich glass/interlayer glass, PVB film could be imported from Du Pont of USA or Sekisui of Japan to make laminated glass/sandwich glass/interlayer glass. We also have Chinese famous brand PVB for laminated glass with high quality and transparency. Laminated glass/sandwich glass/interlayer glass can be further processed into tempered laminated glass, glass with holes, into insulating glass etc.
Applications:
Laminated glass is widely used for curtain wall, window, slid door, railing, bullet proof, burglar-proof, showcase, counter, skylight
Specifications:
Laminated glass/Sandwich glass/Interlayer glass size:
Max. Size: 3000mm*6000mm
Thickness of PVB film: 0.38mm-3.8mm
PVB Color:clear,milk,grey,yellow,orange,green,bronze...
Laminated glass/Sandwich glass/Interlayer glass thickness(mm): 3+0.38+3, 4+0.38+4, 5+0.38+5, 3+0.76+3, 4+0.76+4, 5+0.76+5, 8+1.14+8,8+1.52+8,10+1.52+10,12+1.9+12 etc
The colors of the film include transparent, milk, blue, dark grey, light green, bronze, etc.
Standard:AS/NZS2208,Singapore PSB, EN 12543; ANSI Z 97.1; BS 6206
Competitive Advantage:
Laminated glass/sandwich glass/interlayer glass advantages:
Sound reduction, the special laminated construction could reduce sound spread effectively, then that function make laminated glass has great performance in sound control, PVB also could filter and absorb ultraviolet (UV) rays 99.5% at least, so laminated glass could reduce the cost of electronic power and save energy, the effects will be better if you adopt special PVB interlayer.
Features of laminated glass/sandwich glass/interlayer glass as following:
1) Extremely high safety: The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary, burst and bullets.
2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.
3) Create aesthetic sense to buildings: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.
4) Sound control: PVB interlayer is an effective absorber of sound.
5) Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains from fading effectProject:
Machine:
|
Glass |
Color |
Visible Light(%) |
U-Value |
SC |
|
Trans |
Rreflect |
Summer |
|
Out |
In |
|
|
5C+0.76+6C |
Clear |
87 |
8 |
8 |
4.93 |
0.89 |
|
6C+0.76+6C |
Clear |
86 |
8 |
8 |
4.91 |
0.87 |
|
6C+0.76+6F Green |
Green |
72 |
6 |
6 |
4.98 |
0.65 |
|
6C+0.76+6Grey |
Grey |
43 |
5 |
5 |
5.12 |
0.63 |
|
6C+0.76+6C Low E#4 |
Clear |
79 |
10 |
11 |
3.5 |
0.74 |
|
6C+0.76+6C Sun E#4 |
Light grey |
65 |
8 |
9 |
3.9 |
0.62 |

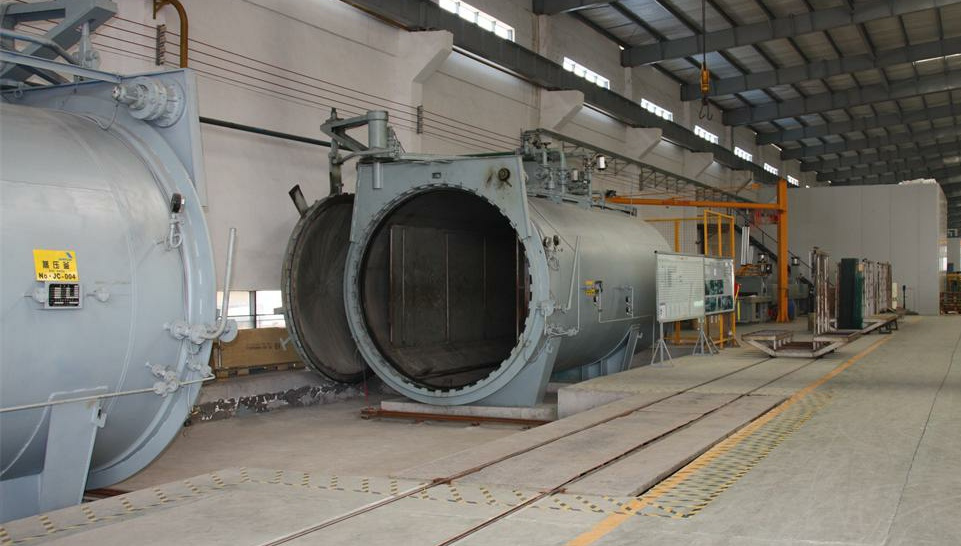

Rizhao Jinbo Industry Co., Ltd is established in 2006. We own the advanced flow-line equipment, professional engineer, earnest attitude, best service for the clients, so eight years passed, we grow up to become the leader of glass manufacturing industry in China. Our factory covers an area of over 40, 000 square meters, and we own more than 54 sets equipment, including in 4 processing lines for glass cut, 2 processing lines for tempered glass, 5 processing lines for insulated glass, 3 processing lines for laminated glass; And high-pressure autoclave, thermal, drilling machine, something extra.
We believe that the sole competitiveness comes from the high quality. We have been dedicated in the research and development of advanced manufacture techniques and therefore our quality could been improved to a higher level.
Our experienced and professional sales team will surely offer the essential support and pre- and after- sales service necessary to ensure that all customer requirements are met promptly and efficiently.
Our Leading products are including in Low-E glass, coated glass, tempered glass, insulating glass, laminated glass, curved steel glass, fire glass over various combinations of glass and composite products.
Over the past year, our total capacity breakthrough 4 million square meters. All of our customers are located all over the world and are very satisfied due to our excellent price-quality ratio.
FROM China, FOR WORLD. WE'LL JUST BE THE CARRIER OF THE GLASS!
