Feature
1. Width: 300mm-2200mm
2. Thickness: 4mm-30mm
3. Plies: 2-10
4. Top rubber: 1.5-8 bottom rubber: 0-4.5
5. Tensile Strength (N/mm2): From 8 to 24
6. Elongation at Break (%): From 300 to 450
Specifications

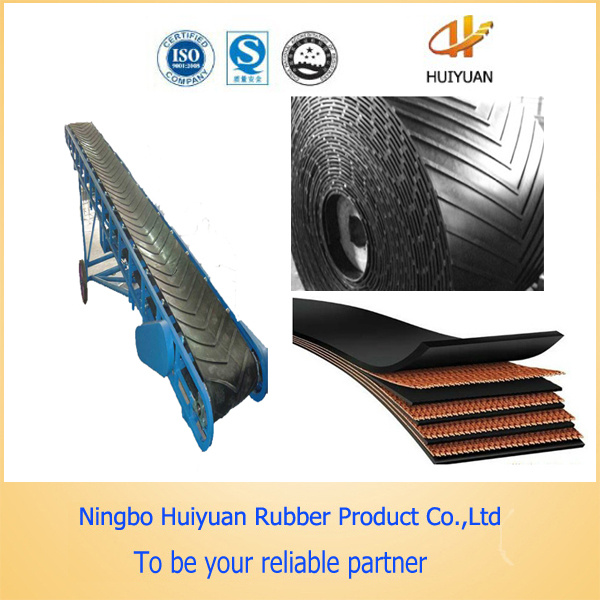

The carcass is EP fabric (Warp is Polyester and Weft is Polyamide). It has low elongation, high modulus and good throughability.
Construction:
EP Fabric Carcass (Warp is polyester and weft is polyamide)
Special rubber layer with good fabric adhesion properties (skimmed layer)
Cover rubber (special quality requirement)
Advantage:
Light in weight
High modulus
Impact resistant
Low elongation
Good flexibility & good throughability
Application:
Cement, Concrete Plants
Quarry, Gravel, Sand
Coal, Mining
Steel Industry, Heating and Power Station, Garbage Incineration Plants
Recycling, Compost Industry,
Mineral Processing Plants
Road Construction Machinery, etc
Fabric type | Fabric structure | Ply thickness
(mm/p) |
Ply Thickness
(mm/p) | (N/mm)
Strength series | (mm)
Cover thickness | Width
mm | Length
mm |
| Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Upper |
Polyester
(EP) | Polyester
(EP) | Polyamine
(P) | EP-80 | 0.6 | 160 | 240 | 320 | 400 | 480 | 1.5~12 | 0~4.5 | 400~2500 | ≤300 |
| EP-100 | 0.75 | 200 | 300 | 400 | 500 | 600 |
| EP-150 | 1 | 300 | 450 | 600 | 750 | 900 | 400~2500 |
| EP-200 | 1.1 | 400 | 600 | 800 | 1000 | 1200 |
| EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 |
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | 800~2500 |
| EP-350 | 1.45 |
| 1050 | 1400 | 1750 | 2100 | 1000~2500 |
| EP-400 | 1.55 |
|
| 1600 | 2000 | 2400 |
| EP-500 | 1.7 |
|
| 2000 | 2500 | 3000 |
Conver properties of conveyor belts
| Type |
Mpa ≥
| Mpa ≥ | mm2 ≤ | Change Rate of tensile strengh and elong after aging |
| % |
