| Supplier: | Shenyang Longshou Electronic Instrument Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

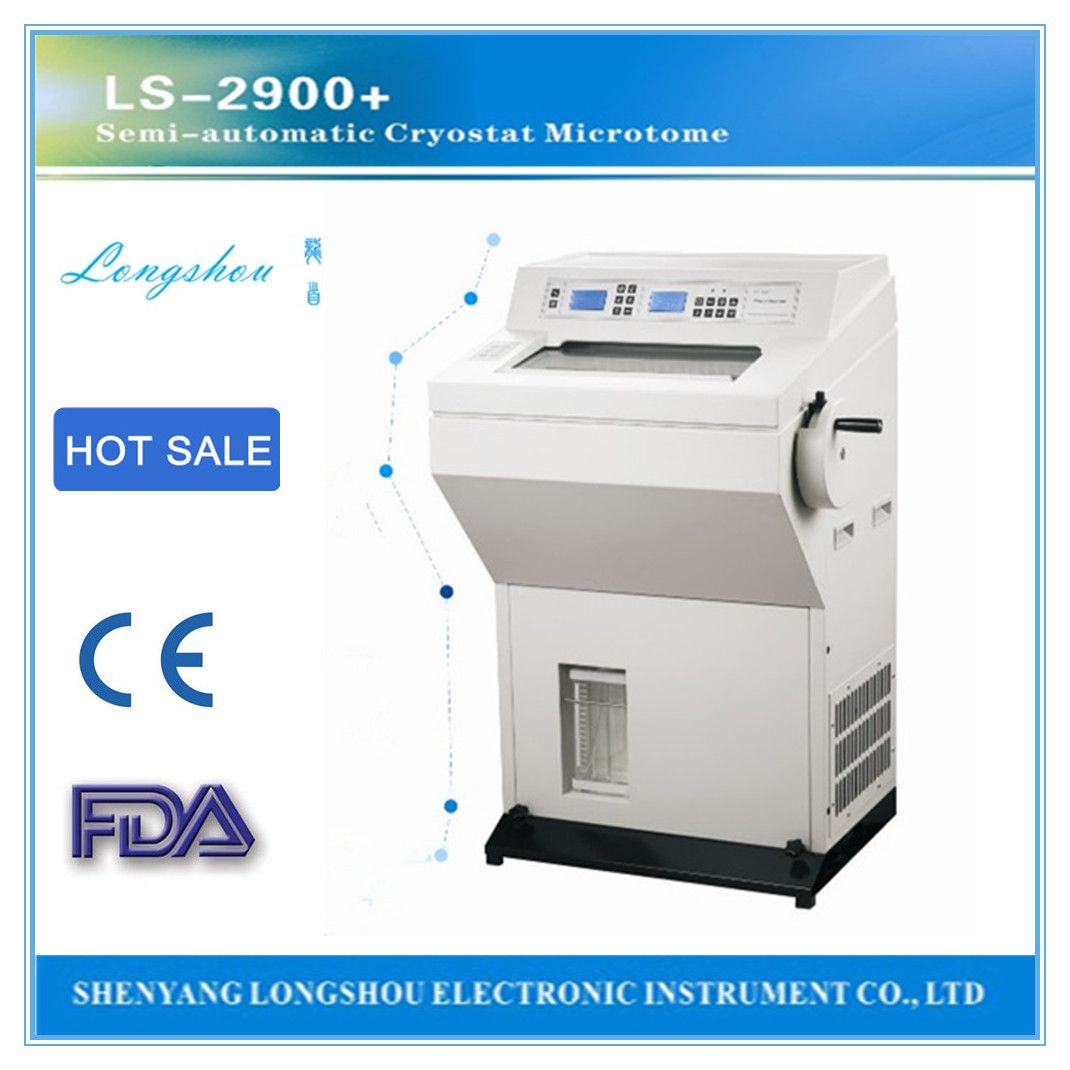

| Prod Model: | LS-2900+ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specimen Vertical Stroke: | 70mm |
| Specimen Horizontal Stroke: | 28 Mm |
| Weight: | About 35kg |
| Max Specimen Size: | 60mm*50mm*40mm |
| Dimensions (W*L*H): | 560*470*320mm |
| Type: | Separation Type |
| Freezing chamber temperature range | -30ºC~-10ºC |
| Freezing shelf minimum temperature | -45ºC |
| Time freezing shelf need to cool down to -30ºC | 60 minutes |
| Minimum temperature of heat extractor on freezing shelf | -55ºC |
| Heat extractor working time | 15 minutes |
| Section thickness range | 1μm~80μm adjustable; 1μm~20μm, in 1μm increment; 20μm~40μm, in 2μm increment; 40μm~80μm, in 5μm increment; |
| Trimming thickness range | 10μm~400μm adjustable; 10μm~50μm, in 5μm increment; 50μm~100μm, in 10μm increment; 100μm~400μm, in 50μm increment; |
| Specimen vertical stroke | 60mm |
| Specimen horizontal stroke | 20mm |
| Maximum specimen size | 35mm×35mm |
| Retraction range | 0μm~80μm adjustable; in 5μm increment. |
| Rough feeding speed | 0.7mm/s or 0.35mm/s |
| Voltage and frequency | AC220V±10%, 50Hz(Standard), or AC110V±10%,60Hz |
| Power | 650W |
| Dimensions (W×D×H) | 660×640×1130mm |
| Weight | 125kg |
