Product Specifications
| Prod Model: |
LS-6150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specimen Vertical Stroke: |
59mm |
| Specimen Horizontal Stroke: |
25mm |
| Maximum Specimen Size: |
55mm * 55mm |
| Specimen Fast Moving Speed: |
0.7mm/S |
| Dimensions (W*L*H): |
650(780mm Including Handwheel)*700*1152mm |
| Specimen Capacity: |
20 |
| Type: |
Separation Type |
Product Description

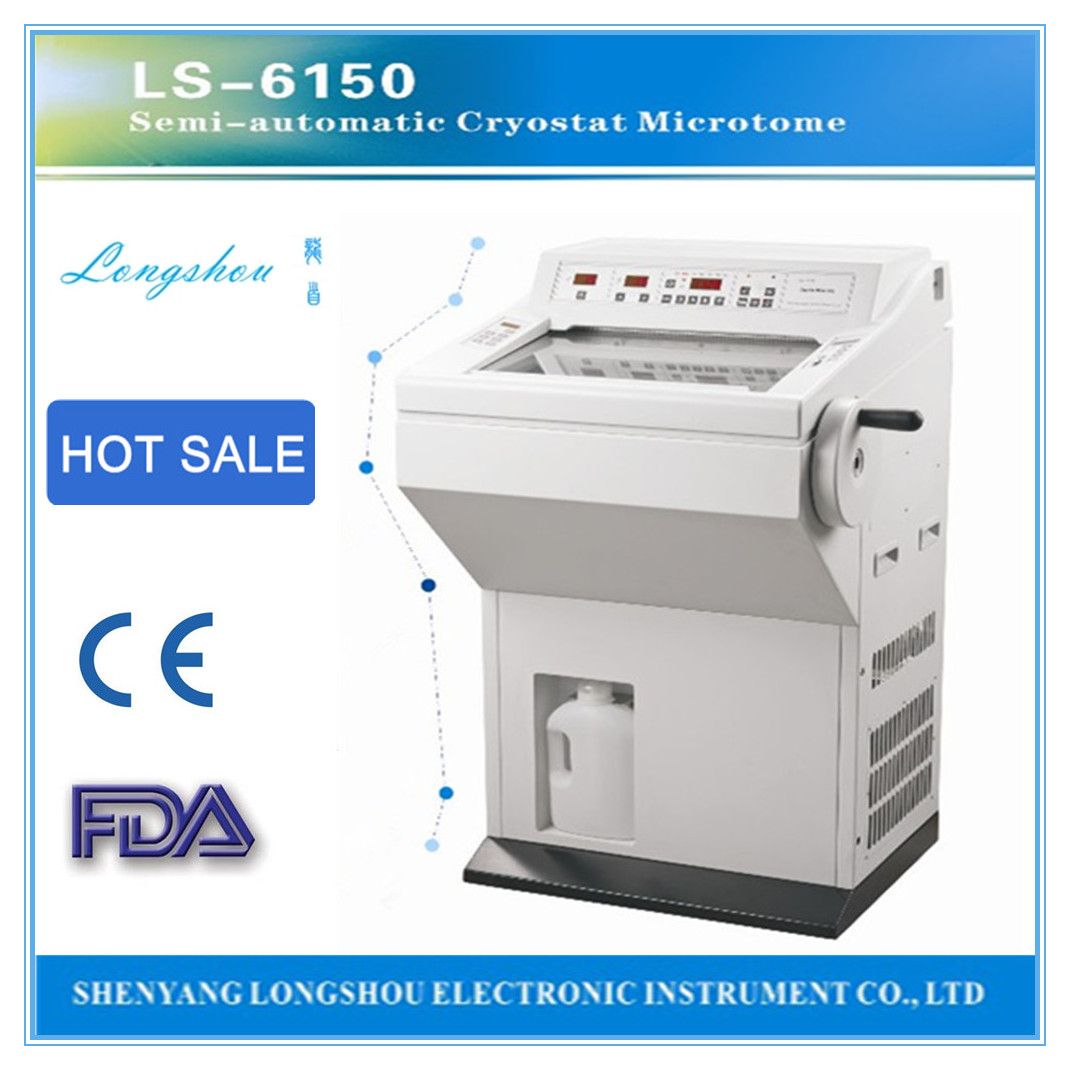

LS-6150 semi-auto freezing microtome
Fast, steady refrigerant system
1----Cryostat adopts a DANFOSS compressor to cool down freezing chamber by R404A environment friendly fluoride-free refrigerant.
It takes 120 minutes to reach appropriate temperature for slicing in when first starting up.
2----Vacuum glass window with transparent electronic heating resistance on top layer enable to prevent fog and cold air leakage.
3----Ergonomical one-step Injection Molded housing(including fixing bottom studs) results in appropriate structure, attractive appearance and convenient operation, and enables to avoid resonance and lower the frictional resistance.
4----Stainless steel built-in tank and waste tray make operation and clearance convenient.
5----Complete machine designed easier assemble and dissemble to be easy operation and repair.
| Freezing chamber temperature range | -35ºC~-10ºC |
| Freezing shelf minimum temperature | -45ºC |
| Minimum temperature of heat extractors on freezing shelf | -60ºC |
| Number of heat extractors | 2 |
| Section thickness range |
1μm~90μm adjustable;
1μm~20μm, in 1μm increment;
20μm~40μm, in 2μm increment;
40μm~90μm, in 5μm increment;
|
| Trimming thickness range |
10μm~400μm adjustable;
10μm~50μm, in 5μm increment;
50μm~100μm, in 10μm increment;
100μm~400μm, in 50μm increment;
|
| Retraction | 20μm, enable to shut down |
| Specimen vertical stroke | 60mm |
| Specimen horizontal stroke | 20mm |
| Maximum specimen size | 55mm * 55mm |
| Specimen clamp's max adjustable angle | 8° |
| Voltage and frequency | AC220V±10%, 50Hz(Standard),
or AC110V±10%,60Hz |
| Power | 650W |
| Specimen capacity | 18 |
| Refrigerant | R404A,300g±10g |
| Dimensions (W×D×H) | 660(790mm including handwheel)×640×1130mm |
| Weight | 140kg |
Packaging & Shipping
China LongShou Cryostat Microtome Price each unit packed :
Standard export plywood case, free-fumigation!
Accessories:
Tool bag, operation manual knife with box!
Port:
Dalian/Shanghai
Our Services
We provide OEM and are able to print customer's logo on the surface.
Changing accessories in one year after purchase is free of charge.
Shenyang Longshou Electronic Instrument Co., Ltd. was founded in 1995, which was one of the earliest high-tech companies that focus on manufacturing pathological instruments in China. Being people oriented, we attach great importance to customer satisfaction and the quality of products. Thus, we built our team including experts and technicians of mechanism, computer and electric and sold large amount of products to a lot of customers in the world with attractive quality, price and also compliments from user. We dare say that our company is the best and largest manufacturer, supplier and contractor.
From the time we start business, we spent large expenditure to research and development in order to benefit our partners by advanced technology instead of cheap material. At present, we hold independent intellectual property rights of all our products and patents of many technologies, too, which make characters of our products internationally advanced and price very competitive.
We don't take products be sold as an end of order, instead we provide professional ,considerate and quick-respond service after sale to ensure customers normal use, including installation instructions, operation guidance, or troubleshooting.
We created our well-known brand "LS" and products with it being sold all over the world. We win global distributors' good graces by advanced culture concept, liable quality, lower price, considerate service and good corporate reputation..
