Product Specifications
| Prod Model: |
#NY-IN-247 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Commodity: |
Clock Circuit PCB Board |
| Item No.: |
#Ny-in-247 |
| Base Material/Laminate Details: |
1.6mm Fr-4(Tg135) |
| Board Size: |
123mm*65mm/PC |
| Soldermask Details: |
One Sided Green |
| Silkscreen/Legend: |
White |
| Surface Finishing/Treatment: |
Flash Gold/Plated Gold |
| Coppperweight: |
1oz |
| Application: |
Colock |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
Product Description

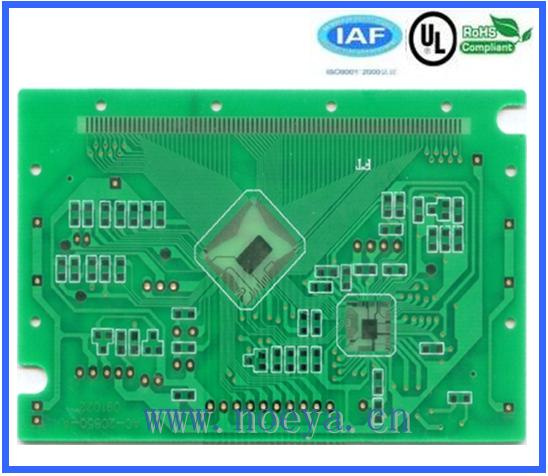

Clock circuit PCB board:
Technical details:
1)layer count: 2 layer
2)material details: 1.6mm FR-1(94V0)
3)Min. Board thickness:
0.4mm for 2 layers and 4 layers
0.8mm for 6 layers
4)available finished copper weight: 0.5-4oz,
Available board thickness: 0.4mm-3.2mm
Available surface finishing: HASL, OSP, IMMERSION GOLD, gold plated, flash gold, ENIG, immersion Tin
Available soldermask: White, black, green, blue, yellow(orange), RED
5)Max board size: 600mm*600mm
6)FLASH GOLD finishing
7)Min line width/spacing: 0.3mm
Min, Hole size(aperture): 0.25mm, hole tolerance: +/-0.05mm
Min. Solder bridge: 0.08mm, Dimension tolerance: +/-0.1mm
6)Outline/profile/contour: CNC ROUTING, Milling
7)Lead time: 5 days for prototypes, 7-9 days for mass production
8)Certification: RoHS&UL
9)application: Clock
Board size details and panelized details:
3)circuit characteristic: Simple; Board size: 123mm*65mm/PC
Panel details: NONE; Breaking off strips: NONE
Advantages:
1) Best quality and attractive price.
2)Best on time shipping
3)with 100%E-test
4)Customer service
5)Instant quote
6)No minimum lot Requirements
7)Ultra modern manufacturing facility
Main markets:
Iran, Egypt, South Africa, Canada, Ukraine
Hot-selling time:
Hot selling in Aug and Sep. In 2011 and Jan. And Feb. In 2012
Capacity:
8, 000sqm/month for 6 layers PCB; 10, 000sqm/month for 4 layers PCB; 12, 000sqm/month for 2 layers PCB; 15, 000sqm/month for 1 layer PCB
|
Bare PCB Delivery Time |
|
Layer |
Prototype |
Mass production (Above 30(Square) |
|
1L |
Quick Sample: 12Hours Usual time: 1-2days |
5-7days |
|
2L |
Quick Sample: 24Hours Usual time: 3-4days |
7-9days |
|
4L |
Quick Sample: 48Hours Usual time: 5-7days |
9-10days |
|
6L |
Quick Sample: 72Hours Usual time: 6-8days |
10-12days |
|
1. Eight years of experience in PCB factory |
|
2. UL, SGS, ROHS, ISO9001, TS16949, IPC-600G class 2 and IPC-6012B class 2. |
|
3. Fast delivery |
|
4. Low price high qualtiy PCB |
|
5. Sample order and small qty are acceptable for us! |
|
6. ICT and testing instruction test |
|
7.100% E-TEST Before shipment |
|
8. CNC package for bare PCB (Vacuum+desiccant for inner package) |
Shenzhen Noeya Technology Co., Ltd. is a professional high-tech PCB manufacturer, which was built in 2003. Over years, our scale has been expanding: More than 300 workers, more than 1, 500m² For day-output, more than 500, 000m² For year-output.
Our main products mainly applied FR-4(TG135-170), CEM-1 and FR-1(94V0). The finished PCB boards including Single and double layer PCB, 4 layers PCB, 6 layer and 8 layer multilayer PCB, High Frequency PCB(HFPCB), HDI PCB, High density PCB with blind and buried-vias. Especially we are strong in single layer, double layer, 4 layers and 6 layers PCB board, which are widely applied in LED lightings, computers, Telecommunications, Auto, digital, home appliance and consumer electronics. Selling well both at home and abroad.
We've got a contingent of producing and sales team. With advanced processed devices and checking and testing technology. We are cooperating with much domestic and abroad branded business, like Gree, FOSS, BYD Auto and Gospell etc. We abide by the national laws and regulations, pay emphasis on environment and environmental production. We have already got ISO9001: 2000. Our products quality can meet IPC-A-600F \IPC-D-600G, MIL-STD-105D LEVEL II \and UL STANDARD. With strictly quality checking and strictly following-up the goods, supply exact lead time and quality products.
We will take a series of special training to improve our staff's professional skills and service quality and speed so that our management system can be enter into normalization and informationization.
