This laser engraving machine is helilaser factory high standared producs. Hot sale on domestic and abroad. Welcome friends from all over the world vist our factory for check, guidance, and negotiation for more details.

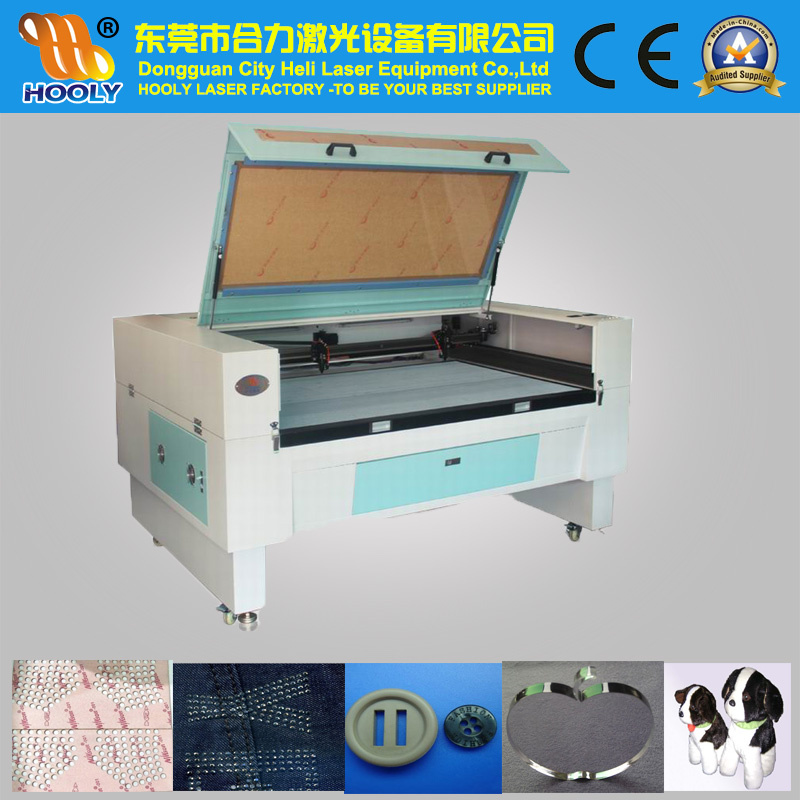

Heilaser laser engraving cutting machine
Advantage Features:
-Opened worktable, widely cutting;
-USA imported Three-phase stepper motor, faster speed, smooth cutting and small light spot;
-Singapore optical system, powerful security;
-Imported Korea linear guide rail, higher precision
1. Can open the two side cover, easy maintenance
2. Platform can be free adjustment, more flexible
3. Slope type dustbin, easy to clean the waste
4. Cold water chiller can be embedded, save the space
5. Direct-type under suction, with excellent suction effect
6. Advanced optical path adjustment device, makes the optical adjustment more easy and accurate
Detail Configutration:
USA step motor and deriving system 1PC or server motor
Heli high standared CO2 glass laser tube 1PC40W/65W/80W/100W/120W/130W/150W
Korea liner guide way 1PC or inside guide way
Singapore optical system 1PC
Dual transmission of USB2.0 1PC
High strength stainless honey comb plateform1PC
Air pump1PC
Industrial chiller1pcor big industrial chiller
Exhaust blower1PC
Other optional configuration with: Rotary device, up and down device, Camera positon, Auto fee device etc.
Suitable materials and industry
This machine is applicable to cut or engraving the Wood products, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, crystal, jade, bamboo products and most of the nonmetallic material. Is suitable for the clothing embroidery, leather, bamboo and wood products, electronic appliances, models, crafts, advertising, packaging and printing, paper products and other industries
Processing effect is fine, smooth cutting edge, no burn, no polishing, clean, no noise, no deformation, high speed, high efficiency and high precision
Our other series laser machine
A. HL- C series laser cutting machine
B HL- E series laser engraving machine
C. HL- P series Camera auto position laser cutting and engraving machine
D. HL -T series"Double head" laser cutting engraving machine
E. HL -M series auto feed large area laser cutting engraving machine
F. HL - Mini series desktop laser cutting engraving machine
G. HL - Double edge bevelment thick wood material laser cutting engraving machine
H, CO2 nonmetal laser marking machine, RF non metal laser marking machine, DP semiconductor laser marking machine. YAG laser marking machine. Fiber laser marking machine.
. Before sale service
1, Know the detail processing of the user
2, Supply free test for cutting user's material
3, Provide detail processing solution and resonable price list
After sale service and Guaranty.
1, 24 hours ready to serve the user. Give the timely, correct FAQ solution
2, Machine Guratty for 1 year. Laser tube Guranty for 6months
3, Engineer is avalible to go abroad for machine's maintenance
Helilaser factory is proffessional in produce the laser machine for many years. With Own brand "HOOLY". Own metal workshop to produce and design the machine body. And all machine approved By "CE"certification. Can provide the machine with high quality, competitive price, fattest delivery And reliable after service.
Warmly Contact:
Sincerely looking for Agents or distributor from all over the world
Contact: Melody LV (Manager)
Mob: 8613712240986
|
Machine model |
HL-640T HL-960T HL-1080T HL-1280T HL-1390T HL-1480T HL-1680T HL-1810T |
|
Laser type |
Domesticco2 laser tube |
|
Laser power |
45W/65w/70w/80w |
|
Engraving area |
600mm*400mm 900*600mm 1000*800 mm 1200*800 mm 1300*900mm 1400*800mm 1600*800mm 1800*1000mm |
|
Engraving speeds |
0-1500mm/s |
|
Cutting speeds |
0-800mm/s |
|
Repeating locating |
±0.05mm |
|
Moving system |
CNC controlling units |
|
Cooling mode |
water-cooling and protection system |
|
Working voltage |
220±10% 50HZ |
|
Whole power |
1250w |
|
Operating temperature |
0'C-45'C |
|
Operating humidity |
5%-95% |
|
Controlling software |
original Helilaser software |
|
Graphic format supported |
BMP PLT AI DXF DST |
|
Size |
1300*1050*1050 (depends on machine) |
|
Gross weight |
170kg/200kg/230 kg/260kg/270 kg/290kg/310kg/320 kg/360kg |
Dongguan City Heli Laser Equipment Co., Ltd is one of the earliest enterprises specialized in manufacturing the laser cutting engraving marking machines. Located in the famous Economic development zones of the Pearl River Delta in China, With the delta's advanced light industrial machinery, electrical technology and the talents advantages. We got high speed transformation in the laser industrialization fields. We
Have our own metal workshop to design and produce the machine body, with CE certification and with own brand Hooly. In order to improve production. We have also established a Branch Factory in Anshan City.
We main produce fabric Laser cutting machine, acrylic Laser cutting engraving machine, leather laser cutter, wood laser engraver, metal Laser marker, Fiber laser marking machine and supply laser cutting machine spare parts such as laser tube, laser lens, laser power etc.
We have both domestic sales department and foreign trading department. And also a very strong technology team which includes IT engineers and machine designing engineers. After the machine sold to customers we have a mantanance team to do after sale service.
We have many offices in China mainland, and we also have exported many machines to abroad, such as Italy, Russia, Brazil, Australia, Mexican, Morocco, Colombia, Uruguay, South Africa, Spain, Romania, Vietnam, Thailand, Cambodia etc. We sincerely hope agents from all over the world to join us, we believe with the qulitied products and best service which gains good reputation from customers and we are ready to grow together with customers.
Remark: HELI (HK) TECHNOLOGY INDUSTRY Co., Limited is Our Hong Kong Office. Where Dedicated to Charge Foreign Exchange Receipts and Disbursements.
Our branch Factory: Anshan Heli Laser Equipment Co., Ltd
