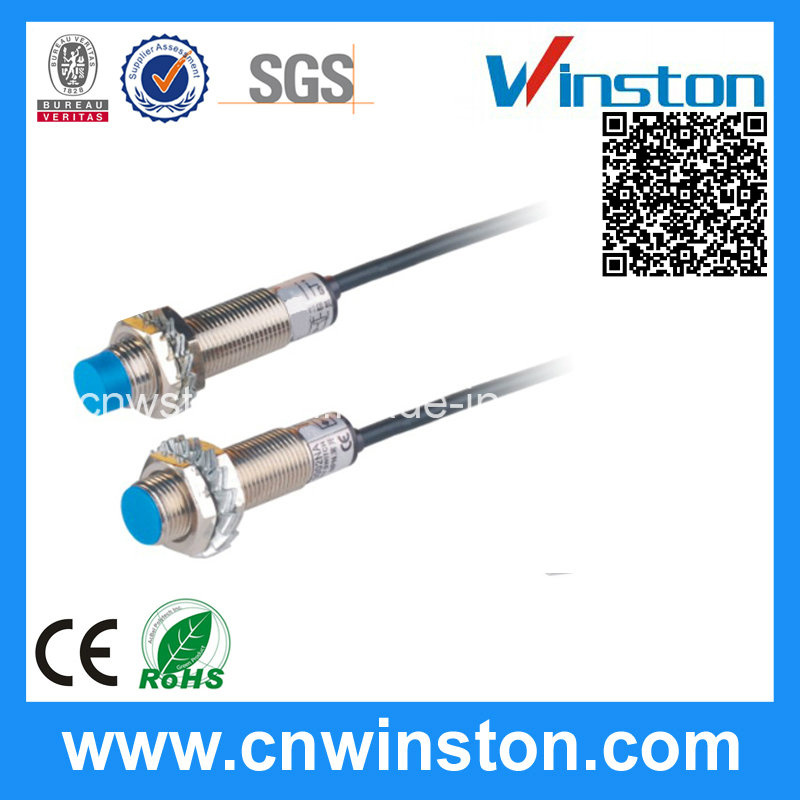

Product Specifications
| Prod Model: |
CM12 |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Antistop: |
Proximity Sensor Switch |
| Workmanship: |
The Exquisite German Technology |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Capacitance Proximity Switch |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description
Product Description:
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection
Long service life
Technique parameter:
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;H: High temp resistance; R: Ring type)
Working principle of capacitance proximity switch
| Flush | Detection distance | 0-2mm |
| DC10-30V | NPN | NO | CM12-3002NA |
| NC | CM12-3002NB |
| NO+NC | CM12-3002NC |
| PNP | NO | CM12-3002PA |
| NC | CM12-3002PB |
| NO+NC | CM12-3002PC |
| AC90~250V | two wire system | NO | CM12-3002LA |
| NC | CM12-3002LB |
| SCR Control label silicon | NO | CM12-2002A |
| NC | CM12-2002B |
| NO+NC | CM12-2002C |
| Control output | DC | 200mA |
| SCR/Relay | 300mA |
| Output voltage drop DC/AC | DC<3V AC<10V |
| Consumption current | DC<15mA AC<10mA |
| Detected object | Conductor and Directric Body |
| Repeated precision | 0.05 |
| DC/AC Response frequency | 200Hz/25Hz |
| Working environment temperature | -25ºC~75ºC |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IEC standard IP65 |
| Altemative model at home and abroad | |
Why choose us?
1.Professional manufacture
2.With complete varieties
3.Accept OEM
4.Considerate in place of after-sales service
Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.
Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.
We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.
Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
