Product Specifications
| Prod Model: |
CN101A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Suntree/OEM |
| Model Number: |
Cn101A |
| Supply Voltage: |
12/24VDC,24/110/220/380VAC |
| Operating Voltage: |
90%~110% of Rated Supply Voltage |
| Power Expend: |
DC1.0W AC1.0va |
| Control Output: |
16A 220VAC |
| Dielectric Strength: |
Bcc1500VAC Boc1000VAC |
| Operating Temperature: |
-10°c~50°c |
| Huminity: |
35%~85% |
| Life: |
Mech:107 Elec:103 |
| Type: |
Timer |
| Usage: |
Timer Switch |
| Function: |
Addition Counter |
| Theory: |
Digital |
| Carry Mode: |
Synchronous Counter |
| Carry Base: |
Module-n Synchronous Counter |
| Mechanism: |
Electronic |
Product Description

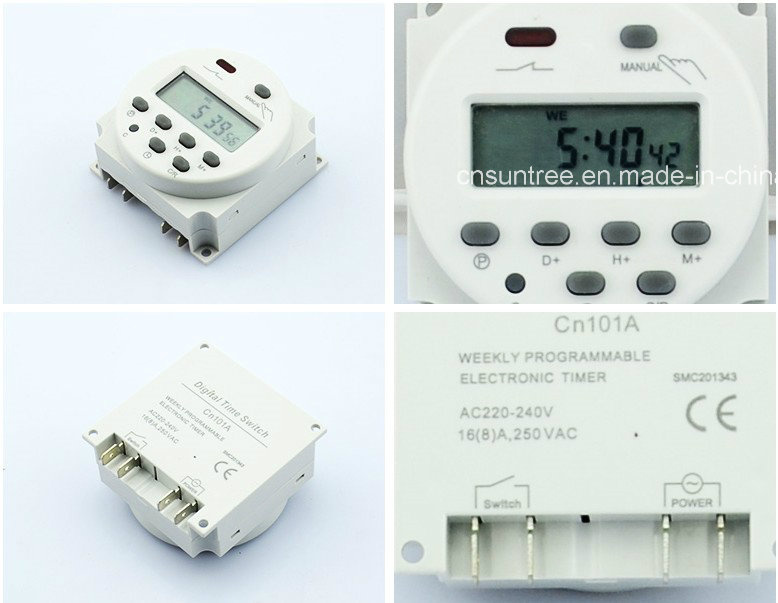

CN101A 12V digital timer switch digital countdown timer countdown timer
DIN Rail Installation
Advanced pre-setting one week before
Digital electronic time switch with daily programs
Repeat programs with 16 on/off setting and manual over-ride
Lithium battery power reserve
Auto time error correction -60--+60sec,weekly
TECHNICAL DATA
Voltage rating: AC 220V 50/60Hz
Voltage limit: AC 180V~250V
Hysteresis: 1 sec/day (25oC)
ON/OFF operation:17 ON & 17OFF
Power consumption:2VA(max)
Display: LCD
Service life: Mechancally 107
Electrically 105
Minimum interval:1 minute
Weight: approx 40g
Voltage:12V, 24V, 36V, 48V, 110V;220V
Count down:1 sec-99 min 56 sec
Pulse:1 sec-59 min 59 sec
Load capacity: resistive load:16A/250V AC
Lagging load:10A/250Vac
lamp load:2000W
Switching contact:1 changeover switch
Power reserve:3 years (Lithium battery)
Ambient temperature: -10~+40oC
Ambient humidity: 35~85%RH
I. Function and Application light time switch
This light time switch product can automatically switch on and switch off
various kinds of electric equipments according to the fixed time.
It is widely used in all electrical equipments and household appliances
where needs to be controlled. Such as street lamps, neon lights,
advertisement board lights,production equipments, broadcasting & TV
equipments and ect.,
II.Technical Specifications light time switch
| Voltage Range | 12V-220V 50Hz light time switch |
| Voltage scope | 85%~110% |
| Capacitance Resistance Load | 16A |
| Consumed power | <5VA |
| Timing Control Range | 1min~168h |
| Timing error | <±2s/day(25°C±1°C) |
| Temperature | -10°C~+50°C |
| Relative Humidity | <95% |
| Dimension | 120×72×50mm |
| Weight | 210g |
